NAVIGATION & FRONT MONITOR DISPLAY

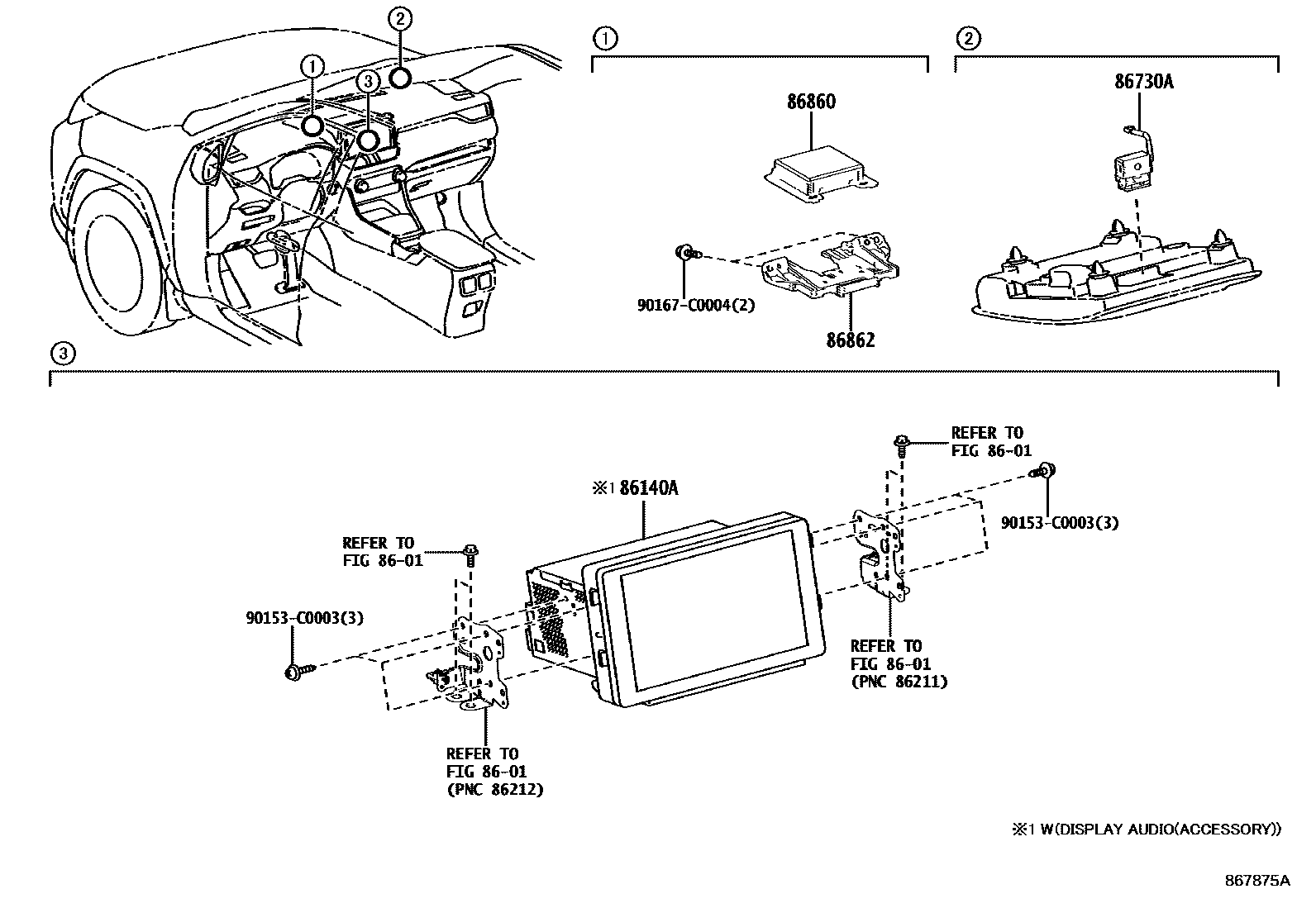

Parts diagram
8601
86140ARECEIVER ASSY, RADIO & DISPLAY
main86100-0R120i202304-202306
DESAY
sub86100-0R121
main86100-0R121i202307-202404
DESAY
main86100-0R122i202405-202409
DESAY
main86100-0R180i202304-202306
DESAY,LEATHER PACKAGE
sub86100-0R181
main86100-0R180i202304-202306
DESAY
sub86100-0R181
main86100-0R180i202304-202306
DESAY,LEATHER PACKAGE(20TH ANNIVERSARY)
sub86100-0R181
main86100-0R181i202307-202404
DESAY
main86100-0R181i202307-202404
DESAY,LEATHER PACKAGE
main86100-0R181i202307-202404
DESAY,LEATHER PACKAGE(20TH ANNIVERSARY)
main86100-0R182i202405-202409
DESAY
main86100-0R182i202405-202409
DESAY,LEATHER PACKAGE
main86100-0R182i202405-202409
DESAY,LEATHER PACKAGE(20TH ANNIVERSARY)
main86100-0R192i202409
DESAY
main86100-0R192i202409
DESAY,LEATHER PACKAGE
main86100-0R192i202409
DESAY,FTRD INTERIOR PKG HI
main86100-0R300i202409
DESAY
main86140-0R510i202104-202204
DESAY
sub86140-0R511
main86140-0R511i202204-202303
DESAY
main86140-0R550i202104-202106
DENSO TEN
sub86140-0R551
main86140-0R551i202107-202111
DENSO TEN
sub86140-0R552
main86140-0R552i202112-202208
DENSO TEN
sub86140-0R553
main86140-0R553i202209-202210
DENSO TEN
sub86140-0R554
main86140-0R554i202211-202303
DENSO TEN
main86140-0R600i202304-202306
HANGSHENG
sub86140-0R601
main86140-0R601i202307-202409
HANGSHENG
main86140-0R671i202409
HANGSHENG
86730AMICROPHONE ASSY, TELEPHONE
main86730-06060i202007-202303
main86730-0E080i202304-202409
main86730-75010i¥7,100201911-202007
86860ANTENNA ASSY, NAVIGATION
main86880-02050i201911-202303
main86880-02100i202304-202409
86862BRACKET, NAVIGATION ANTENNA
main86862-0E030i202407-202409
main86862-42010i¥940201911-202407
90153C0003
main90153-C0003
90167C0004
main90167-C0004

7 parts on this diagram · 3 diagrams in section
