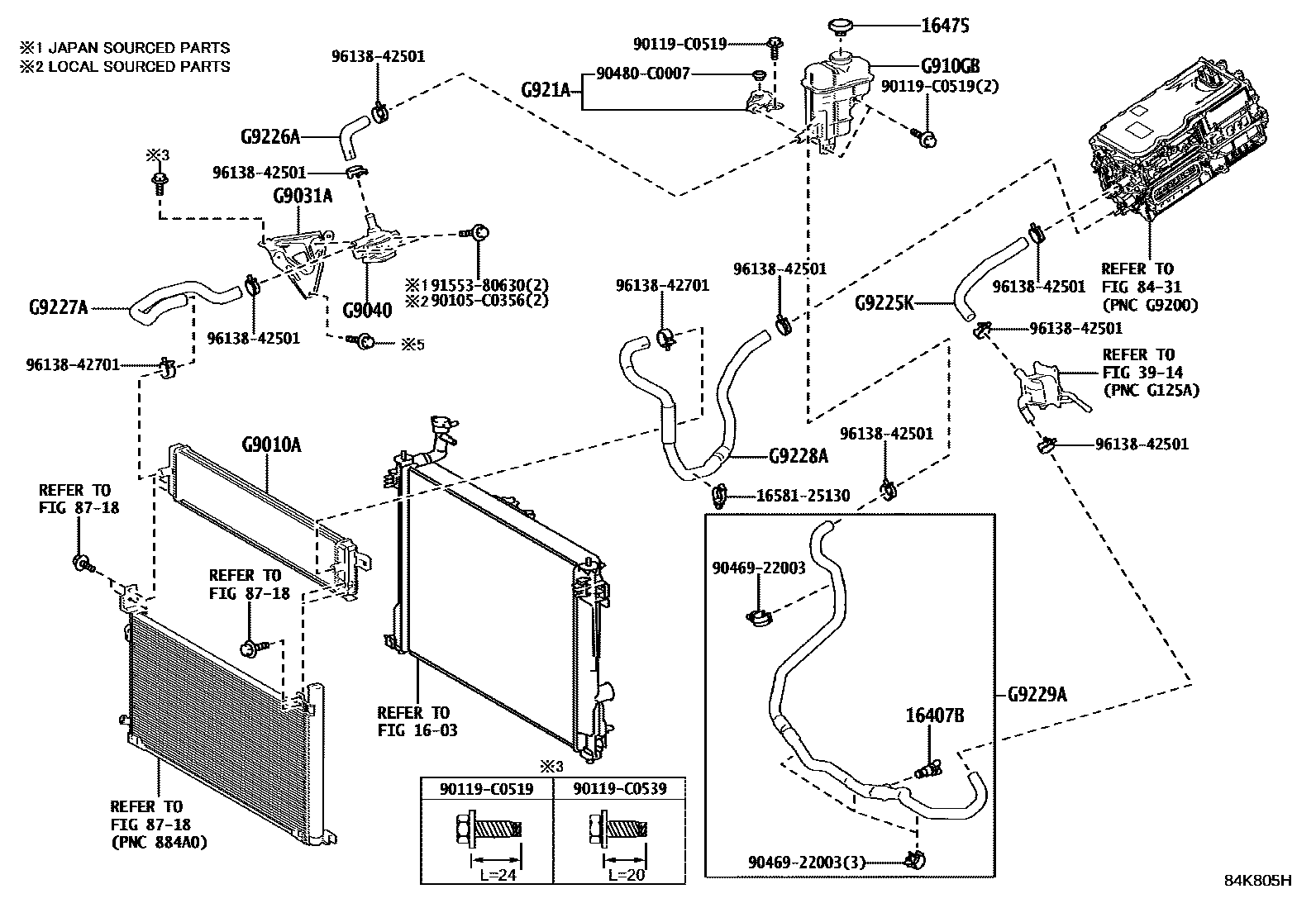

INVERTER COOLING

0001 1 0002 1

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iA25..AXAH5#201911-202111

16475CAP, RESERVE TANK

main16475-0T081iA25..AXAL5#201911-202409

LOCAL SOURCED PARTS

main16475-28140iA25..AXAL5#201911-202409

JAPAN SOURCED PARTS

3914

8431

8718

G9010ARADIATOR ASSY

mainG901042030iAXAH5#201911-202111

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG91410E070iAXAH5#202111-202409

mainG91410R050iAXAH5#201911-202111

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904008010iAXAL5#202409

mainG904008010iAXAL5#202304-202409

(L)

mainG90400R030iAXAH5#202111-202303

LOCAL SOURCED PARTS

mainG90400R080iAXAH5#202012-202104

LOCAL SOURCED PARTS

mainG90400R090iAXAH5#202104-202111

LOCAL SOURCED PARTS

mainG904042010iAXAH5#202012-202111

JAPAN SOURCED PARTS

mainG904042010iAXAH5#201911-202012

mainG904042020iAXAH5#202111-202303

JAPAN SOURCED PARTS

mainG904048050iAXAL5#202304-202409

(J)

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G0R020iAXAL5#201911-202409

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H20R020iAXAL5#201911-202409

G9225KHOSE, INVERTER COOLING, NO.1

mainG92250R030iAXAL5#201911-202409

G9226AHOSE, INVERTER COOLING, NO.2

mainG92260R030iAXAH5#201911-202111

mainG92260R050iAXAL5#202111-202409

G9227AHOSE, INVERTER COOLING, NO.3

mainG92270E040iAXAH5#202111-202409

mainG92270R030iAXAH5#201911-202111

G9228AHOSE, INVERTER COOLING, NO.4

mainG92280E040iAXAL5#202111-202409

mainG92280R030iAXAH5#201911-202111

G9229AHOSE, INVERTER COOLING, NO.5

mainG92290E040iAXAL5#202111-202409

mainG92290R030iAXAH5#201911-202111

1658125130CLAMP, HOSE(FOR WATER HOSE)

main16581-25130

90105C0356

main90105-C0356

90119C0519

main90119-C0519

90119C0539

main90119-C0539

9046922003

main90469-22003

90480C0007

main90480-C0007

9155380630

main91553-80630

9613842501

main96138-42501

9613842701

main96138-42701

25 parts on this diagram · 2 diagrams in section
