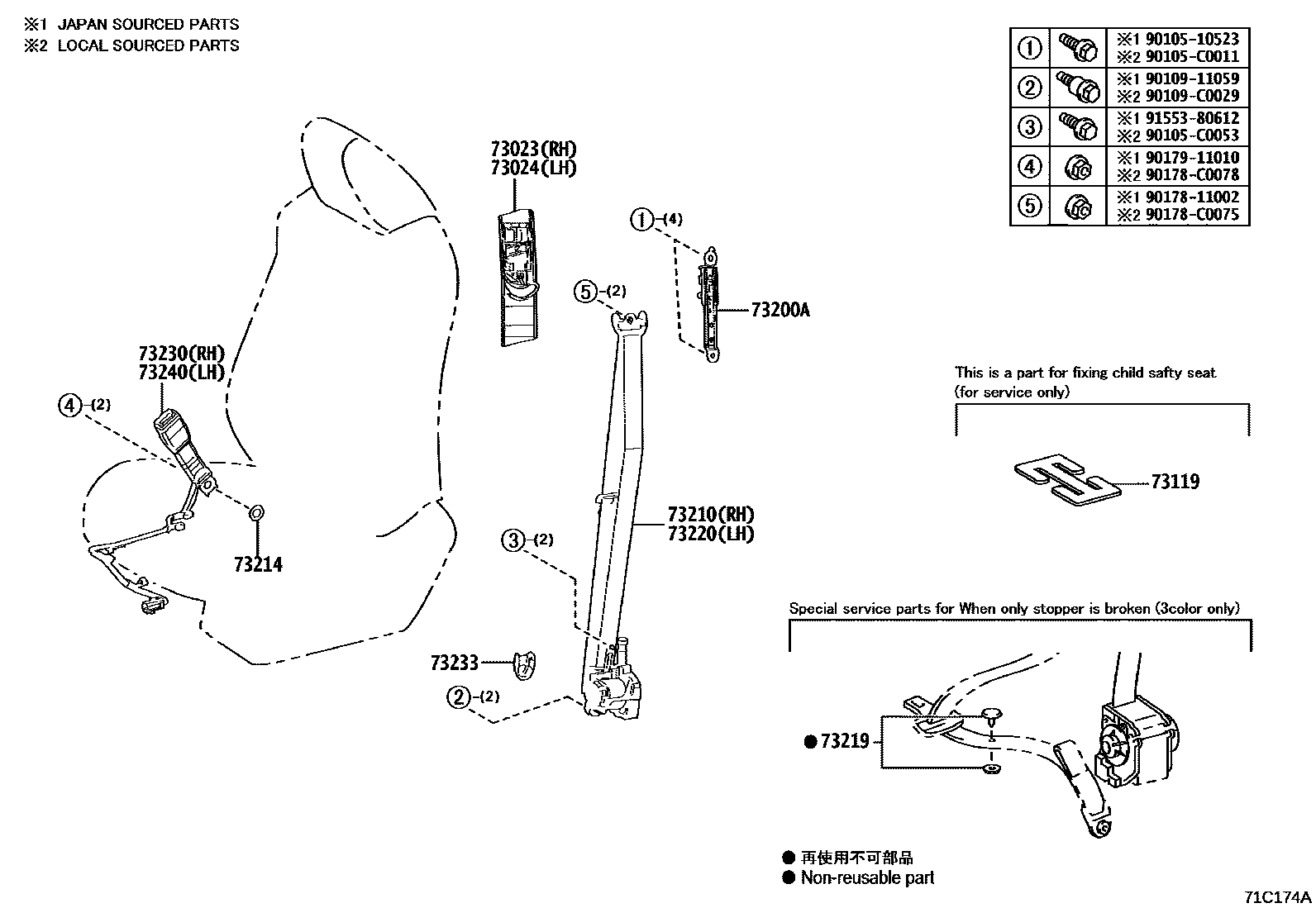

SEAT BELT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02160-B0iAXAL5#,MXAA52..M201911-202409

LT.GRAY,TRIM2#,4#

main73023-02160-B0iMXAA54;AXAL5#,MXAA52..G,X202409

LT.GRAY,TRIM2#,4#,8#

main73023-02160-B0iMXAA52..X201911-202409

LT.GRAY,TRIM1#,2#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02160-B0iAXAL5#,MXAA5#..G,M201911-202409

LT.GRAY,TRIM2#,4#

main73024-02160-B0iAXAL5#,MXAA52..M202409

LT.GRAY,TRIM2#,4#,8#

main73024-02160-B0iMXAA52..X201911-202409

LT.GRAY,TRIM1#,2#,4#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iAXAL5#,MXAA5#201911-202409

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0G020iAXAL5#,MXAA5#201911-202409

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02760-C2iMXAA52..X201911-202409

BLACK,TRIM1#,2#,4#

main73210-02760-C2iAXAL5#,MXAA52..M202409

BLACK,TRIM2#,4#,8#

main73210-02760-C2iAXAL5#,MXAA52..M201911-202409

BLACK,TRIM2#,4#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iAXAH5#,MXAA5#201911-202409

73219STOPPER, TONGUE PLATE

main73219-33010iAXAL5#,MXAA5#201911-202409

BLACK

main73219-33020iAXAL5#,MXAA5#201911-202409

GRAY

main73219-33030iAXAL5#,MXAA5#201911-202409

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02680-C2iMXAA52..X201911-202409

BLACK,TRIM2#,4#

main73220-02680-C2iMXAA52..X201911-202409

BLACK,TRIM1#,2#,4#

main73220-02680-C2iAXAL5#,MXAA52..M202409

BLACK,TRIM2#,4#,8#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0R190-C0iAXAL5#,MXAA52..M202409

BLACK,TRIM2#,4#,8#

main73230-0R190-C0iAXAL5#,MXAA52..M202304-202409

BLACK,TRIM2#,4#

main73230-0R190-C0iMXAA52..X202304-202409

BLACK,TRIM1#,2#,4#

main73230-0R270-C0iMXAA52..X201911-202303

BLACK,TRIM2#,4#

main73230-0R270-C0iMXAA52..X201911-202303

BLACK,TRIM1#,2#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0R030-C1iAXAL5#,MXAA52..M202409

BLACK,TRIM2#,4#,8#

main73233-0R030-C1iAXAL5#,MXAA52..M201911-202409

BLACK,TRIM2#,4#

main73233-0R030-C1iMXAA52..X201911-202409

BLACK,TRIM1#,2#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0R280-C0iMXAA52..X201911-202409

BLACK,TRIM2#,4#

main73230-0R290-C0iMXAA54;AXAL5#,MXAA52..G202409

BLACK,TRIM2#,4#

main73230-0R290-C0iAXAH5#,MXAA5#..G,M201911-202409

BLACK,TRIM1#,2#,4#

main73230-0R290-C0iMXAA54;AXAL5#,MXAA52..G202409

BLACK,TRIM2#,4#,8#

9010510523

main90105-10523

90105C0011

main90105-C0011

90105C0053

main90105-C0053

9010911059

main90109-11059

90109C0029

main90109-C0029

9017811002

main90178-11002

90178C0075

main90178-C0075

90178C0078

main90178-C0078

9017911010

main90179-11010

9155380612

main91553-80612

21 parts on this diagram · 2 diagrams in section
