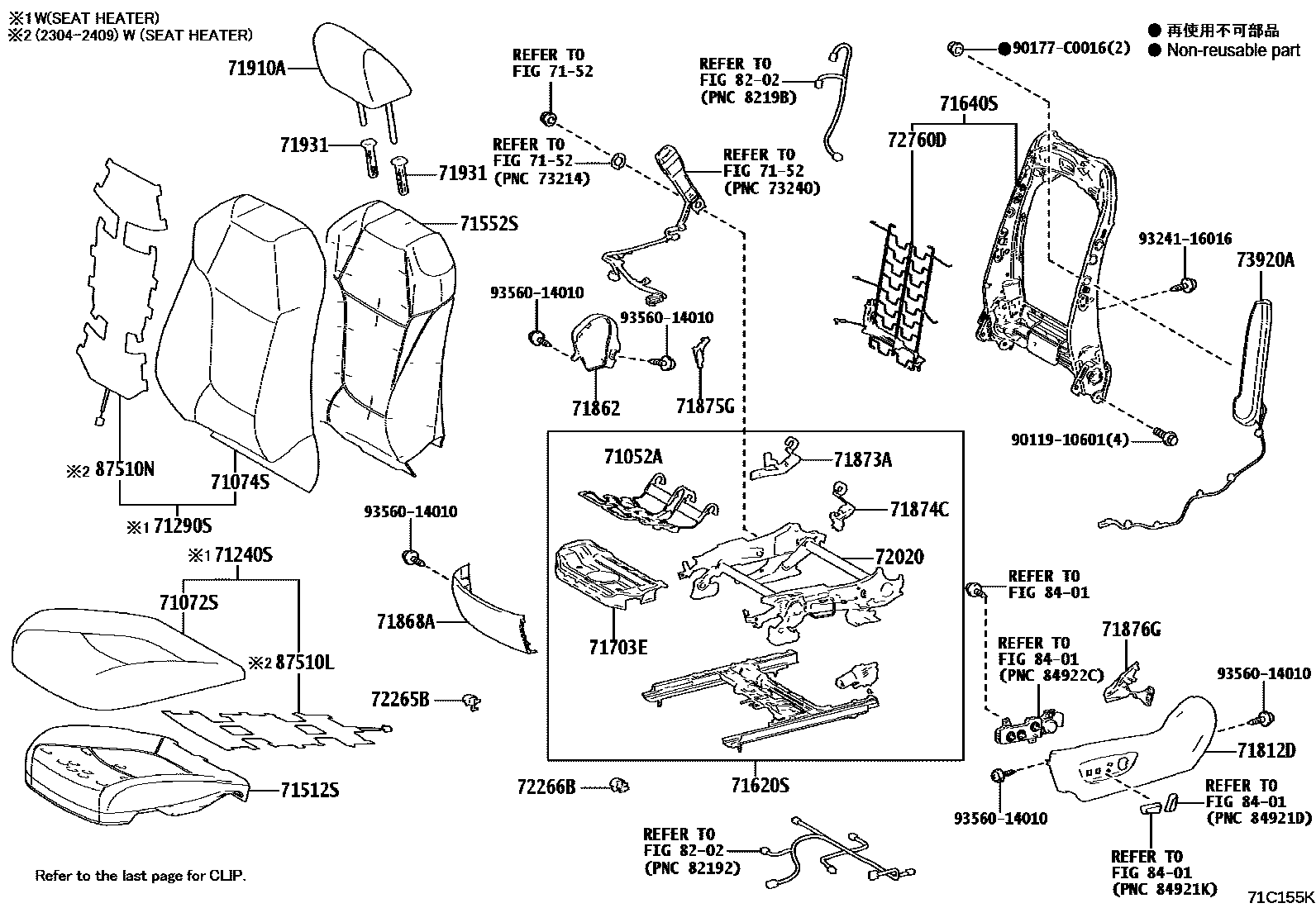

SEAT & SEAT TRACK

0001 1DRIVER SEAT(POWER SEAT) 0002 1DRIVER SEAT(MANUAL SEAT) 0003 1PASSENGER SEAT(MANUAL) 0004 1PASSENGER SEAT(POWER) 0005 1REAR SEAT 0006 1SEAT FITTING PARTS 0007 1CLIP

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-0R060iAXAL5#,MXAA5#201911-202409

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0R340-C5iMXAA52..X201911-202409

BLACK,TRIM2#

main71072-0R340-E3iMXAA52..X201911-202409

NEUTRAL BEIGE,TRIM4#

main71072-0R360-C6iMXAA54..G202304-202409

LEATHER PACKAGE(20TH ANNIVERSARY),BLACK,TRIM2#

main71072-0R360-C6iAXAL5#,MXAA5#..G202304-202409

BLACK,TRIM2#

main71072-0R360-C6iAXAL5#,MXAA5#..G202304-202409

FTRD PARTS,BLACK,TRIM2#

main71072-0R360-C6iAXAL5#,MXAA5#..G202304-202409

LEATHER PACKAGE,BLACK,TRIM2#

main71072-0R360-E5iMXAA52..M202304-202409

FTRD PARTS,NEUTRAL BEIGE,TRIM4#

main71072-0R360-E5iMXAA54..G202304-202409

NEUTRAL BEIGE,TRIM4#

main71072-0R360-E5iAXAL5#,MXAA52..M202304-202409

LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#

main71072-0R360-E5iMXAA52..M202304-202409

LEATHER PACKAGE(20TH ANNIVERSARY),NEUTRAL BEIGE,TRIM4#

main71072-0R460-B3iAXAH54..M201911-202303

NEUTRAL WARM GRAY,TRIM1#

main71072-0R460-B3iMXAA54..M201911-202303

LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL WARM GRAY,TRIM1#

main71072-0R460-C5iAXAL5#,MXAA5#..M202304-202409

LEATHER PACKAGE,BLACK,TRIM2#

main71072-0R460-C5iAXAH52,MXAA5#..M201911-202303

LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2#

main71072-0R460-C5iAXAH52,MXAA5#..M201911-202409

BLACK,TRIM2#

main71072-0R460-C5iAXAL5#,MXAA52..M202409

FTRD INTERIOR PKG HI,BLACK,TRIM2#

main71072-0R460-E3iAXAL5#,MXAA5#..M202304-202409

LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#

main71072-0R460-E3iMXAA54..M201911-202409

NEUTRAL BEIGE,TRIM4#

main71072-0R460-E3iMXAA54..M201911-202303

LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4#

main71072-0R901-B0iAXAH54..M201911-202303

TRIM1#

main71072-0R901-B0iAXAH5#,MXAA5#..G201911-202303

FTRD PARTS,TRIM1#

main71072-0R901-B0iAXAH54..M202005-202303

LEATHER PACKAGE&SEAT HEATER-WITH,TRIM1#

main71072-0R901-C0iAXAH5#,MXAA5#..G201911-202303

BLACK,TRIM2#

main71072-0R901-C0iAXAH52,MXAA52..M202005-202303

LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2#

main71072-0R901-C0iMXAA54..G201911-202303

FTRD PARTS,BLACK,TRIM2#

main71072-0R901-E0iAXAH54..M201911-202303

NEUTRAL BEIGE,TRIM4#

main71072-0R901-E0iAXAH5#,MXAA5#..G201911-202303

FTRD PARTS,NEUTRAL BEIGE,TRIM4#

main71072-0R901-E0iAXAH52,MXAA52..M202005-202303

LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0R410-C3iMXAA52..X201911-202409

BLACK,TRIM2#

main71074-0R410-E3iMXAA52..X201911-202409

NEUTRAL BEIGE,TRIM4#

main71074-0R430-C3iAXAL5#,MXAA5#..G202304-202409

BLACK,TRIM2#

main71074-0R430-C3iMXAA52..M202304-202409

LEATHER PACKAGE,BLACK,TRIM2#

main71074-0R430-C3iMXAA52..M202304-202409

LEATHER PACKAGE(20TH ANNIVERSARY),BLACK,TRIM2#

main71074-0R430-C3iMXAA52..M202304-202409

FTRD PARTS,BLACK,TRIM2#

main71074-0R430-E4iMXAA54..G202304-202409

FTRD PARTS,NATURAL BEIGE,TRIM4#

main71074-0R430-E4iAXAL5#,MXAA5#..G202304-202409

NATURAL BEIGE,TRIM4#

main71074-0R430-E4iAXAL5#,MXAA5#..G202304-202409

LEATHER PACKAGE,NATURAL BEIGE,TRIM4#

main71074-0R430-E4iAXAL5#,MXAA5#..G202304-202409

LEATHER PACKAGE(20TH ANNIVERSARY),NATURAL BEIGE,TRIM4#

main71074-0R480-B2iMXAA54..M201911-202303

NEUTRAL WARM GRAY,TRIM1#

main71074-0R480-B2iMXAA54..M201911-202303

LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL WARM GRAY,TRIM1#

main71074-0R480-C3iAXAH52,MXAA5#..M201911-202409

BLACK,TRIM2#

main71074-0R480-C3iAXAL5#,MXAA52..M202409

FTRD INTERIOR PKG HI,BLACK,TRIM2#

main71074-0R480-C3iAXAL5#,MXAA52..M202304-202409

LEATHER PACKAGE,BLACK,TRIM2#

main71074-0R480-C3iMXAA54..M201911-202303

LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2#

main71074-0R480-E3iAXAH52,MXAA5#..M201911-202303

LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4#

main71074-0R480-E3iAXAH52,MXAA5#..M201911-202409

NEUTRAL BEIGE,TRIM4#

main71074-0R480-E3iAXAL5#,MXAA5#..M202304-202409

LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#

main71074-0R901-B0iAXAH5#,MXAA5#..G201911-202303

TRIM1#

main71074-0R901-B0iMXAA54..G201911-202303

FTRD PARTS,TRIM1#

main71074-0R901-B0iAXAH52,MXAA52..M202005-202303

LEATHER PACKAGE&SEAT HEATER-WITH,TRIM1#

main71074-0R901-C0iAXAH5#,MXAA5#..G201911-202303

BLACK,TRIM2#

main71074-0R901-C0iMXAA54..G201911-202303

FTRD PARTS,BLACK,TRIM2#

main71074-0R901-C0iAXAH54..M202005-202303

LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2#

main71074-0R901-E0iMXAA54..G201911-202303

NEUTRAL BEIGE,TRIM4#

main71074-0R901-E0iAXAH5#,MXAA5#..G201911-202303

FTRD PARTS,NEUTRAL BEIGE,TRIM4#

main71074-0R901-E0iAXAH54..M202005-202303

LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4#

71240SCOVER, FRONT SEAT CUSHION, LH

main71072-0R901-C0iAXAL5#,MXAA5#..G202304-202409

BLACK,TRIM2#

main71072-0R901-C0iAXAL5#,MXAA5#..G202304-202409

FTRD PARTS,BLACK,TRIM2#

main71072-0R901-C0iMXAA5#..G202304-202409

BLACK,TRIM1#,2#,40

main71072-0R901-C0iMXAA5#..G202304-202409

LEATHER PACKAGE,BLACK,TRIM2#

main71072-0R901-C0iMXAA5#..G202304-202409

LEATHER PACKAGE,BLACK,TRIM1#,2#,40

main71072-0R901-C0iMXAA5#..G202304-202409

LEATHER PACKAGE(20TH ANNIVERSARY),BLACK,TRIM2#

main71072-0R901-E0iMXAA5#..G202304-202409

NEUTRAL BEIGE,TRIM4#

main71072-0R901-E0iMXAA5#..G202304-202409

NEUTRAL BEIGE,TRIM40

main71072-0R901-E0iMXAA5#..G202304-202409

LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#

main71072-0R901-E0iMXAA5#..G202304-202409

LEATHER PACKAGE,NEUTRAL BEIGE,TRIM40

main71072-0R901-E0iMXAA5#..G202304-202409

LEATHER PACKAGE(20TH ANNIVERSARY),NEUTRAL BEIGE,TRIM4#

main71072-0R901-E0iMXAA5#..G202304-202409

FTRD PARTS,NEUTRAL BEIGE,TRIM4#

71290SCOVER, FRONT SEATBACK, LH

main71074-0R901iAXAL5#..G202409

main71074-0R901iAXAL5#..M202304-202409

LEATHER PACKAGE

main71074-0R901-C0iMXAA52..M202304-202409

LEATHER PACKAGE,BLACK,TRIM2#

main71074-0R901-C0iMXAA5#..G202304-202409

BLACK,TRIM2#

main71074-0R901-C0iMXAA5#..G202304-202409

FTRD PARTS,BLACK,TRIM2#

main71074-0R901-C0iMXAA5#..G202304-202409

LEATHER PACKAGE(20TH ANNIVERSARY),BLACK,TRIM2#

main71074-0R901-E0iMXAA5#..G202304-202409

NEUTRAL BEIGE,TRIM4#

main71074-0R901-E0iMXAA5#..G202304-202409

LEATHER PACKAGE(20TH ANNIVERSARY),NEUTRAL BEIGE,TRIM4#

main71074-0R901-E0iMXAA52..M202304-202409

LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#

main71074-0R901-E0iMXAA52..M202304-202409

FTRD PARTS,NEUTRAL BEIGE,TRIM4#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0R190iMXAA52..X201911-202409

main71512-0R200iAXAL5#,MXAA5#..G,M201911-202409

7152

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-0R230iAXAH5#,MXAA5#201911-202409

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-0R210iMXAA52..X201911-202303

main71620-0R220iAXAL5#,MXAA5#..G,M201911-202409

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-0R230iMXAA52..X201911-202409

main71640-0R240iAXAL5#,MXAA5#..G,M201911-202409

71703EPANEL SUB-ASSY, FRONT SEAT CUSHION, LH

main71703-0R010iAXAH5#,MXAA5#201911-202409

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0E300-C0iAXAL5#,MXAA5#..G,M202409

BLACK,TRIM2#,4#

main71812-0E300-C0iAXAL5#,MXAA5#..G,M202201-202409

BLACK,TRIM1#,2#,4#

main71812-0R160-C0iMXAA52..X201911-202409

BLACK,TRIM2#,4#

main71812-0R170-C0iAXAH5#,MXAA5#..G,M201911-202201

BLACK,TRIM1#,2#,4#

main71812-0R170-C0iAXAH5#,MXAA5#..G,M201911-202201

FTRD PARTS,BLACK,TRIM1#,2#,4#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-0R110-C0iAXAL5#,MXAA5#..G,M201911-202409

BLACK,TRIM2#,4#

main71862-0R110-C0iAXAL5#,MXAA5#..G,M201911-202409

BLACK,TRIM1#,2#,4#

main71862-0R110-C0iAXAL5#,MXAA5#..G,M202304-202409

LEATHER PACKAGE,BLACK,TRIM1#,2#,4#

main71862-0R110-C0iAXAL5#,MXAA5#..G,M201911-202409

FTRD PARTS,BLACK,TRIM1#,2#,4#

main71862-0R110-C0iAXAL5#,MXAA5#202409

LEATHER PACKAGE,BLACK,TRIM2#,4#

main71862-0R110-C0iAXAL5#,MXAA5#202409

FTRD PARTS,BLACK,TRIM2#,4#

main71862-0R110-C0iAXAL5#,MXAA5#202409

FTRD INTERIOR PKG HI,BLACK,TRIM2#,4#

71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

main71868-0E140-C0iAXAH5#,MXAA5#..G,M202201-202409

BLACK,TRIM1#,2#,4#

main71868-0E140-C0iAXAL5#,MXAA5#..G,M202409

BLACK,TRIM2#,4#

main71868-0R060-C0iAXAH5#,MXAA5#..G,M201911-202201

FTRD PARTS,BLACK,TRIM1#,2#,4#

main71868-0R060-C0iAXAH5#,MXAA5#..G,M201911-202201

BLACK,TRIM1#,2#,4#

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-0R040iMXAA54..G202302-202303

LEATHER PACKAGE&SEAT HEATER-WITH

main71873-0R040iMXAA54..G202302-202409

FTRD PARTS

main71873-0R040iAXAL5#,MXAA5#202304-202409

LEATHER PACKAGE

main71873-0R040iAXAL5#,MXAA5#201911-202302

71874CSHIELD, FRONT SEAT CUSHION, LOWER

main71874-0R060iAXAH5#,MXAA5#201911-202409

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-0R070-C0iMXAA52..X201911-202409

BLACK,TRIM2#,4#

main71875-0R070-C0iMXAA52..X201911-202409

BLACK,TRIM1#,2#,4#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-0E170-C0iAXAH5#,MXAA5#..G,M202201-202409

BLACK,TRIM1#,2#,4#

main71876-0E170-C0iAXAL5#,MXAA5#..G,M202409

BLACK,TRIM2#,4#

main71876-0R050-C0iMXAA54..G201911-202201

FTRD PARTS,BLACK,TRIM1#,2#,4#

main71876-0R050-C0iAXAH5#,MXAA5#..G,M201911-202201

BLACK,TRIM1#,2#,4#

main71876-0R110-C0iMXAA52..X201911-202409

BLACK,TRIM2#,4#

71910AHEADREST ASSY, FRONT SEAT

main71910-0R180-C2iMXAA52..X201911-202410

BLACK,TRIM2#

main71910-0R180-C3iMXAA52..X202410

BLACK,TRIM2#

main71910-0R180-E2iMXAA52..X201911-202409

NEUTRAL BEIGE,TRIM4#

main71910-0R190-B0iAXAH54..M201911-202303

GRAY,TRIM1#

main71910-0R190-B0iAXAH52,MXAA5#..M202005-202303

LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1#

main71910-0R190-C1iAXAH52,MXAA5#..M202005-202303

LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2#

main71910-0R190-C1iAXAH52,MXAA5#..M201911-202409

BLACK,TRIM2#

main71910-0R190-C1iMXAA54..G202304-202409

FTRD PARTS,BLACK,TRIM2#

main71910-0R190-C1iMXAA54..G202304-202409

LEATHER PACKAGE(20TH ANNIVERSARY),BLACK,TRIM2#

main71910-0R190-C1iMXAA54..G202304-202409

LEATHER PACKAGE,BLACK,TRIM2#

main71910-0R190-E0iMXAA52..M202304-202409

LEATHER PACKAGE(20TH ANNIVERSARY),NEUTRAL BEIGE,TRIM4#

main71910-0R190-E0iAXAH5#,MXAA5#..G201911-202409

NEUTRAL BEIGE,TRIM4#

main71910-0R190-E0iAXAH54..M202005-202303

LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4#

main71910-0R190-E0iAXAL5#,MXAA5#..G202304-202409

LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#

main71910-0R190-E0iAXAL5#,MXAA5#..G202304-202409

FTRD PARTS,NEUTRAL BEIGE,TRIM4#

main71910-0R250-B2iAXAH52,MXAA5#..M201911-202303

LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL WARM GRAY,TRIM1#

main71910-0R250-B2iAXAH54..M201911-202303

NEUTRAL WARM GRAY,TRIM1#

main71910-0R250-C2iAXAL5#,MXAA52..M202409-202410

FTRD INTERIOR PKG HI,BLACK,TRIM2#

main71910-0R250-C2iAXAL5#,MXAA52..M202304-202410

LEATHER PACKAGE,BLACK,TRIM2#

main71910-0R250-C2iAXAL5#,MXAA52..M201911-202410

BLACK,TRIM2#

main71910-0R250-C2iMXAA54..M201911-202303

LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2#

main71910-0R250-C3iMXAA54..M202410

BLACK,TRIM2#

main71910-0R250-C3iAXAL5#,MXAA52..M202410

LEATHER PACKAGE,BLACK,TRIM2#

main71910-0R250-C3iMXAA54..M202410

FTRD INTERIOR PKG HI,BLACK,TRIM2#

main71910-0R250-E2iMXAA54..M201911-202303

LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4#

main71910-0R250-E2iMXAA54..M201911-202409

NEUTRAL BEIGE,TRIM4#

main71910-0R250-E2iMXAA54..M202304-202409

LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-0R080-C0iAXAL5#,MXAA5#201911-202409

W(LOCK),BLACK,TRIM2#,4#

main71930-0R080-C0iAXAL5#,MXAA5#202304-202409

W(LOCK),LEATHER PACKAGE,BLACK,TRIM2#,4#

main71930-0R080-C0iAXAL5#,MXAA5#202304-202409

W(LOCK),FTRD PARTS,BLACK,TRIM2#,4#

main71930-0R080-C0iAXAL5#,MXAA5#202409

W(LOCK),FTRD INTERIOR PKG HI,BLACK,TRIM2#,8#

main71930-0R080-C0iMXAA52..X201911-202409

W(LOCK),BLACK,TRIM1#,2#,4#

main71931-0R060-C0iMXAA54..G201911-202409

W/O(LOCK),BLACK,TRIM2#,4#

main71931-0R060-C0iAXAL5#,MXAA5#..G,M201911-202409

W/O(LOCK),BLACK,TRIM1#,2#,4#

main71931-0R060-C0iAXAL5#,MXAA5#..G,M202304-202409

W/O(LOCK),LEATHER PACKAGE,BLACK,TRIM2#,4#

main71931-0R060-C0iAXAL5#,MXAA5#..G,M202304-202409

W/O(LOCK),FTRD PARTS,BLACK,TRIM2#,4#

main71931-0R060-C0iAXAL5#,MXAA5#202409

W/O(LOCK),FTRD INTERIOR PKG HI,BLACK,TRIM2#,8#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-0R150iMXAA52..X201911-202409

main72020-0R160iAXAL5#,MXAA5#..G,M201911-202409

72265COVER, SEAT TRACK UPPER RAIL, RH

main72266-0R010iAXAL5#,MXAA5#..G,M202304-202409

main72266-0R020iAXAH5#,MXAA5#201911-202409

72265BCOVER, SEAT TRACK UPR RAIL, RH

main72265-0R030iAXAL5#,MXAA5#..G,M202304-202409

main72265-0R040iMXAA52..X202304-202409

main72266-0R010iAXAH5#,MXAA5#..G,M201911-202303

main72266-0R020iMXAA52..X201911-202303

72266COVER, SEAT TRACK UPPER RAIL, LH

main72265-0R030iAXAL5#,MXAA5#..G,M202304-202409

main72265-0R040iAXAH5#,MXAA5#201911-202409

72266BCOVER, SEAT TRACK UPPER RAIL, LH

main72265-0R030iAXAL5#,MXAA5#..G,M201911-202303

main72265-0R040iMXAA52..X201911-202303

main72266-0R010iAXAL5#,MXAA5#..G,M202304-202409

main72266-0R020iMXAA52..X202304-202409

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-0R060iAXAL5#,MXAA5#..G,M201911-202409

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-0R070iAXAL5#,MXAA5#201911-202409

8202

8401

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-0R210iAXAL5#,MXAA52..M202304-202409

LEATHER PACKAGE(20TH ANNIVERSARY)

main87510-0R210iAXAL5#,MXAA52..M202304-202409

LEATHER PACKAGE

main87510-0R210iAXAL5#,MXAA5#..G202304-202409

FTRD PARTS

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-0R090iMXAA52..M202304-202409

FTRD PARTS

main87530-0R090iMXAA54..G202304-202409

LEATHER PACKAGE

main87530-0R090iMXAA54..G202304-202409

LEATHER PACKAGE(20TH ANNIVERSARY)

9011910601

main90119-10601

90177C0016

main90177-C0016

9324116016

main93241-16016

9356014010

main93560-14010

35 parts on this diagram · 7 diagrams in section
