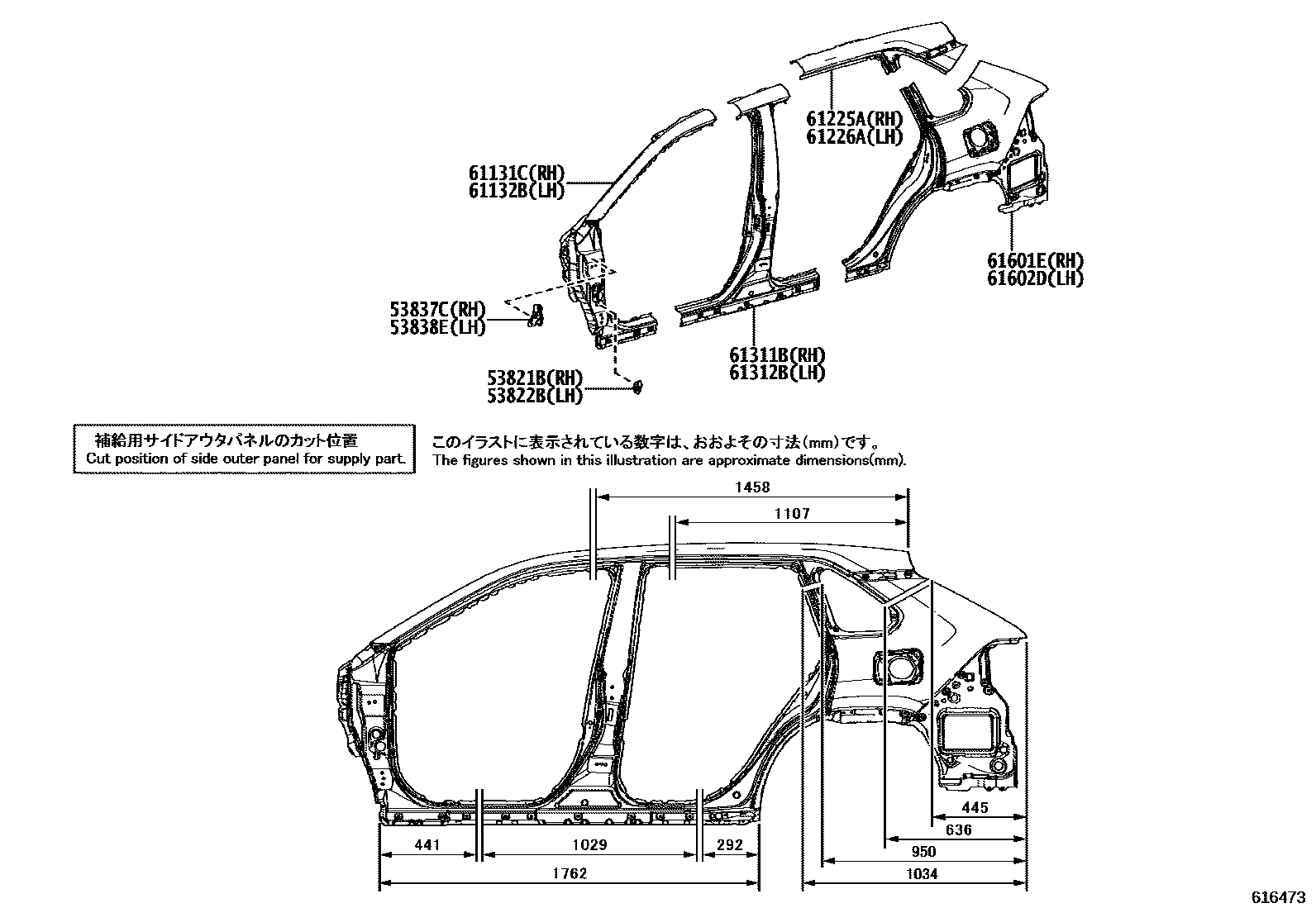

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-0R050iAXAH5#,MXAA5#201911-202409

53822BBRACKET, FRONT FENDER, REAR LH

main53821-0R050iAXAL5#,MXAA5#201911-202409

53837CBRACKET, FRONT SIDE PANEL, NO.2 RH

main53837-0R020iAXAL5#,MXAA5#201911-202409

53838EBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-0R020iAXAL5#,MXAA5#201911-202409

61131CPILLAR, FRONT BODY, OUTER RH

main61131-0R070iAXAH5#,MXAA5#201911-202303

main61131-0R071iAXAL5#,MXAA5#202304-202409

61132BPILLAR, FRONT BODY, OUTER LH

main61132-0R080iAXAH5#,MXAA5#201911-202303

main61132-0R081iAXAL5#,MXAA5#202304-202409

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61210-0R020iAXAH5#,MXAA5#201911-202303

main61210-0R021iAXAL5#,MXAA5#202304-202409

61226ARAIL, ROOF SIDE OUTER UPPER NO.1, LH

main61220-0R020iAXAH5#,MXAA5#201911-202303

main61220-0R021iAXAL5#,MXAA5#202304-202409

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0R070iAXAH5#,MXAA5#201911-202303

main61311-0R071iAXAL5#,MXAA5#202304-202409

61312BPILLAR, CENTER BODY, OUTER LH

main61312-0R080iAXAH5#,MXAA5#201911-202303

main61312-0R081iAXAL5#,MXAA5#202304-202409

61601EPANEL SUB-ASSY, QUARTER, OUTER RH

main61601-0R170iAXAL5#,MXAA5#201911-202409

61602DPANEL SUB-ASSY, QUARTER, OUTER LH

main61602-0R170iAXAL5#,MXAA5#201911-202409

12 parts on this diagram · 3 diagrams in section
