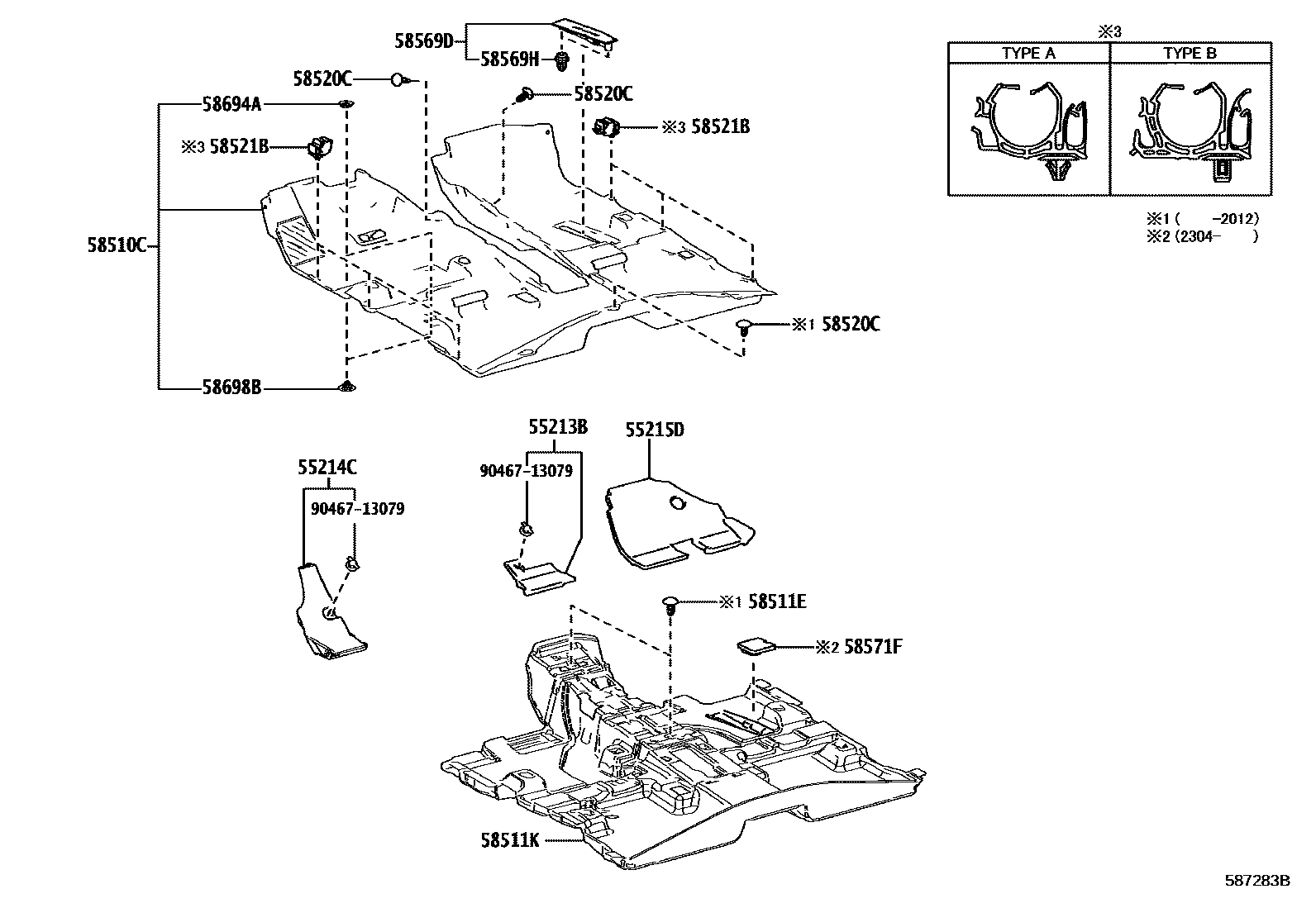

FLOOR MAT & SILENCER PAD
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510CCARPET ASSY, FRONT FLOOR, FRONT
BLACK,TRIM2#,4#,8#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#,8#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
58511ECLIP(FOR FRONT FLOOR MAT)
BLACK
58511KMAT, FLOOR, NO.1
58520CCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#,8#
58521BHOOK, FLOOR CARPET
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM2#,4#,8#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
58569HCLIP, FRONT FLOOR CAUTION PLATE COVER, NO.1
58571FPAD, FRONT FLOOR, FRONT
58694APLATE, MAT SET, UPPER
58698BPLATE, MAT SET, LOWER
9046713079
main90467-13079
14 parts on this diagram · 3 diagrams in section
