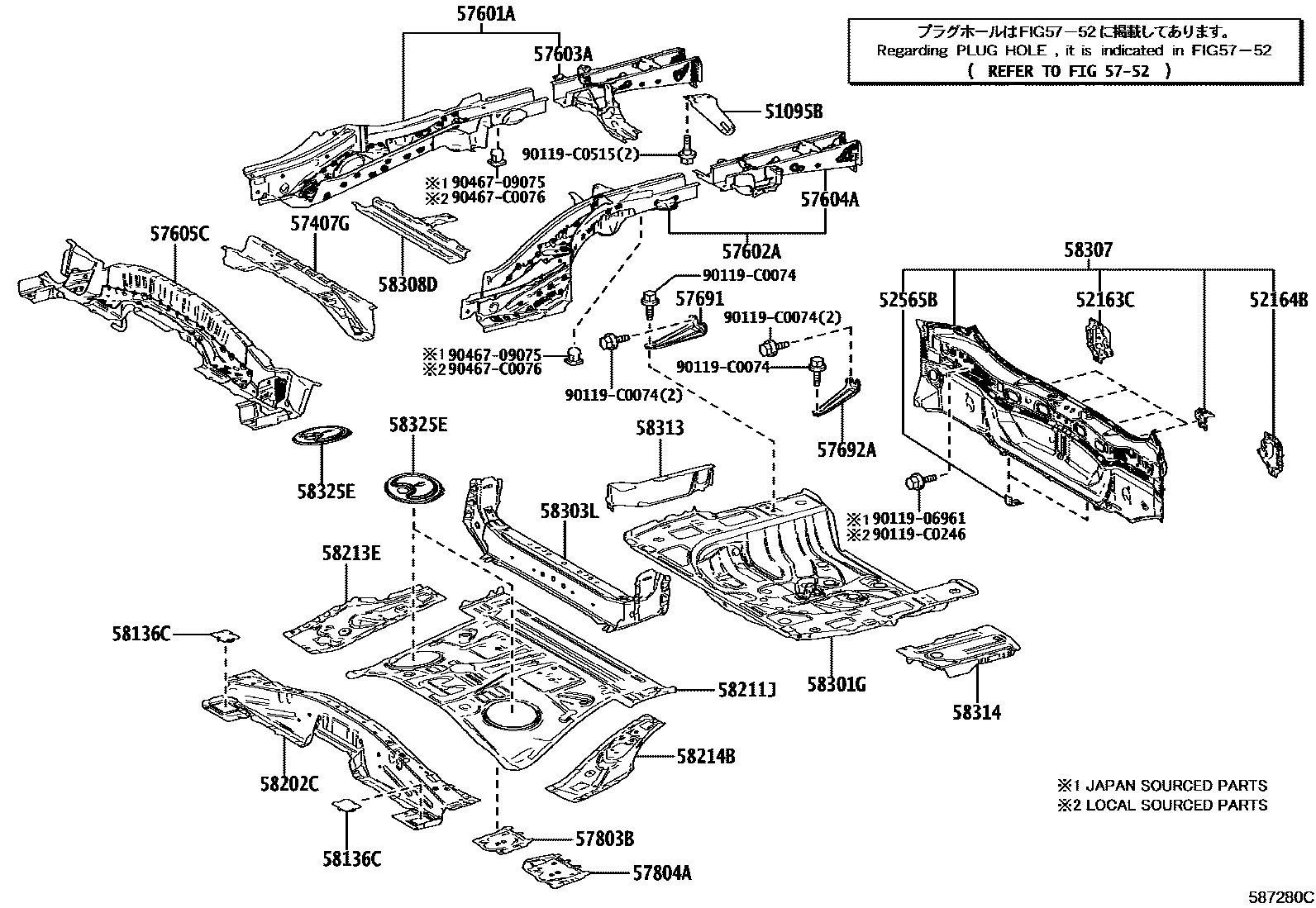

REAR FLOOR PANEL & REAR FLOOR MEMBER
51095BHOOK SUB-ASSY, TRANSPORT, REAR RH
52163CPLATE, REAR BUMPER REINFORCEMENT, RH
52164BPLATE, REAR BUMPER REINFORCEMENT, LH
52565BRETAINER, REAR BUMPER, LOWER
57407GMEMBER SUB-ASSY, CENTER FLOOR CROSS
5752
57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57691BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH
57692ABRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH
57803BREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH
57804AREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH
58136CCOVER, REAR FLOOR HOLE
58202CPAN SUB-ASSY, CENTER FLOOR, FRONT
58213EPANEL, SEAT FLOOR SIDE, RH
58214BPANEL, SEAT FLOOR SIDE, LH
58301GPAN SUB-ASSY, REAR FLOOR
58307PANEL SUB-ASSY, BODY LOWER BACK
58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
9011906961
main90119-06961
90119C0074
main90119-C0074
90119C0246
main90119-C0246
90119C0515
main90119-C0515
9046709075
main90467-09075
90467C0076
main90467-C0076
33 parts on this diagram · 2 diagrams in section
