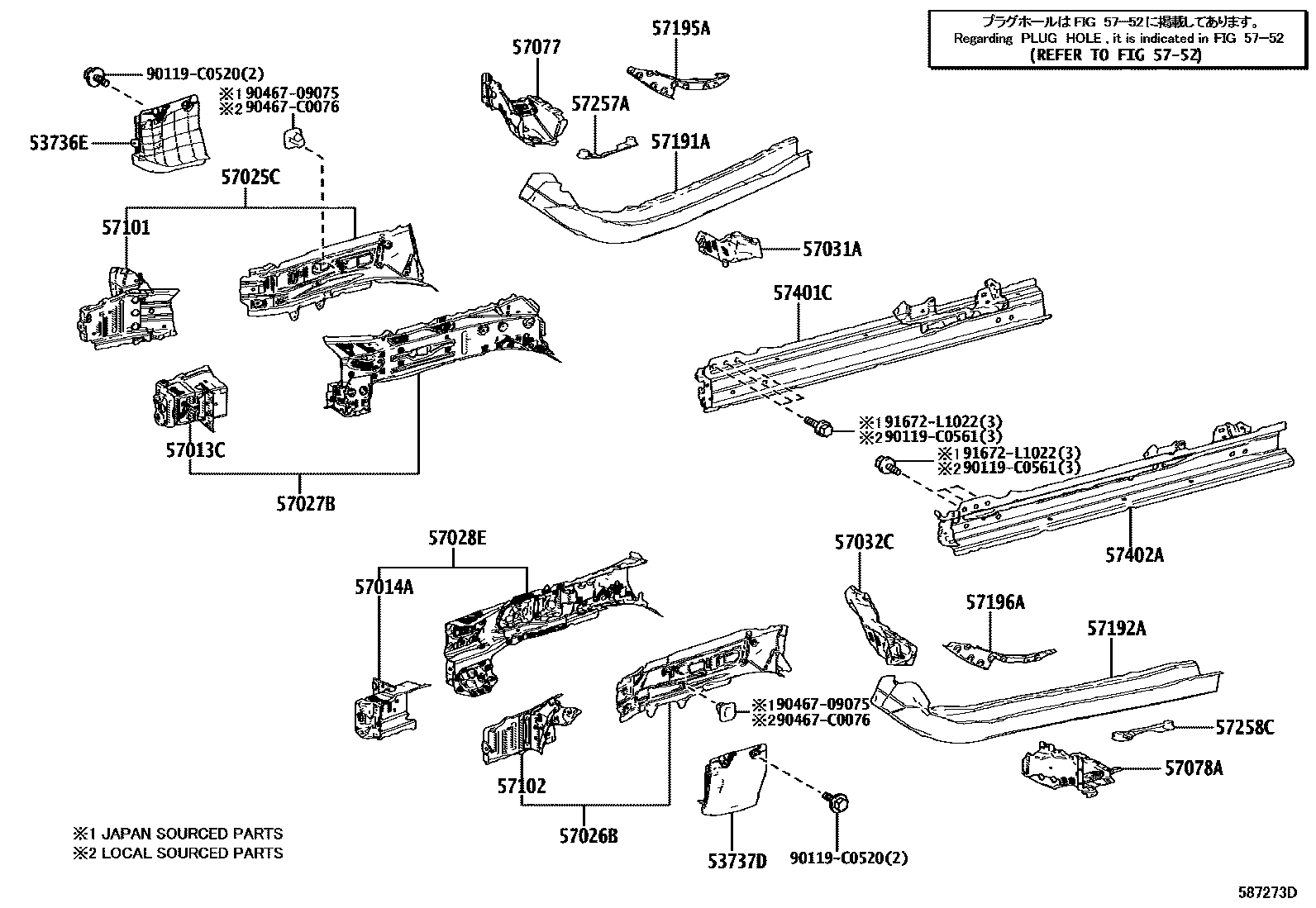

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR SIDE MEMBER 0002 1FLOOR PANEL 0003 1FLOOR PANEL

53736ESEAL, FRONT FENDER APRON, RH

main53736-0R050iAXAL5#,MXAA5#201911-202409

53737DSEAL, FRONT FENDER APRON, LH

main53737-0R020iAXAL5#,MXAA5#201911-202409

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0R020iAXAL5#,MXAA5#201911-202409

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0R020iAXAL5#,MXAA5#201911-202409

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-0R030iAXAL5#,MXAA5#201911-202409

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-0R030iAXAL5#,MXAA5#201911-202409

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-0R020iAXAL5#,MXAA5#201911-202409

57028EBRACKET SUB-ASSY, CONVERTER SUPPORT

main57028-0R020iAXAL5#,MXAA5#201911-202409

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-0R020iAXAL5#,MXAA5#201911-202409

57032CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-0R040iAXAL5#,MXAA5#201911-202409

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-0R020iAXAH5#,MXAA5#201911-202409

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-0R040iAXAL5#,MXAA5#201911-202409

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57023-0R020iAXAH5#,MXAA5#201911-202409

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57024-0R020iAXAL5#,MXAA5#201911-202409

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-0R050iAXAH5#,MXAA5#201911-202303

sub57191-0R051

sub90119-06A14¥60

main57191-0R051iAXAL5#,MXAA5#202304-202409

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-0R050iAXAH5#,MXAA5#201911-202409

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-0R030iAXAH5#,MXAA5#201911-202409

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-0R030iAXAL5#,MXAA5#201911-202409

57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH

main57257-0R020iAXAL5#,MXAA5#201911-202409

57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57258-0R020iAXAL5#,MXAA5#201911-202409

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0R070iAXAL5#,MXAA5#201911-202409

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0R060iAXAL5#,MXAA5#201911-202409

5752

90119C0520

main90119-C0520

90119C0561

main90119-C0561

9046709075

main90467-09075¥110

90467C0076

main90467-C0076

91672L1022

main91672-L1022¥100

28 parts on this diagram · 3 diagrams in section
