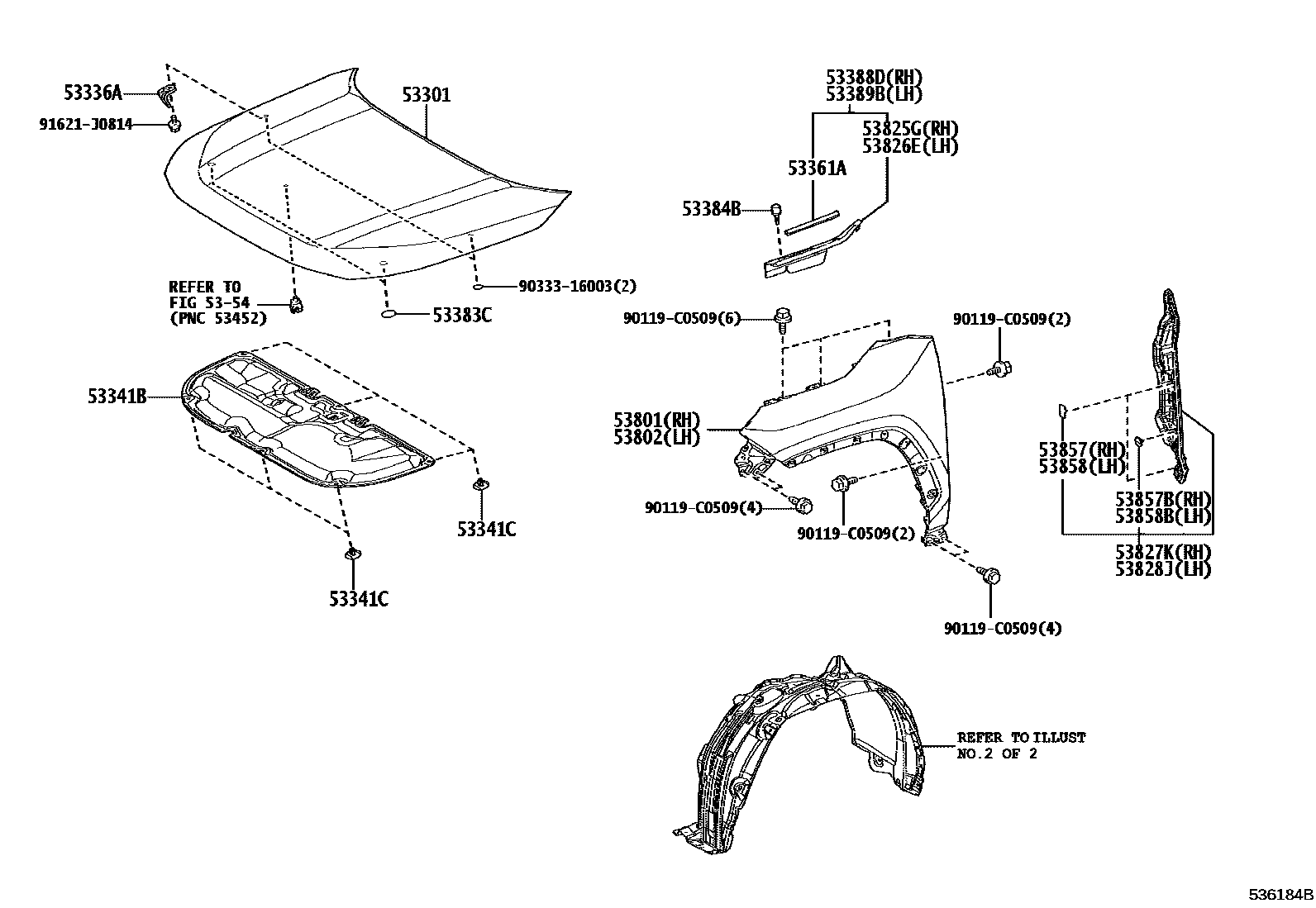

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-0R090iAXAH5#,MXAA5#201911-202409

53336ABRACKET, HOOD STAY

main53336-0R020iAXAL5#,MXAA5#201911-202409

53341BINSULATOR, HOOD

main53341-0R070iAXAL5#,MXAA5#201911-202409

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iAXAH5#,MXAA5#201911-202108

main90467-C0025iAXAL5#,MXAA5#202109-202409

53361AWEATHERSTRIP, HOOD

main53361-0R040iAXAL5#,MXAA5#201911-202409

53383CSEAL, HOOD TO COWL TOP

main90950-06096iAXAL5#,MXAA5#201911-202409

53384BCUSHION, HOOD, CENTER

main53384-22070iAXAH5#,MXAA5#201911-202409

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0R060iAXAL5#,MXAA5#201911-202409

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-0R060iAXAL5#,MXAA5#201911-202409

5354

53801FENDER SUB-ASSY, FRONT RH

main53811-0R140iAXAL5#,MXAA5#201911-202409

53802FENDER SUB-ASSY, FRONT LH

main53812-0R120iAXAL5#,MXAA5#201911-202409

53825GPROTECTOR, FRONT FENDER, UPPER RH

main53825-0R040iAXAL5#,MXAA5#201911-202409

53826EPROTECTOR, FRONT FENDER, UPPER LH

main53826-0R040iAXAL5#,MXAA5#201911-202409

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0R060iAXAH5#,MXAA5#201911-202409

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0R060iAXAH5#,MXAA5#201911-202409

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iAXAL5#,MXAA5#201911-202409

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-0R010iAXAL5#,MXAA5#201911-202409

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iAXAL5#,MXAA5#201911-202409

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-0R010iAXAL5#,MXAA5#201911-202409

90119C0509

main90119-C0509

9033316003

main90333-16003

91621J0814

main91621-J0814

23 parts on this diagram · 2 diagrams in section
