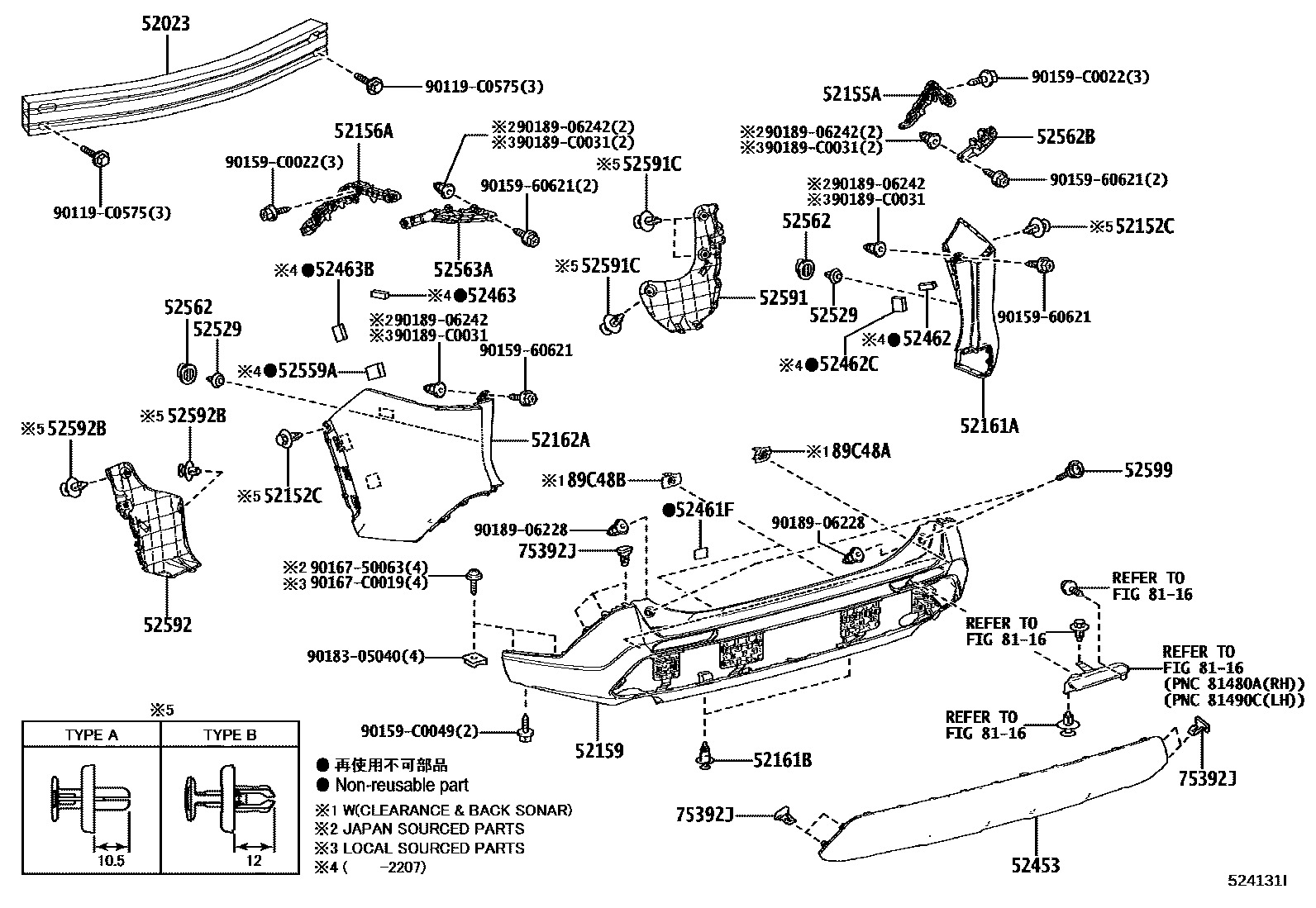

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52152CCLIP, REAR BUMPER SIDE
TYPE A:REFER ILLUST.
FTRD INTERIOR PKG HI&FTRD PARTS 2,TYPE A:REFER ILLUST.
FTRD PARTS,TYPE A:REFER ILLUST.
(J),TYPE B:REF ILL.
FTRD INTERIOR PKG HI&FTRD PARTS 2,(J)
LEATHER PACKAGE&FTRD PARTS
(J)
FTRD PARTS
FTRD INTERIOR PKG HI&FTRD PARTS 2,(L)
(L),TYPE B:REF ILL.
(L)
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
NO PAINT REQ.,FTRD PARTS
NO PAINT REQ.,FTRD INTERIOR PKG HI&FTRD PARTS 2
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,LEATHER PACKAGE
NO PAINT REQ.,LEATHER PACKAGE&FTRD PARTS
NO PAINT REQ.,LEATHER PACKAGE(20TH ANNIVERSARY)
NO PAINT REQ.,FTRD INTERIOR PKG HI&FTRD PARTS 2
NO PAINT REQ.
NO PAINT REQ.,LEATHER PACKAGE&FTRD PARTS
NO PAINT REQ.,FTRD INTERIOR PKG HI
52161APIECE, REAR BUMPER, RH
FTRD PARTS
52161BPIECE, REAR BUMPER
52162APIECE, REAR BUMPER, LH
FTRD PARTS
52453GUARD, REAR BUMPER, CENTER
LEATHER PACKAGE,GRAY,070 ,089 ,1K6 ,209 ,2PN ,2PU ,2QU ,2RX ,2RY ,2RZ ,2SA ,2UQ ,3T3 ,4V8 ,6X3 ,8W9 ,8X8
GRAY,089 ,1K6 ,209 ,2PN ,2PU ,2QU ,2RX ,2RY ,2RZ ,2SA ,2UQ ,3T3 ,4V8 ,6X3 ,8X8
GRAY,070 ,089 ,1K6 ,209 ,2PN ,2PU ,2QU ,2RX ,2RY ,2RZ ,2SA ,2UQ ,3T3 ,4V8 ,6X3 ,8W9 ,8X8
FTRD PARTS,GRAY,070 ,089 ,1K6 ,209 ,2KR ,2PN ,2PU ,2QU ,2QV ,2RX ,2RY ,2RZ ,2SA ,2UQ ,3T3 ,4V8 ,6X3 ,8W9 ,8X8
GRAY,070 ,089 ,1K6 ,209 ,2KR ,2PN ,2PU ,2QU ,2QV ,2RX ,2RY ,2RZ ,2SA ,2UQ ,3T3 ,4V8 ,6X3 ,8W9 ,8X8
FTRD INTERIOR PKG HI,GRAY METALLIC,089 ,1K6 ,209 ,2PU ,2RZ ,3T3 ,4V8 ,6X3 ,6X8 ,8X8
GRAY METALLIC,089 ,1K6 ,209 ,2PU ,2QU ,2RZ ,3T3 ,4V8 ,6X3 ,6X8 ,8X8
GRAY METALLIC,089 ,1K6 ,209 ,2PU ,2RZ ,3T3 ,4V8 ,6X3 ,6X8 ,8X8
FTRD PARTS,GRAY METALLIC,089 ,1K6 ,209 ,2PU ,2QU ,2RZ ,3T3 ,4V8 ,6X3 ,6X8 ,8X8
FTRD INTERIOR PKG HI&FTRD PARTS 2,GRAY METALLIC,089 ,1K6 ,209 ,2PU ,2RZ ,3T3 ,4V8,6X3 ,6X8 ,8X8
GRAY METALLIC,089 ,1K6 ,209 ,2PU ,2QU ,2RZ ,3T3 ,4V8 ,6X3 ,8X8
GRAY METALLIC,089 ,1K6 ,209 ,2PU ,2RZ ,3T3 ,4V8 ,6X3 ,8X8
LEATHER PACKAGE,GRAY METALLIC,089 ,1K6 ,209 ,2PU ,2RZ ,3T3 ,4V8 ,6X3 ,8X8
FTRD PARTS,GRAY METALLIC,089 ,1K6 ,209 ,2PU ,2QU ,2RZ ,3T3 ,4V8 ,6X3 ,8X8
52461FPAD, REAR BUMPER
52462PAD, REAR BUMPER, RH
52462CPAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52463BPAD, REAR BUMPER, LH
52529RETAINER, REAR BUMPER, UPPER CORNER
52559APAD, REAR BUMPER FILLER, LH
52562RETAINER, REAR BUMPER, UPPER SIDE
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52591SEAL, REAR BUMPER SIDE, RH
52591CCLIP, REAR BUMPER SIDE SEAL
TYPE A:REFER ILLUST.
(J),TYPE B:REF ILL.
(L),TYPE B:REF ILL.
52592SEAL, REAR BUMPER SIDE, LH
52592BCLIP, REAR BUMPER SIDE SEAL
TYPE A:REFER ILLUST.
(J),TYPE B:REF ILL.
(L),TYPE B:REF ILL.
52599STOPPER, REAR BUMPER, UPPER
75392JRETAINER, OUTSIDE MOULDING
8116
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
LEATHER PACKAGE(20TH ANNIVERSARY)
LEATHER PACKAGE
LEATHER PACKAGE&FTRD PARTS
LEATHER PACKAGE&FTRD PARTS
LEATHER PACKAGE
FTRD INTERIOR PKG HI&FTRD PARTS 2
FTRD INTERIOR PKG HI
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
LEATHER PACKAGE&FTRD PARTS
LEATHER PACKAGE
LEATHER PACKAGE(20TH ANNIVERSARY)
LEATHER PACKAGE&FTRD PARTS
FTRD INTERIOR PKG HI
LEATHER PACKAGE
FTRD INTERIOR PKG HI&FTRD PARTS 2
90119C0575
main90119-C0575
9015960621
main90159-60621
90159C0022
main90159-C0022
90159C0049
main90159-C0049
9016750063
main90167-50063
90167C0019
main90167-C0019
9018305040
main90183-05040
9018906228
main90189-06228
9018906242
main90189-06242
90189C0031
main90189-C0031
38 parts on this diagram · 1 diagram in section
