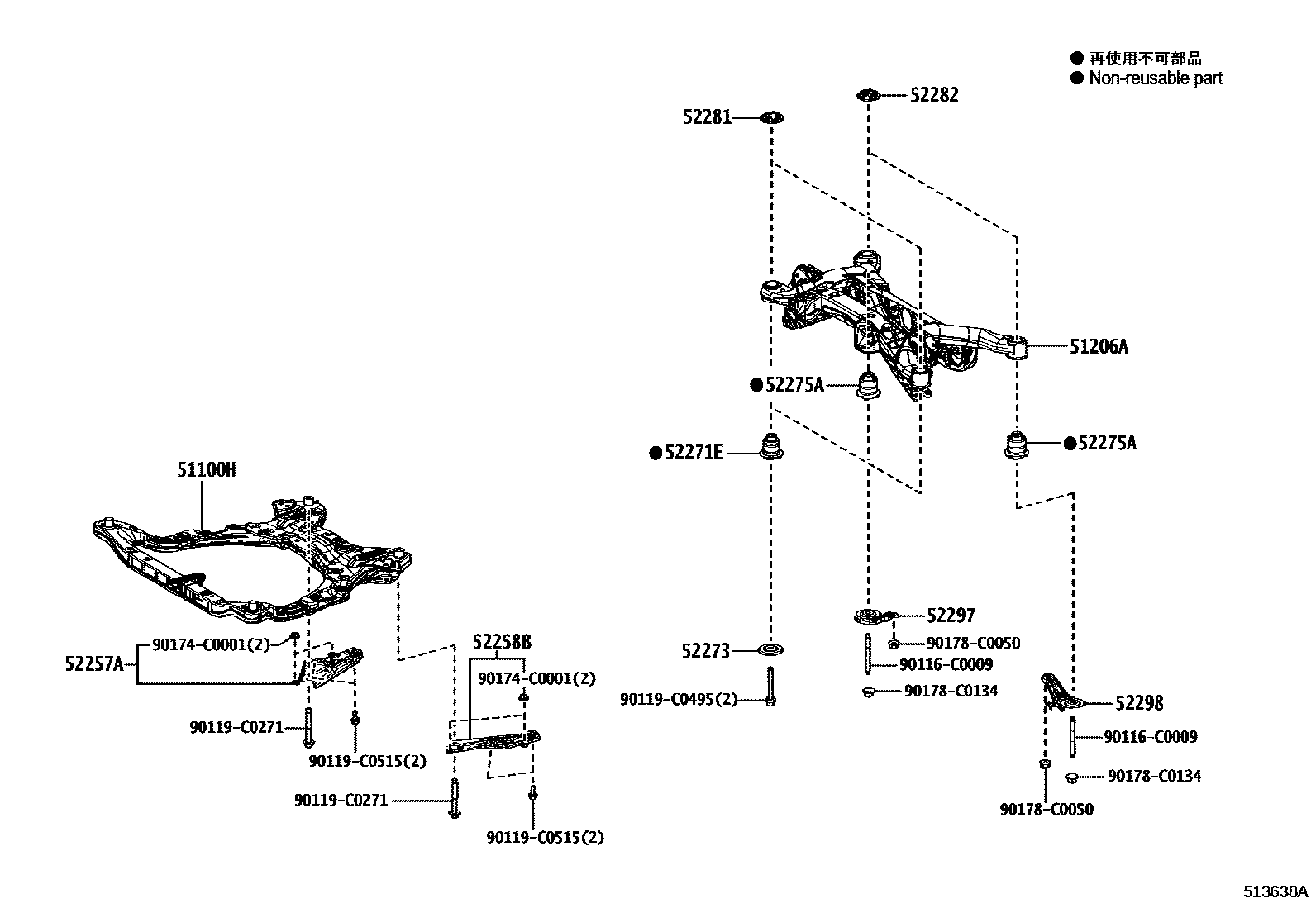

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION MEMBER 0002 1SUSPENSION MEMBER 0003 1UNDER COVER 0004 1UNDER COVER

51100HFRAME ASSY, FRONT

main51100-0R021iAXAL5#,MXAA5#202304-202307

main51100-0R022iAXAL5#,MXAA5#202308-202409

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0R070iMXAA54202409

main51206-0R080iAXAL54202304-202409

main51206-0R120iAXAH52,MXAA52201911-202303

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-0R050iAXAL5#,MXAA5#202409

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-0R050iAXAL5#,MXAA5#202409

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-0R020×2iAXAH5#,MXAA5#201911-202303

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-0R060×2iAXAL5#,MXAA5#202409

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-0R020iAXAL5#,MXAA5#202304-202409

RH

main52276-0R020iAXAH5#,MXAA5#201911-202303

LH

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-0R020×2iAXAL5#,MXAA5#202409

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-0R020×2iAXAL5#,MXAA5#202409

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-0R050iAXAH5#,MXAA5#201911-202303

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52297-0R050iAXAL5#,MXAA5#202304-202409

90116C0009

main90116-C0009

90119C0271

main90119-C0271

90119C0495

main90119-C0495

90119C0515

main90119-C0515

90174C0001

main90174-C0001

90178C0050

main90178-C0050

90178C0134

main90178-C0134

18 parts on this diagram · 4 diagrams in section
