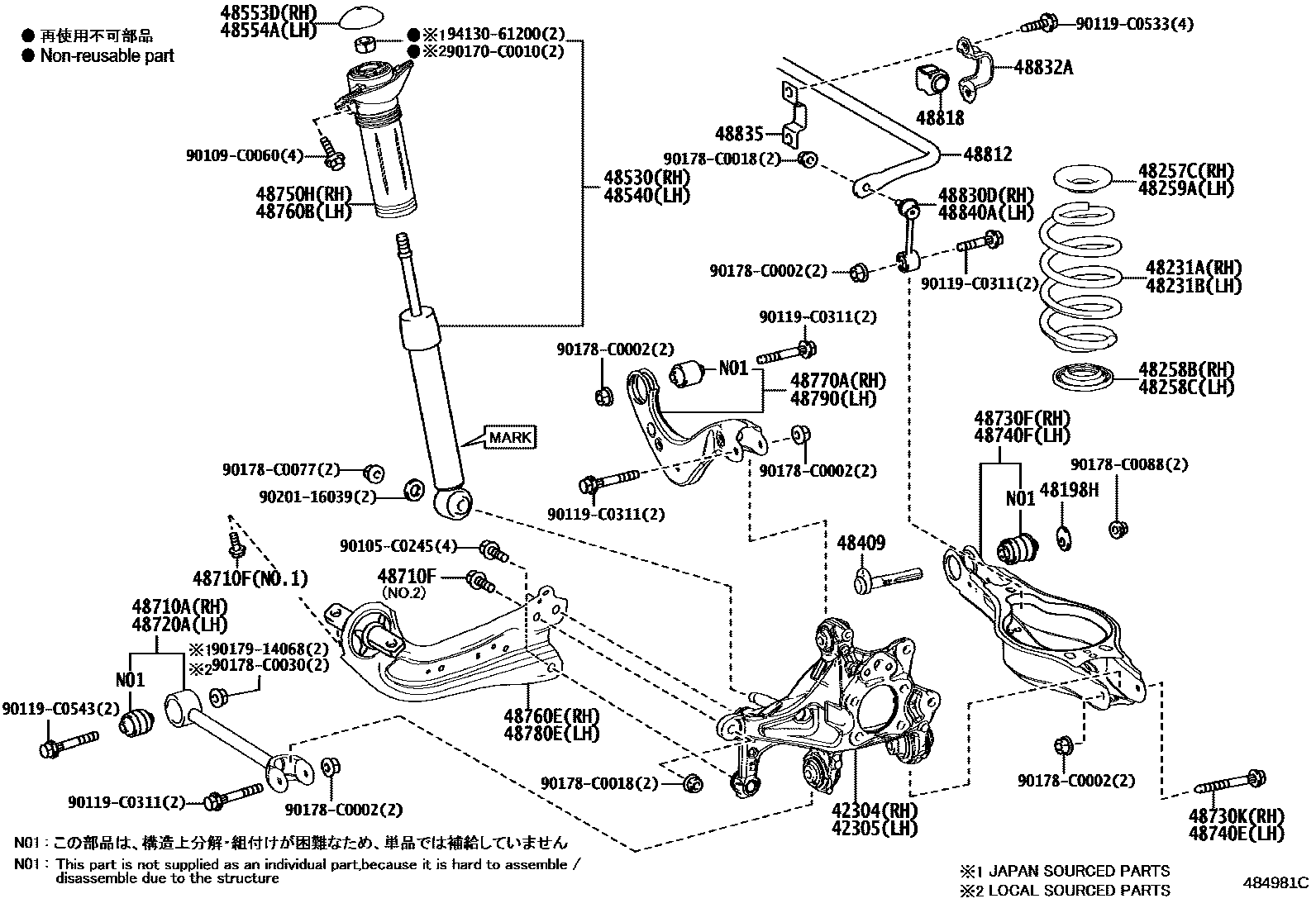

REAR SPRING & SHOCK ABSORBER
48198HCAM, CAMBER ADJUST, NO.2
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-0R050
MARK 48530-0R090
MARK 48530-0R110
MARK 48530-0R140
MARK 48530-0R050
MARK 48530-0R090
MARK 48530-0R110
MARK 48530-0R140
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-0R050
MARK 48530-0R090
MARK 48530-0R110
MARK 48530-0R140
MARK 48530-0R050
MARK 48530-0R090
MARK 48530-0R110
MARK 48530-0R140
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48710FBOLT(FOR REAR TRAILING ARM)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)
48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760EARM ASSY, TRAILING, REAR RH
48770AARM ASSY, UPPER CONTROL, REAR RH
48780EARM ASSY, TRAILING, REAR LH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48835BRACKET, REAR STABILIZER, LOWER
48840ALINK ASSY, REAR STABILIZER, LH
90105C0245
main90105-C0245
90109C0060
main90109-C0060
90119C0311
main90119-C0311
90119C0533
main90119-C0533
90119C0543
main90119-C0543
90170C0010
main90170-C0010
90178C0002
main90178-C0002
90178C0018
main90178-C0018
90178C0030
main90178-C0030
90178C0077
main90178-C0077
90178C0088
main90178-C0088
9017914068
main90179-14068
9020116039
main90201-16039
9413061200
main94130-61200
47 parts on this diagram · 2 diagrams in section
