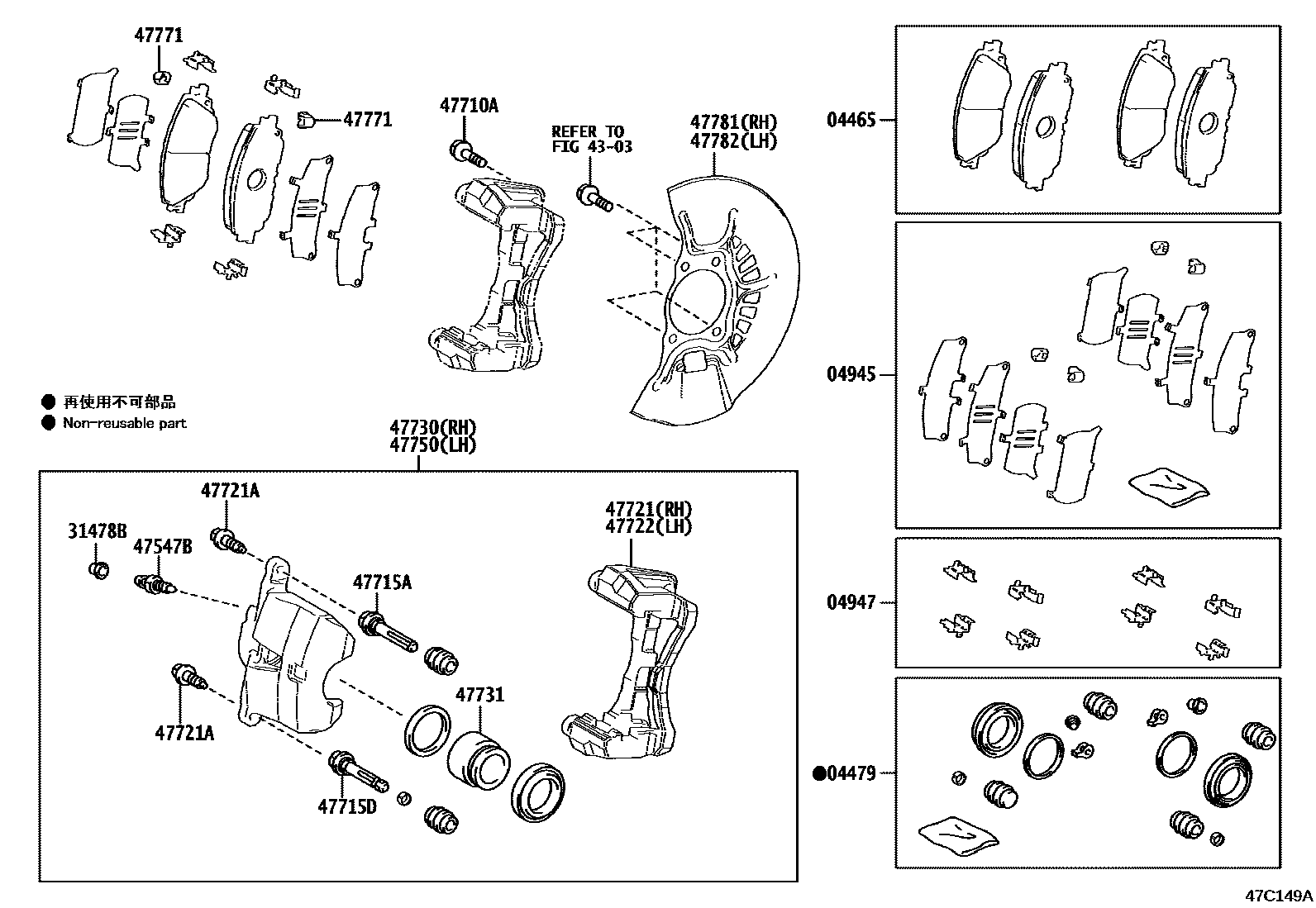

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-F4030iAXAL5#,MXAA5#201911-202409

MARK NBK D6994H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-06310iAXAH5#,MXAA5#201911-202010

main04478-06340iAXAL5#,MXAA5#202010-202409

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-06180iAXAL5#,MXAA5#201911-202409

04947FITTING KIT, DISC BRAKE, FRONT

main04947-06110iAXAL5#,MXAA5#201911-202409

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0N010iAXAH5#,MXAA5#201911-202409

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAXAL5#,MXAA5#201911-202409

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12401iAXAL5#,MXAA54..G201911-202409

*12-1.25PX35.5-30

main90105-C0021iMXAA52;AXAH5#,MXAA54..M201911-202409

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-0R020iAXAL5#,MXAA5#201911-202409

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-0D210iAXAL5#,MXAA5#201911-202409

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-07090iAXAH5#,MXAA5#201911-202010

main47721-0E120iAXAH5#,MXAA5#202010-202409

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA608iAXAL5#,MXAA5#201911-202409

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-07090iAXAH5#,MXAA5#201911-202010

main47722-0E120iAXAL5#,MXAA5#202010-202409

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-07090iAXAH5#,MXAA5#201911-202010

main47730-0E120iAXAL5#,MXAA5#202010-202409

47731PISTON, FRONT DISC BRAKE

main47731-02390iAXAH5#,MXAA5#201911-202409

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-07090iAXAH5#,MXAA5#201911-202010

main47750-0E120iAXAL5#,MXAA5#202010-202409

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iAXAH5#,MXAA5#201911-202303

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-07010iAXAL5#,MXAA5#201911-202409

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-07010iAXAL5#,MXAA5#201911-202409

19 parts on this diagram · 1 diagram in section
