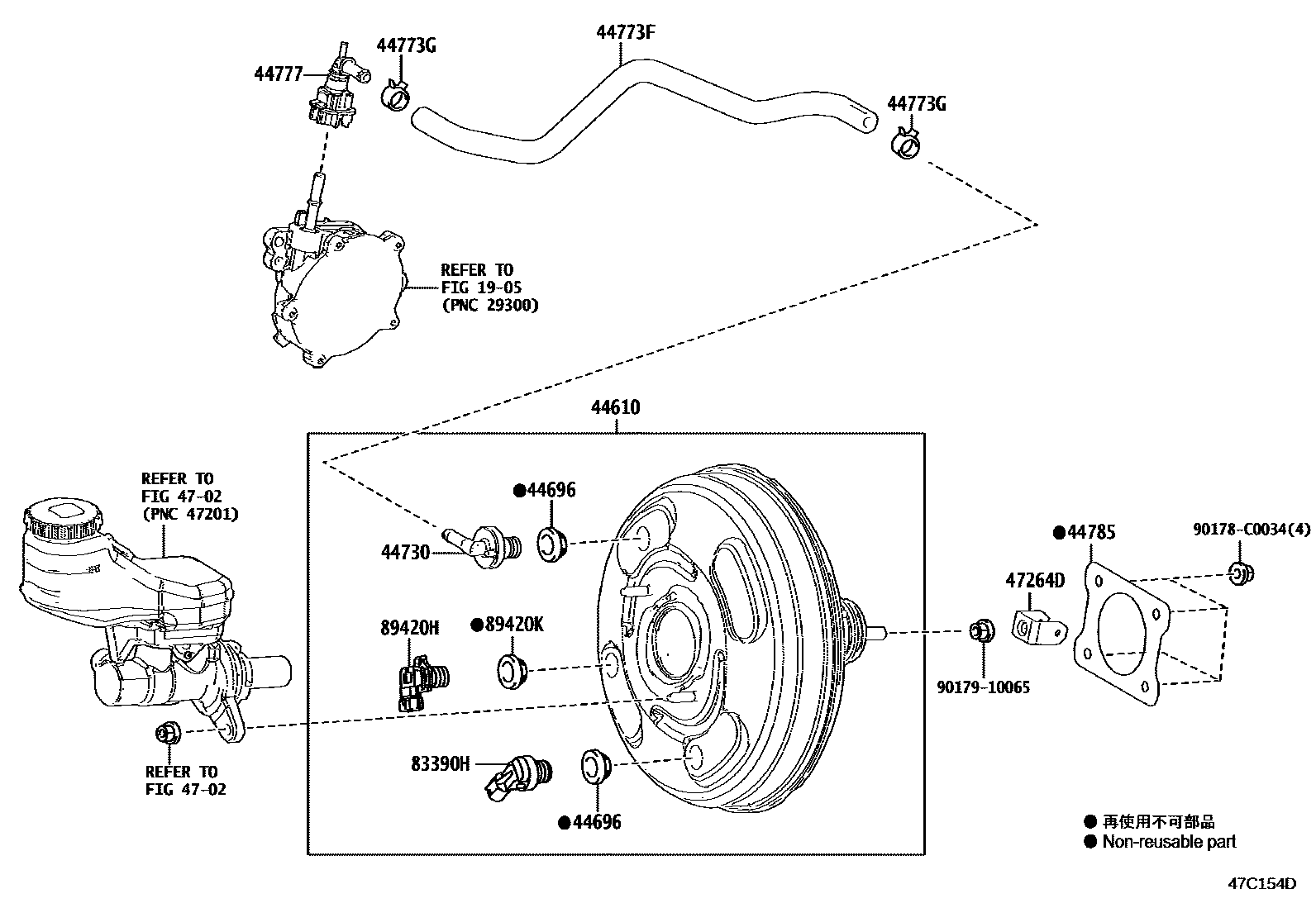

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-0E270iMXAA5#202304-202409

main44610-0R140iMXAA5#201911-202104

main44610-0R141iMXAA5#202104-202303

44696GROMMET, CHECK VALVE

main90016-AT003iMXAA5#¥120202304-202409

main90080-48071iMXAA5#201911-202303

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iMXAA5#¥1,300201911-202409

44773FHOSE, UNION TO CHECK VALVE

main44773-0R030iMXAA5#201911-202409

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-C0034iMXAA5#201911-202409

(L)

main90467-16014iMXAA5#¥230201911-202409

(J)

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-06020iMXAA5#202208-202409

(L)

main44777-33010iMXAA5#¥520202208-202409

(J)

main44777-33010iMXAA5#¥520201911-202208

44785GASKET, BRAKE BOOSTER

main44785-02050iMXAA5#201911-202409

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0R030iMXAA5#201911-202409

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iMXAA5#¥3,780201911-202104

89420HSENSOR ASSY, VACUUM

main89421-52020iMXAA5#¥5,900201911-202303

main89421-71040iMXAA5#¥5,900202304-202409

89420KGROMMET, VACUUM SENSOR

main90016-AT003iMXAA5#¥120202304-202409

main90080-48071iMXAA5#201911-202303

90178C0034

main90178-C0034

9017910065

main90179-10065¥90

15 parts on this diagram · 2 diagrams in section
