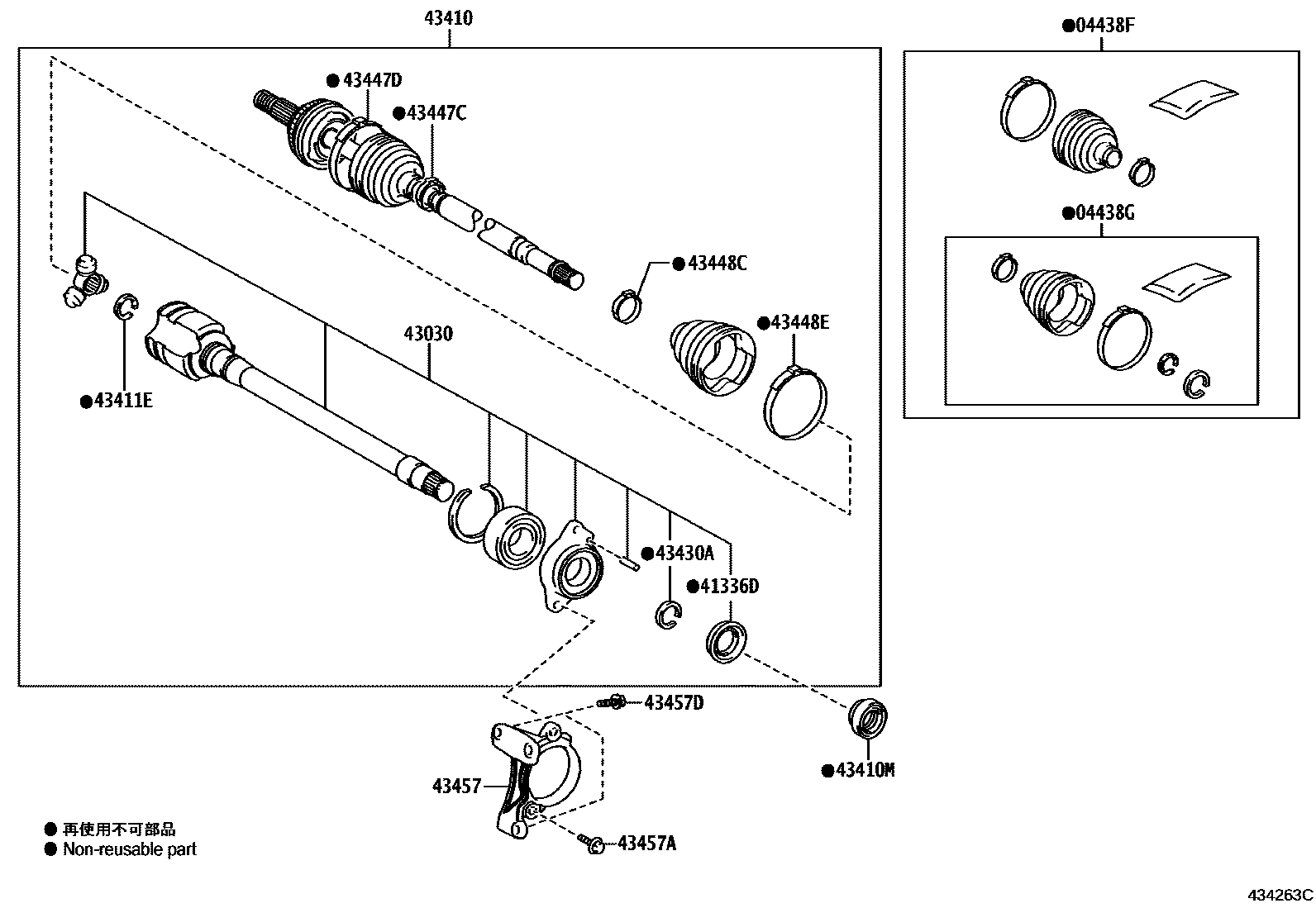

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
PNC 43448C=TYPE A
PNC 43448C=TYPE B
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
PNC 43448C=TYPE A
PNC 43448C=TYPE B
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
PNC 43448C=TYPE A
PNC 43448C=TYPE B
43410SHAFT ASSY, FRONT DRIVE, RH
PNC 43448C=TYPE B
PNC 43448C=TYPE A
43410MOIL SEAL, FRONT DRIVE SHAFT, RH
TMH:REFER 34-01
TMCAP:REFER 34-01
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
(J)
(J),PNC43448C=TYPE A
PNC 43448C=TYPE B
(L)
(L),PNC43448C=TYPE A
43430ARING, SHAFT SNAP
PNC 43448C=TYPE B
(J)
(J)
(J),PNC43448C=TYPE A
(L)
(L)
(L),PNC43448C=TYPE A
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
TYPE B:REFER ILLUST.
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
TYPE B:REFER ILLUST.
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
(L)
(L),TYPE A:REF ILL.
(J),TYPE A:REF ILL.
(J)
TYPE B:REFER ILLUST.
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
(L)
(L),TYPE A:REF ILL.
(J)
(J),TYPE A:REF ILL.
TYPE B:REFER ILLUST.
43457BRACKET, DRIVE SHAFT BEARING
43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
*10-1.25PX22-19.5
*10-1.25PX19.8-8.3
43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
15 parts on this diagram · 6 diagrams in section
