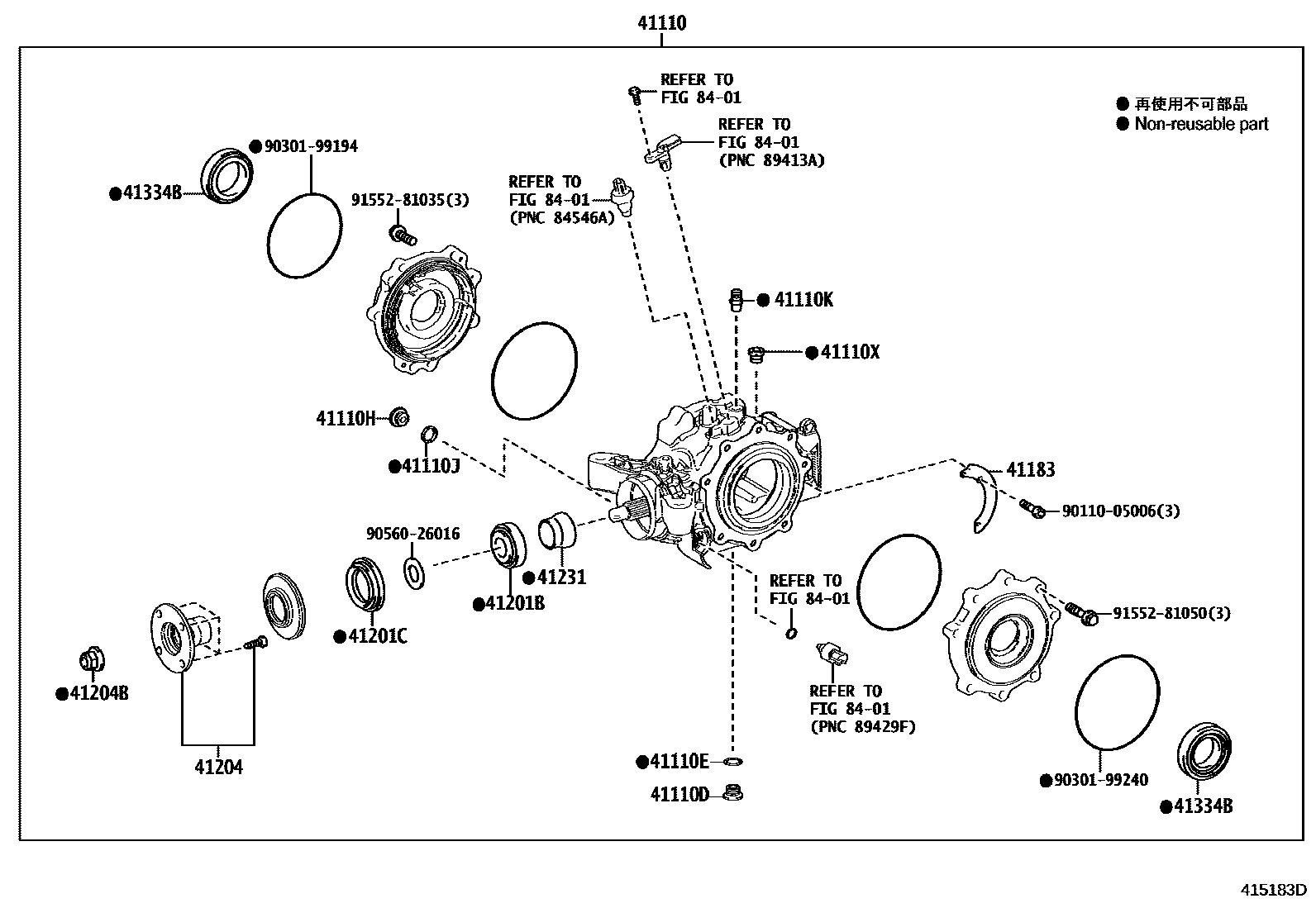

REAR AXLE HOUSING & DIFFERENTIAL
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=38:17=2.235
*FGR=41:18=2.277
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)
41110XPLUG (FOR DIFFERENTIAL INSPECTION)
41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:18=2.277
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
OD=41.6
OD=33.5
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
8401
9011005006
main90110-05006
9030199194
main90301-99194
9030199240
main90301-99240
9056026016
main90560-26016
9155281035
main91552-81035
9155281050
main91552-81050
22 parts on this diagram · 5 diagrams in section
