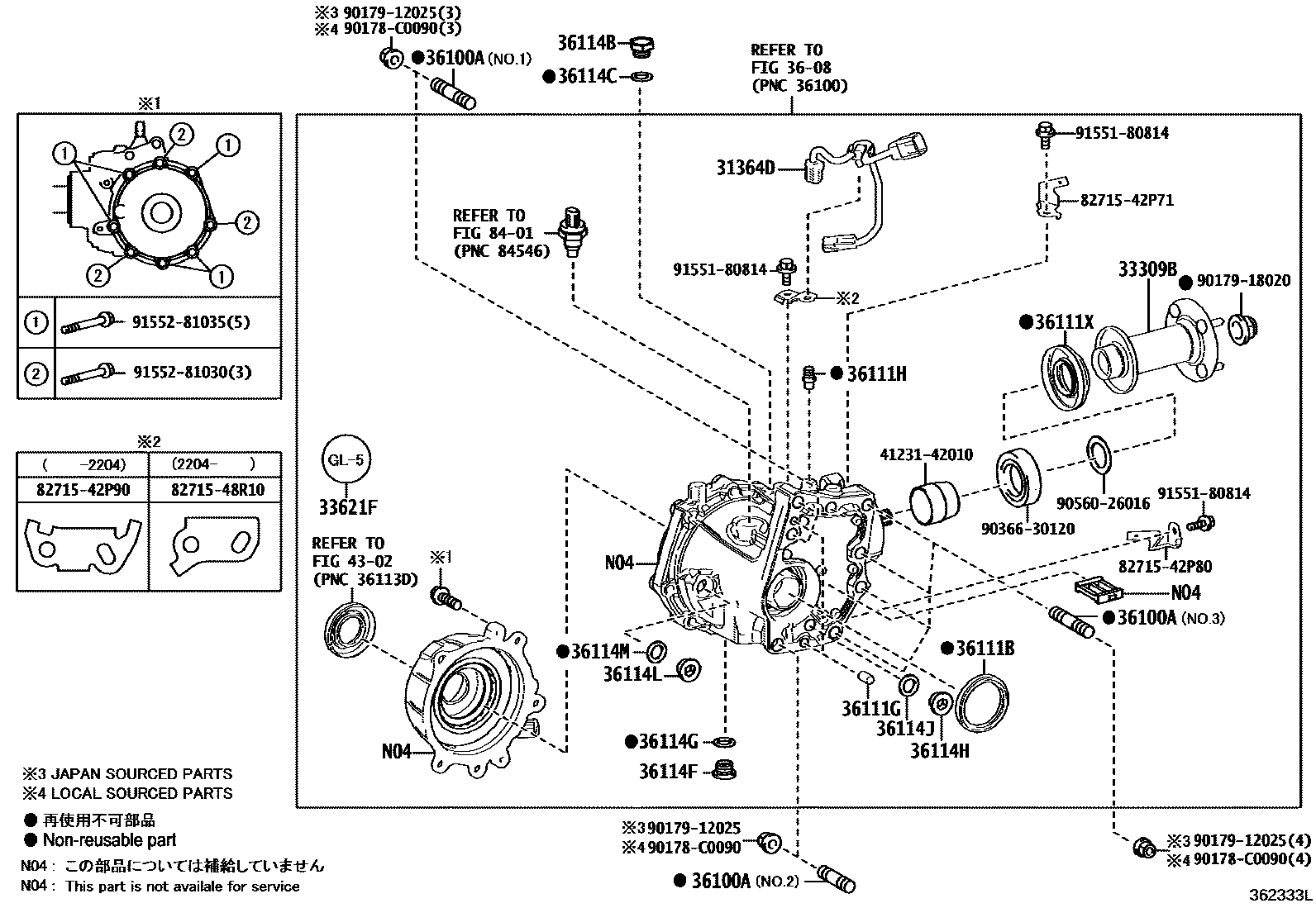

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

31364DWIRE, CLUTCH CONTROL SOLENOID

main31364-42010iMXAA54..G201911-202203

main31364-48060iMXAA54..G202203-202409

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-42010iMXAA54..G201911-202409

33621FLABEL, TRANSAXLE OIL INFORMATION

main33621-48020iMXAA54..G201911-202203

3608

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12041iMXAA54201911-202409

S=30 & 22,L=64,NO.3:REFER ILLUST.

main90116-12051iMXAA54202304-202409

S=22 & 22,L=73,(J),NO.1:REFER ILL.

main90116-12051iMXAA54201911-202203

S=22 & 22,L=73,NO.1:REFER ILLUST.

main90116-12052iMXAA54202304-202409

S=22 & 22,L=53,(J),NO.2:REFER ILL.

main90116-12052iMXAA54201911-202203

S=22 & 22,L=53,NO.2:REFER ILLUST.

main90116-C0003iMXAA54202304-202409

S=22 & 22,L=73,(L),NO.1:REFER ILL.

main90116-C0003iMXAA54202204-202303

S=22 & 22,L=73,NO.1:REFER ILLUST.

main90116-C0004iMXAA54202204-202303

S=22 & 22,L=53,NO.2:REFER ILLUST.

main90116-C0004iMXAA54202304-202409

S=22 & 22,L=53,(L),NO.2:REFER ILL.

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-55002iMXAA54201911-202409

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017iMXAA54..M201911-202409

L=20,OD=10

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03031iMXAA54..G201911-202409

main90930-03133iMXAA54..M201911-202409

36111XSEAL, OIL (FOR TRANSFER CASE), NO.2

main90311-37005iMXAA54..G201911-202409

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iMXAA54201911-202409

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iMXAA54201911-202409

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18035iMXAA54..G201911-202409

main90341-18051iMXAA54..M201911-202409

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iMXAA54201911-202409

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-18046iMXAA54..G201911-202203

sub90341-18044

36114JGASKET, NO.2 (FOR TRANSFER CASE)

main12157-10010iMXAA54..G201911-202203

36114LPLUG, FILLER(FOR TRANSFER)

main90341-18023iMXAA54201911-202409

36114MGASKET (FOR TRANSFER FILLER PLUG)

main12157-10010iMXAA54201911-202409

4302

8401

4123142010SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-42010

8271542P71BRACKET,WIRING HARNESS CLAMP

main82715-42P71

8271542P80BRACKET,WIRING HARNESS CLAMP

main82715-42P80

8271542P90BRACKET,WIRING HARNESS CLAMP

main82715-42P90

8271548R10BRACKET,WIRING HARNESS CLAMP

main82715-48R10

90178C0090

main90178-C0090

9017912025

main90179-12025

9017918020

main90179-18020

9036630120

main90366-30120

9056026016

main90560-26016

9155180814

main91551-80814

9155281030

main91552-81030

9155281035

main91552-81035

32 parts on this diagram · 2 diagrams in section
