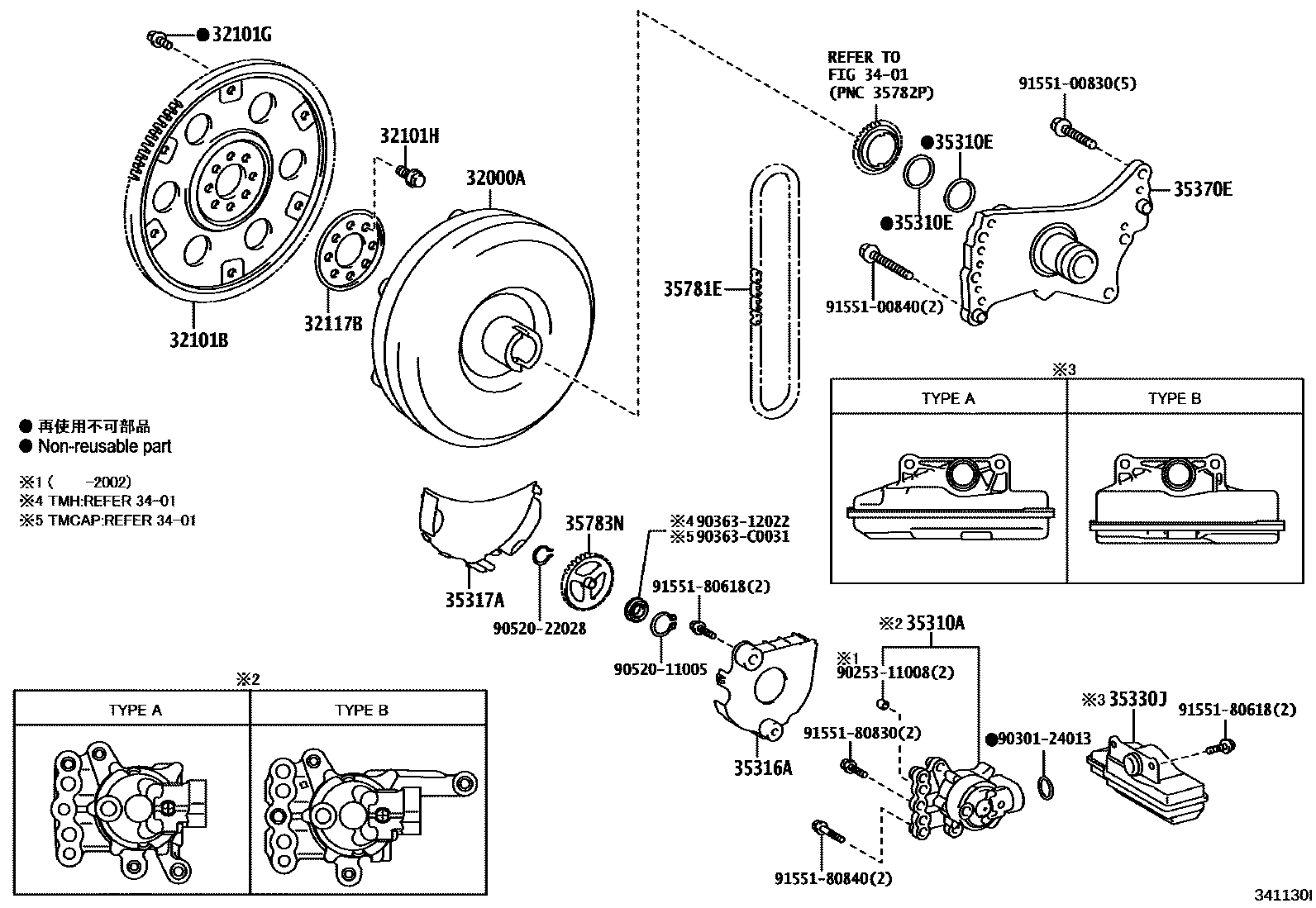

TORQUE CONVERTER, FRONT OIL PUMP(CVT)
32000ACONVERTER ASSY, TORQUE
TMCAP:REFER 34-01
TMH:REFER 34-01
TMH:REFER FIG.34-01
32101BGEAR SUB-ASSY, DRIVE PLATE & RING
(L)
(J)
32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3,BLACK
*9-1.25PX12.4-8.4,SILVER WHITE
32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
32117BSPACER, DRIVE PLATE, REAR
(L)
(J)
3401
35310APUMP ASSY, FRONT OIL
TYPE A:REFER ILLUST.
T/P A,TMCAP:REF34-01
T/P A,TMH:REF.34-01
TYPE B:REFER ILLUST.
T/P B,TMH:REF.34-01
T/P B,TMCAP:REF34-01
TMH:REFER FIG.34-01,TMCAP:REFER 34-01
35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)
(L),TMCAP:REF. 34-01
TMH:REFER FIG.34-01,(J),TMCAP:REF. 34-01
TMH:REFER 34-01
TMCAP:REFER 34-01
TMH:REFER FIG.34-01
(J),TMCAP:REF. 34-01
35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1
TMH:REFER FIG.34-01
TMCAP:REFER 34-01
TMH:REFER 34-01
TMCAP:REFER 34-01
35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2
TMH:REFER FIG.34-01
TMCAP:REFER 34-01
TMH:REFER 34-01
TMCAP:REFER 34-01
35330JSTRAINER ASSY, OIL
T/P A,TMCAP:REF34-01
TYPE A:REFER ILLUST.
T/P A,TMH:REF.34-01
T/P B,TMH:REF.34-01
TMH:REFER FIG.34-01
TYPE B:REFER ILLUST.
TMCAP:REFER 34-01
T/P B,TMCAP:REF34-01
35370ESHAFT ASSY, STATOR (CVT)
TMH:REFER FIG.34-01,TMCAP:REFER 34-01
TMH:REFER 34-01
TMCAP:REFER 34-01
35781ECHAIN, TRANSMISSION DRIVE
TMCAP:REFER 34-01
TMH:REFER 34-01
TMCAP:REFER 34-01
TMH:REFER 34-01
TMH:REFER FIG.34-01
35783NSPROCKET, DRIVEN
TMH:REFER FIG.34-01,TMCAP:REFER 34-01
TMH:REFER 34-01
TMCAP:REFER 34-01
9025311008
9030124013
9036312022
90363C0031
main90363-C0031
9052011005
9052022028
9155100830
9155100840
9155180618
9155180830
9155180840
25 parts on this diagram · 3 diagrams in section
