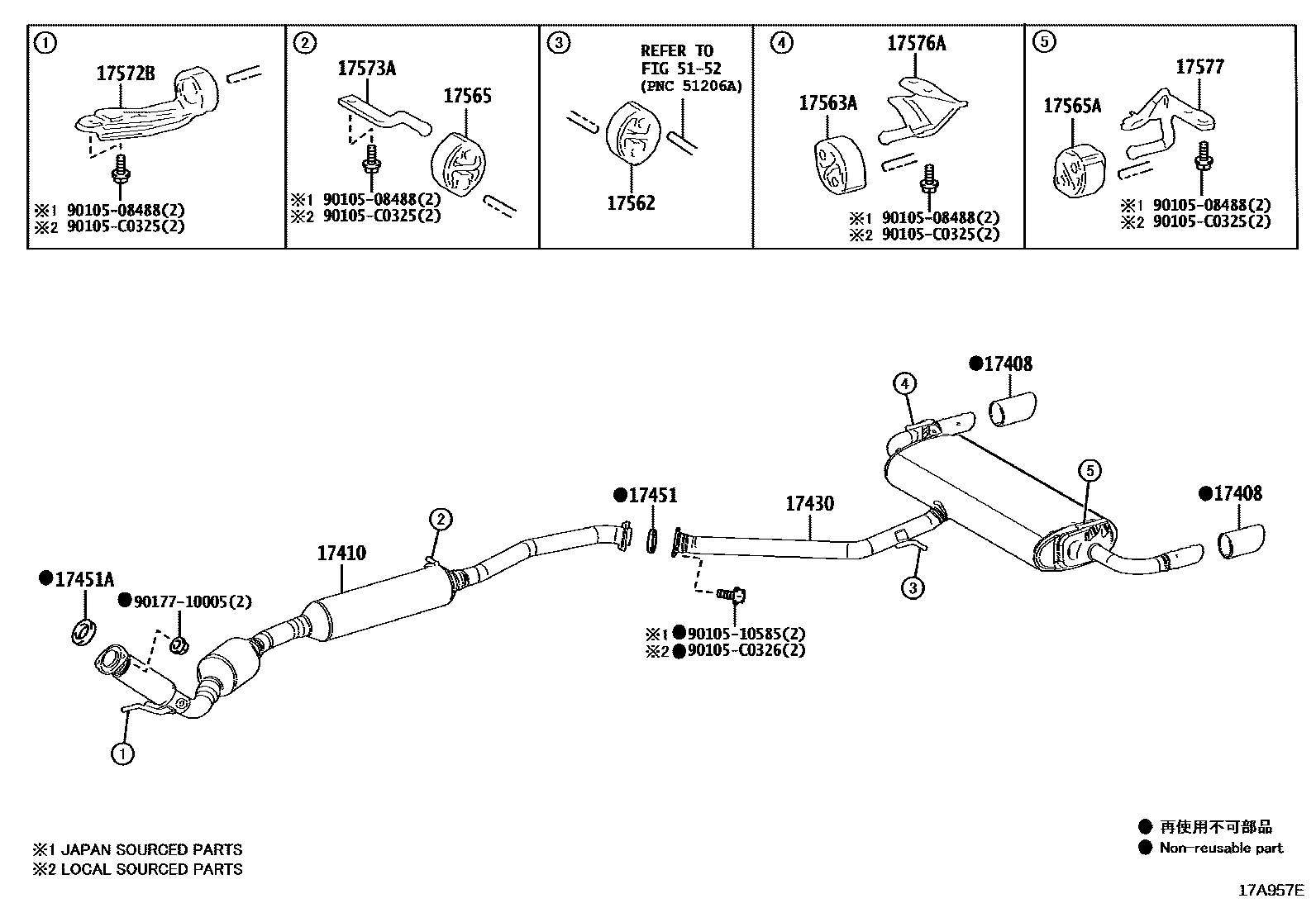

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17451AGASKET, EXHAUST PIPE, NO.2
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
5152
9010508488
main90105-08488
9010510585
main90105-10585
90105C0325
main90105-C0325
90105C0326
main90105-C0326
9017710005
main90177-10005
19 parts on this diagram · 2 diagrams in section
