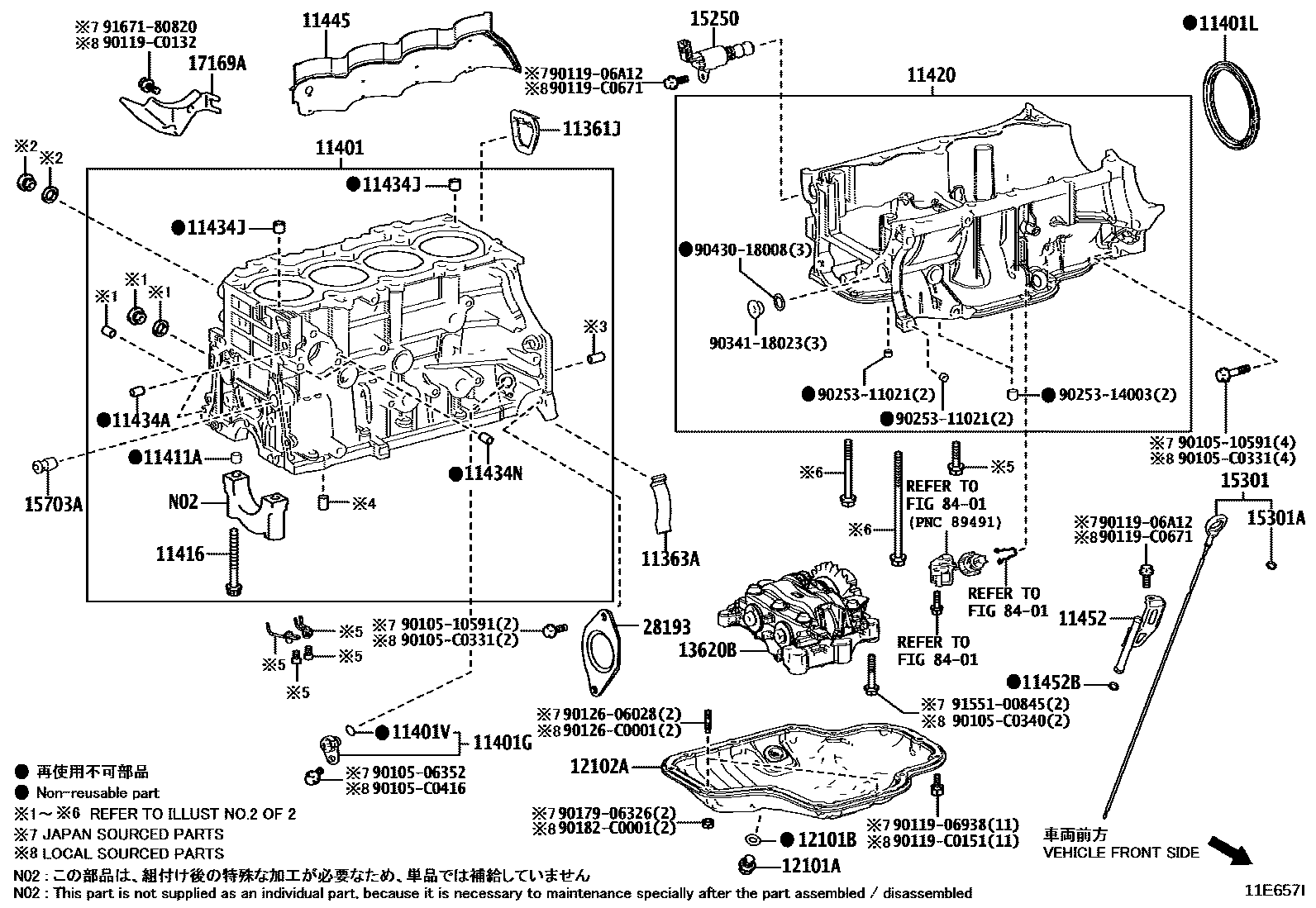

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
(J)
(L)
11363ACOVER, FLYWHEEL HOUSING SIDE
(J)
(L)
11401BLOCK SUB-ASSY, CYLINDER
*636
*625
11401GSENSOR, CRANK POSITION
(J)
(J)
*636
*625
(L)
(L)
11401LSEAL, ENGINE REAR OIL
*636
*625
11401VO-RING, CRANK POSITION SENSOR
*625
*636
11411APIN, RING(FOR CYLINDER BLOCK NO.1 )
*636
*625
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*636
*625
11420CRANKCASE ASSY, STIFFENING
(J)
*636
*625
(L)
(L)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6
L=14,OD=6,*636
L=14,OD=6,*625
11434JPIN, RING (FOR CYLINDER HEAD SET)
(J)
*636
(L)
*625
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
*636
*625
11445SPACER, CYLINDER BLOCK WATER JACKET
*636
*625
11452GUIDE, OIL LEVEL GAGE
*636
*625
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
(L)
(L),*625
*625
(J),*625
(J)
*636
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
*636
*625
12101BGASKET(FOR OIL PAN DRAIN PLUG)
*636
*625
12102APAN SUB-ASSY, OIL, NO.2
*636
*625
13620BBALANCER ASSY, ENGINE
*636
*625
15250VALVE ASSY, OIL PRESSURE CONTROL
*625
*636
*625
15301GAGE SUB-ASSY, OIL LEVEL
*636
*625
15301ARING, O(FOR OIL LEVEL GAGE)
(L),*625
(J),*625
*636
15703AVALVE SUB-ASSY, OIL NOZZLE
(J)
*636
*625
(J),*625
(L),*625
(L)
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
*636
*625
28193INSULATOR, STARTER HOLE
8401
9010506352
9010510591
90105C0331
main90105-C0331
90105C0340
main90105-C0340
90105C0416
main90105-C0416
9011906938
9011906A12
90119C0132
main90119-C0132
90119C0151
main90119-C0151
90119C0671
main90119-C0671
9012606028
90126C0001
main90126-C0001
9017906326
90182C0001
main90182-C0001
9025311021
9025314003
9034118023
9043018008
9155100845
9167180820
47 parts on this diagram · 4 diagrams in section
