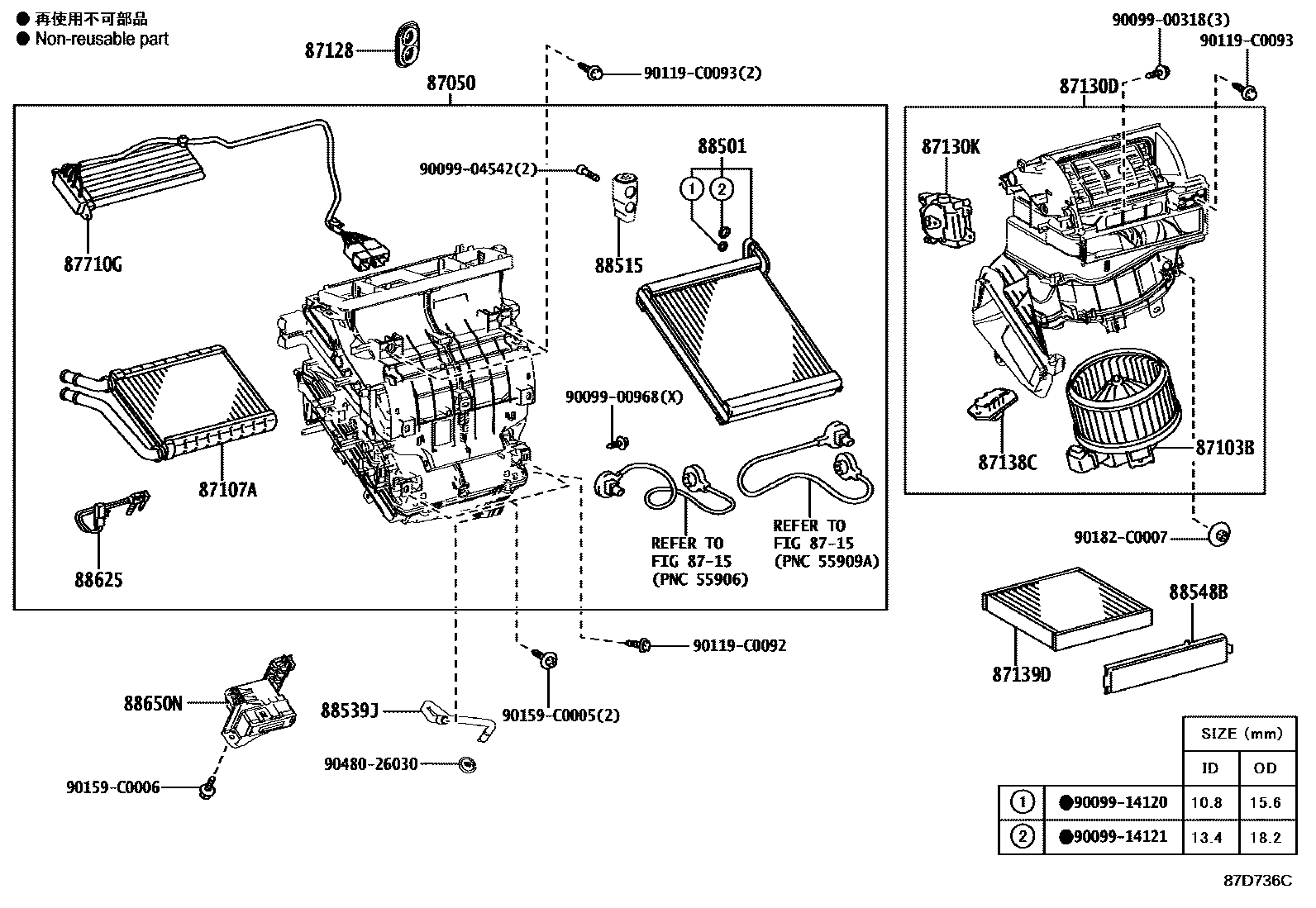

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO AIR CONDITIONER

87050RADIATOR ASSY, AIR CONDITIONER

main87050-02B50iZSA42..X201308-201607

main87050-0R040iASA44,ZSA4#..G,M,Q201308-201607

main87050-0R070iZSA4#..G,M201607

main87050-0R080iZSA42..X201607

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02180iZSA42..X201308-201607

main87103-0R020iASA44,ZSA4#..G,M,Q201308-201607

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02220iASA44,ZSA4#201308-201607

87128GROMMET, HEATER

main87128-02020iASA44,ZSA4#201308-201607

87130DBLOWER ASSY

main87130-02470iZSA42..X201308-201607

main87130-0R040iASA4#,ZSA4#..G,M,Q201308-201607

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-02330iZSA42..X201308-201607

main87106-02340iASA4#,ZSA4#..G,M,Q201308-201607

87138CRESISTOR, BLOWER

main87138-02120iZSA42..X201308-201607

87139DELEMENT, AIR REFINER

main87139-0R020iASA44,ZSA4#201308-201607

MICRO DUST FILTER

main87139-50100iASA44,ZSA4#201308-201607

*DPF

8715

87710GQUICK HEATER ASSY

main87710-12020iASA44,ZSA4#201308-201607

main87710-42040iZSA4#201607

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02212iASA44,ZSA4#201308-201607

88515VALVE, COOLER EXPANSION

main88515-02130iZSA42..X201308-201607

main88515-0D200iASA44,ZSA4#..G,M,Q201308-201607

88539JHOSE, DRAIN COOLER

main88539-0R040iASA44,ZSA4#201308-201607

88548BCASE, AIR FILTER

main88548-02100iASA44,ZSA4#201308-201607

88625THERMISTOR, COOLER, NO.1

main88625-0D100iASA44,ZSA4#201308-201607

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0R180iASA44,ZSA44..G,Q201308-201607

main88650-0R190iASA44,ZSA4#..M201308-201607

main88650-0R200iZSA42..X201308-201607

main88650-0R250iASA4#,ZSA4#..G,M,Q201607

main88650-0R260iZSA42..X201607

9009900318

main90099-00318

9009900968

main90099-00968

9009904542

main90099-04542

9009914120

main90099-14120

9009914121

main90099-14121

90119C0092

main90119-C0092

90119C0093

main90119-C0093

90159C0005

main90159-C0005

90159C0006

main90159-C0006

90182C0007

main90182-C0007

9048026030

main90480-26030

27 parts on this diagram · 2 diagrams in section
