ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-0R320iASA44,ZSA4#..G,M,X201308-201607

main86101-0R331iZSA4#..G201607

AUDIO-AVN & JBL & *BT

main86101-0R331iASA44..Q201308-201607

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0R300iASA44,ZSA4#201308-201607

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0R050iASA44,ZSA4#201308-201410

main86300-0R060-A0iASA44,ZSA4#201410-201607

WHITE PEARL CS.,070

main86300-0R060-B0iASA44,ZSA4#201410-201607

SILVER ME.,1F7

main86300-0R060-C0iASA4#,ZSA4#201410-201607

BLACK MC.,209

main86300-0R060-D0iASA44,ZSA4#201410-201607

RED M.M.,3R3

main86300-0R060-D1iASA4#,ZSA4#201607

DK.RED M.M.,3T0

main86300-0R060-E0iASA44,ZSA4#201410-201710

ORANGE ME.,4R8

main86300-0R060-E1iASA44,ZSA4#201410-201607

DK. BROWN M.M.,4U3

main86300-0R060-E2iASA44,ZSA4#201410-201607

AVANT-GARDE BRONZE ME.,4V8

main86300-0R060-J0iASA4#,ZSA4#201607

BLUE ME.,8X7

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-0R030iASA44,ZSA4#201308-201410

86396NUT, ANTENNA

main86396-47010iASA44,ZSA4#201308-201607

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

90119C0208

main90119-C0208

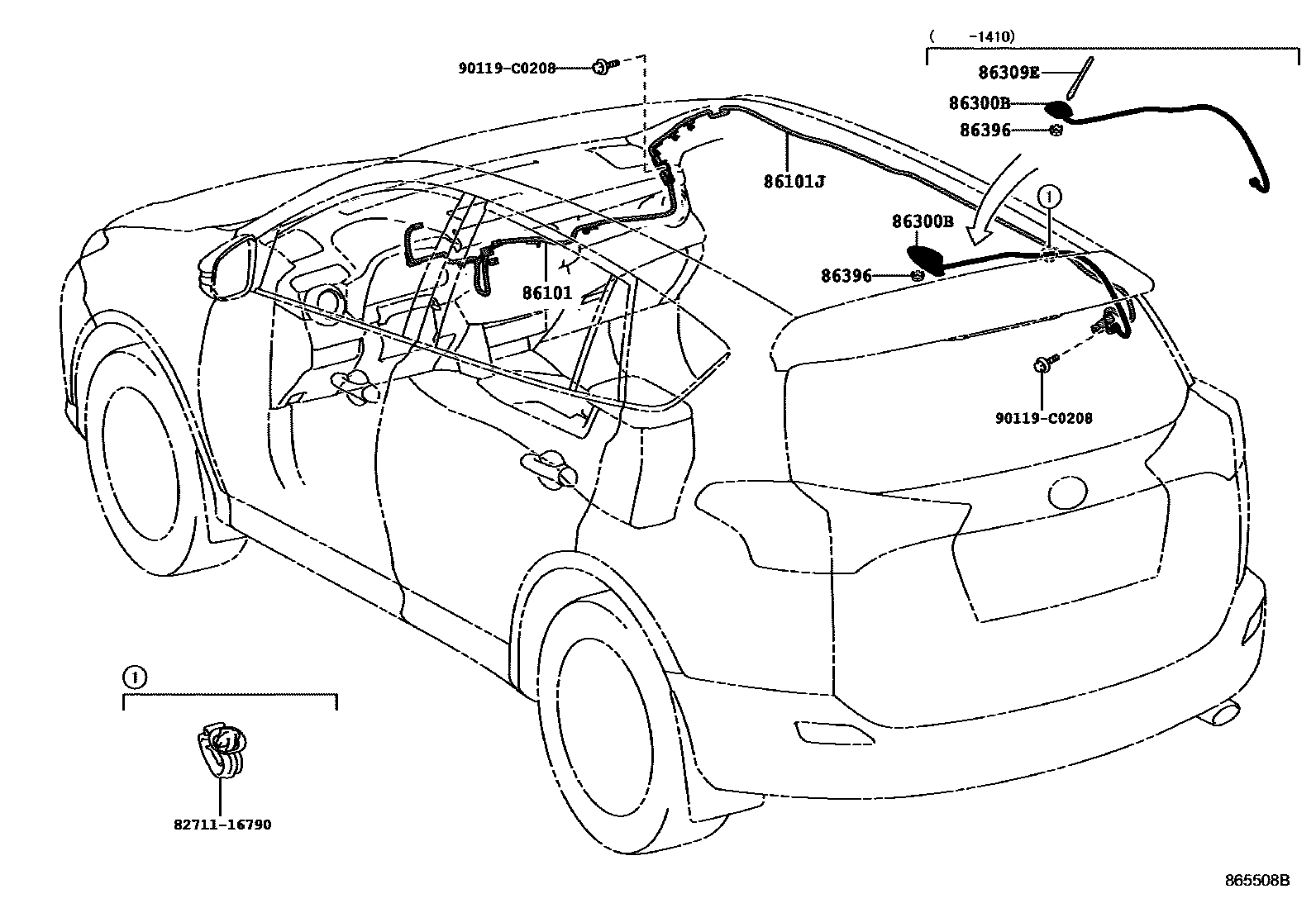

7 parts on this diagram · 1 diagram in section
