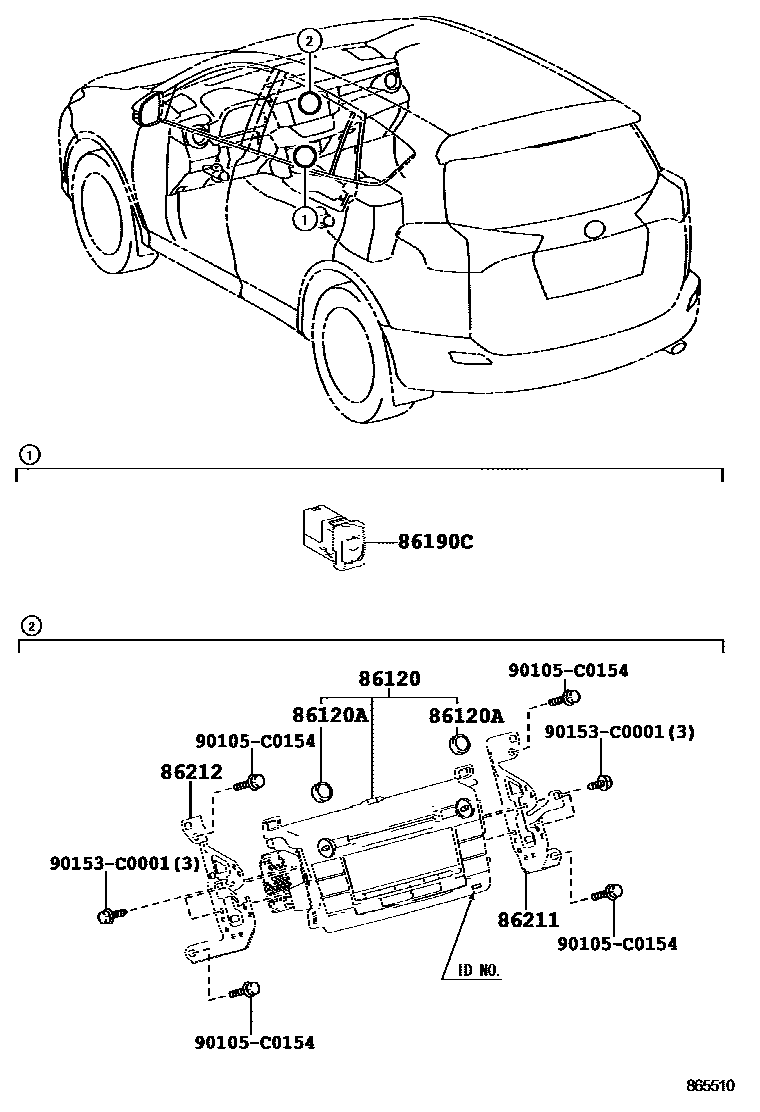

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-0R140iZSA42..X201308-201409

FUJITSU TEN,ID100188

sub86120-0R170

main86120-0R170iZSA42..X201410-201607

FUJITSU TEN,ID100572

main86120-0R180iZSA42..X201607

FUJITSU TEN,ID100643

86120AKNOB, RADIO RECEIVER SWITCH

main90010-24518iZSA42..X201308-201607

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0R020iASA44,ZSA4#201308-201607

86211BRACKET, RADIO, NO.1

main86211-0R070iASA44,ZSA4#201308-201607

86212BRACKET, RADIO, NO.2

main86212-0R070iASA44,ZSA4#201308-201607

90105C0154

main90105-C0154

90153C0001

main90153-C0001

7 parts on this diagram · 3 diagrams in section
