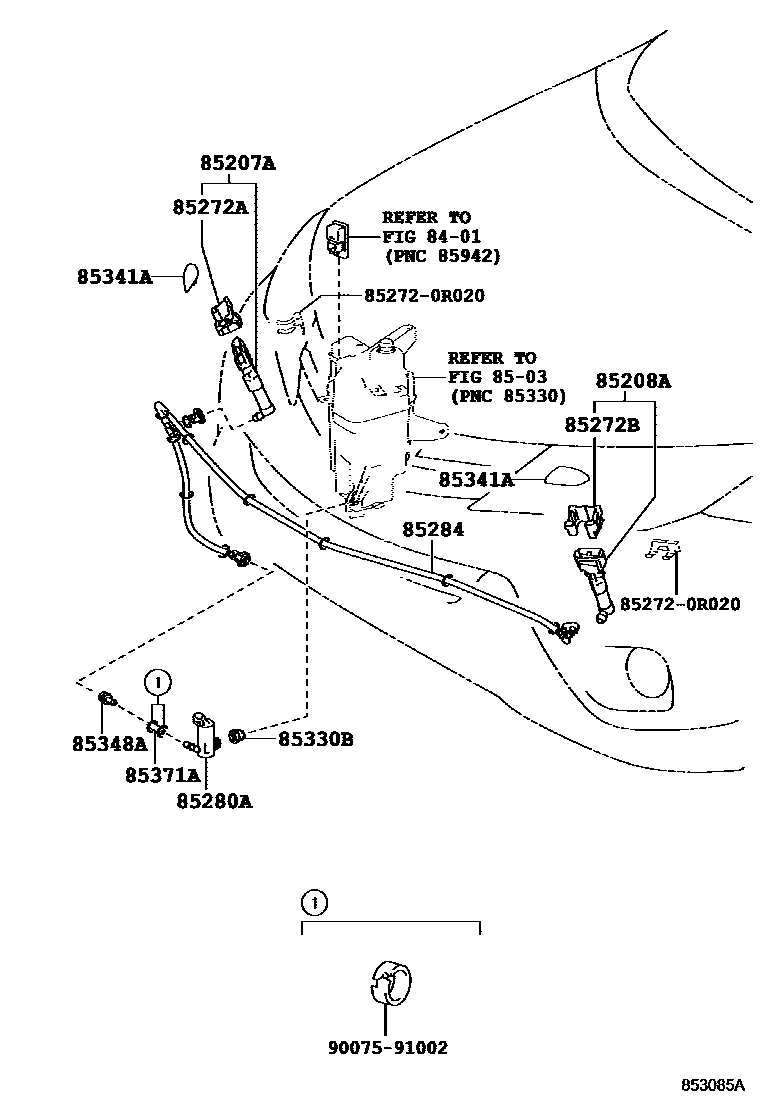

HEADLAMP CLEANER
8401
8503
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85284HOSE ASSY, HEADLAMP CLEANER WASHER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE
HEAD LAMP-DISCHARGE & WITH(AUTOMATIC HIGH BEAM),WHITE PEARL CS.,070,RH
sub85353-0R020
HEAD LAMP-DISCHARGE & WITH(AUTOMATIC HIGH BEAM),WHITE PEARL CS.,070,RH
sub85353-0R900
HEAD LAMP-DISCHARGE & WITH(AUTOMATIC HIGH BEAM),SILVER ME.,1F7,RH
sub85353-0R900
HEAD LAMP-DISCHARGE & WITH(AUTOMATIC HIGH BEAM),BLACK MC.,209,RH
sub85353-0R900
HEAD LAMP-DISCHARGE & WITH(AUTOMATIC HIGH BEAM),RED M.M.,3R3,RH
sub85353-0R900
HEAD LAMP-DISCHARGE & WITH(AUTOMATIC HIGH BEAM),ORANGE ME.,4R8,RH
sub85353-0R900
HEAD LAMP-DISCHARGE & WITH(AUTOMATIC HIGH BEAM),DK. BROWN M.M.,4U3,RH
sub85353-0R900
HEAD LAMP-DISCHARGE & WITH(AUTOMATIC HIGH BEAM),AVANT-GARDE BRONZE ME.,4V8,RH
sub85353-0R900
HEAD LAMP-DISCHARGE & WITH(AUTOMATIC HIGH BEAM),WHITE PEARL CS.,070,LH
sub85354-0R020
HEAD LAMP-DISCHARGE & WITH(AUTOMATIC HIGH BEAM),WHITE PEARL CS.,070,LH
sub85354-0R900
HEAD LAMP-DISCHARGE & WITH(AUTOMATIC HIGH BEAM),SILVER ME.,1F7,LH
sub85354-0R900
HEAD LAMP-DISCHARGE & WITH(AUTOMATIC HIGH BEAM),BLACK MC.,209,LH
sub85354-0R900
HEAD LAMP-DISCHARGE & WITH(AUTOMATIC HIGH BEAM),RED M.M.,3R3,LH
sub85354-0R900
HEAD LAMP-DISCHARGE & WITH(AUTOMATIC HIGH BEAM),ORANGE ME.,4R8,LH
sub85354-0R900
HEAD LAMP-DISCHARGE & WITH(AUTOMATIC HIGH BEAM),DK. BROWN M.M.,4U3,LH
sub85354-0R900
HEAD LAMP-DISCHARGE & WITH(AUTOMATIC HIGH BEAM),AVANT-GARDE BRONZE ME.,4V8,LH
sub85354-0R900
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=35
852720R020CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-0R020
9007591002
main90075-91002
14 parts on this diagram · 1 diagram in section
