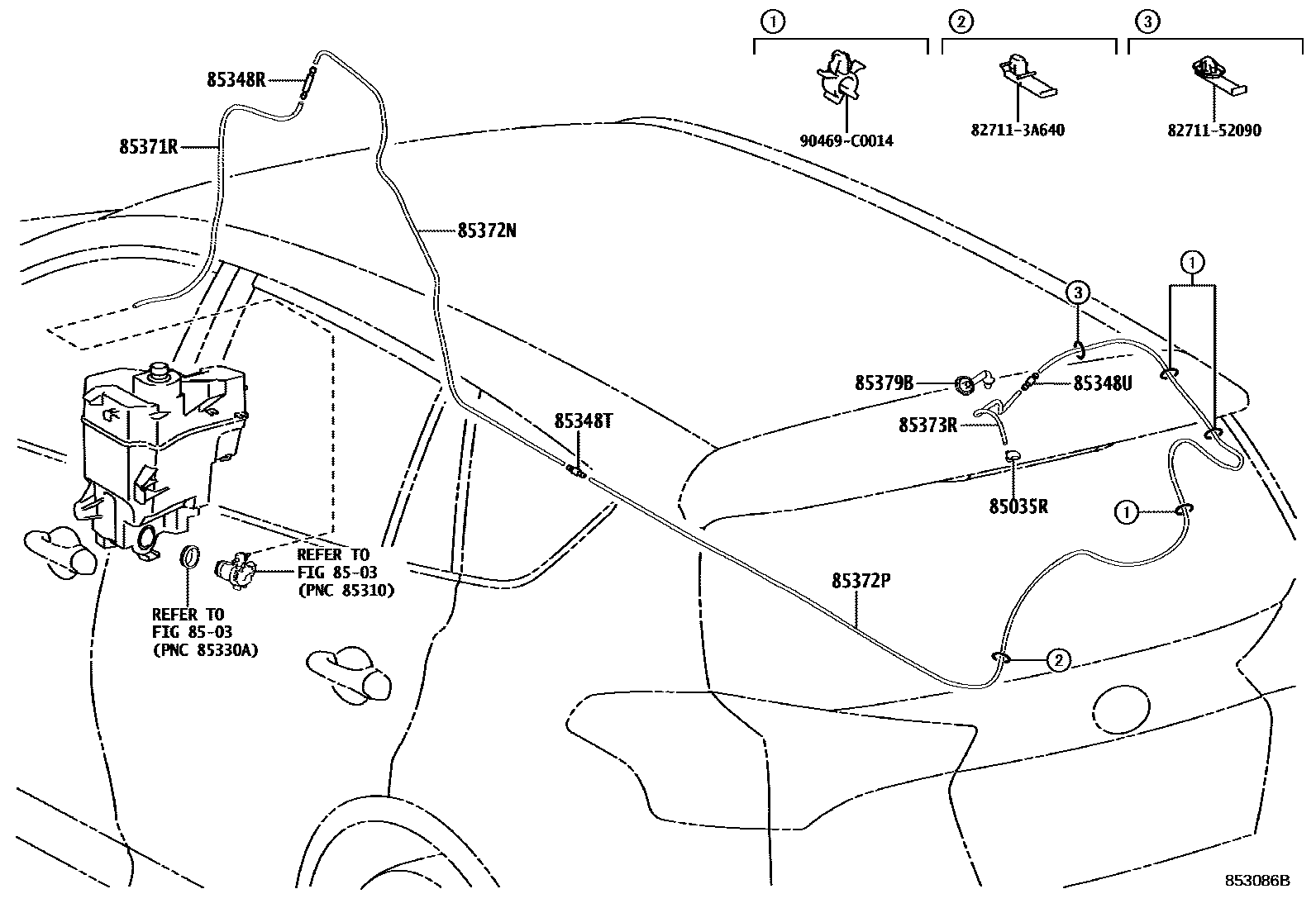

REAR WASHER

8503

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-42020iASA44,ZSA4#201308-201607

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-0R060iASA44,ZSA4#201308-201607

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-0D030iASA44,ZSA4#201308-201607

85348UJOINT, REAR WASHER HOSE, NO.3

main85375-0D030iASA44,ZSA4#201308-201607

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90068-33191iASA44,ZSA4#201308-201607

L=840

main90068-33191iZSA44..G201410-201607

L=840,HEAD LAMP-DISCHARGE & WITH(AUTOMATIC HIGH BEAM)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90068-33197iASA44,ZSA4#201308-201607

L=1200

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90068-33198iASA44,ZSA4#201308-201607

L=3450

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90068-33199iASA44,ZSA4#201308-201607

L=350

85379BGROMMET, WASHER, A

main85373-44010iASA44,ZSA4#201308-201607

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

90469C0014

main90469-C0014

13 parts on this diagram · 1 diagram in section
