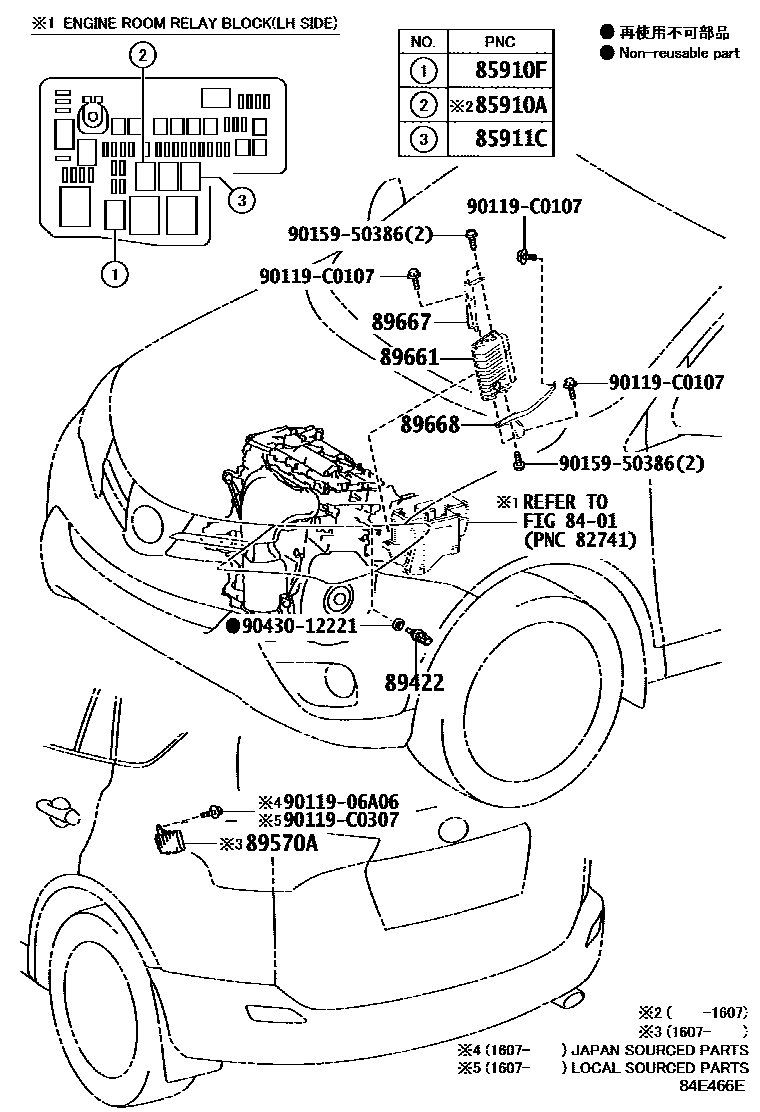

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-T2005iASA44,ZSA4#201308-201607

85910FRELAY, COMPUTER (FOR EFI)

main90987-02027iASA4#,ZSA4#201607

(J)

main90987-T2005iASA4#,ZSA4#201607

(L)

main90987-T2005iASA44,ZSA4#201308-201607

85911CRELAY, EFI 2

main90987-02027iASA4#,ZSA4#201607

(J)

main90987-T2005iASA4#,ZSA4#201607

(L)

main90987-T2005iASA44201308-201607

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-0D010iASA44,ZSA4#201308-201607

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-42030iASA4#,ZSA4#201607

89661COMPUTER, ENGINE CONTROL

main89661-0R330iASA44..M201308-201607

VSC-WITHOUT

main89661-0R340iZSA42..6F201308-201607

main89661-0R350iZSA42..CVT201308-201607

main89661-0R360iZSA44201308-201607

main89661-0R370iASA44201308-201607

main89661-0R550iASA4#201607

main89661-0R560iZSA42201607

main89661-0R570iZSA44201607

main89661-0R670iZSA42201806

EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)

main89661-0R680iZSA44201806

EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-0R020iASA44,ZSA4#201308-201607

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0R020iASA44,ZSA4#201308-201607

9011906A06

main90119-06A06

90119C0107

main90119-C0107

90119C0307

main90119-C0307

9015950386

main90159-50386

9043012221

main90430-12221

14 parts on this diagram · 2 diagrams in section
