INTERIOR LAMP

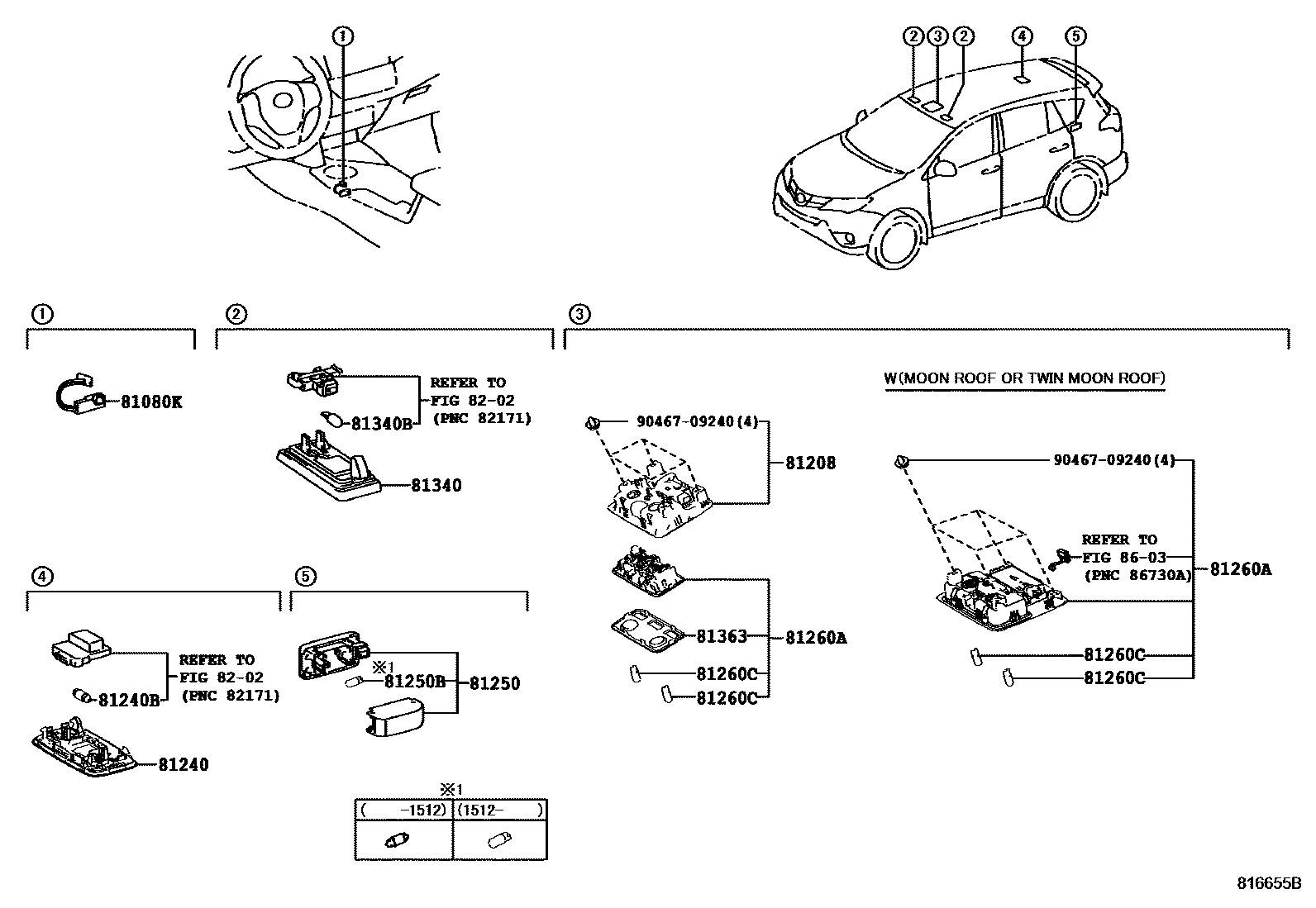

Parts diagram
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
main81080-42020i201308-201607
81208LAMP SUB-ASSY, MAP
main81208-42010-B0i201308-201607
LT.GRAY,TRIM2#,4#
main81208-42010-B0i201607-201906
LT.GRAY,TRIM1#,2#,4#
81240LAMP ASSY, ROOM, NO.1
main81240-35020-B0i201308-201607
LT.GRAY,TRIM2#,4#
sub81240-35020
sub81240-42020
main81240-35020-B0i201308-201905
LT.GRAY,TRIM2#,3#,4#
sub81240-35020
sub81240-42020
main81240-35020-B0i201607-201905
LT.GRAY,TRIM1#,2#,3#,4#
sub81240-35020
sub81240-42020
main81240-35020-B0i201607-201905
LT.GRAY,TRIM1#,2#,4#
sub81240-35020
sub81240-42020
main81240-42020-B0i201906
LT.GRAY,TRIM2#,3#,4#
main81240-42020-B0i201906
LT.GRAY,TRIM2#,4#
81240BBULB, ROOM LAMP, NO.1
main90981-14011i201308-201607
12V 8W
81250LAMP ASSY, ROOM, NO.2
main81250-48010i201308-201512
main81330-58010i201512-201607
81250BBULB, ROOM LAMP, NO.2
main99132-12050i201512-201607
12V 5W
main99132-13050i201308-201512
12V 5W
81260ALAMP ASSY, MAP
main81260-0R160-B0i201308-201607
LT.GRAY,TRIM2#,4#
sub81260-0R161
main81260-0R160-B0i201308-201607
LT.GRAY,TRIM2#,3#,4#
sub81260-0R161
main81260-0R160-B0i201607-201905
LT.GRAY,TRIM1#,2#,3#,4#
sub81260-0R161
main81260-0R161-B0i201906
LT.GRAY,TRIM2#,4#
main81260-0R161-B0i201906
LT.GRAY,TRIM2#,3#,4#
main81260-0R170-B0i201607-201905
LT.GRAY,TRIM1#,2#,3#,4#
sub81260-0R171
main81260-0R170-B0i201308-201905
LT.GRAY,TRIM2#,3#,4#
sub81260-0R171
main81260-0R171-B0i201906
LT.GRAY,TRIM2#,3#,4#
main81260-42E10-B0i201906
LT.GRAY,TRIM2#,4#
main81260-52120-B0i201607-201905
LT.GRAY,TRIM1#,2#,4#
main81260-52120-B0i201308-201607
LT.GRAY,TRIM2#,4#
81260CBULB(FOR MAP LAMP)
main99132-12050i201308-201607
12V 5W
81340LAMP ASSY, VANITY
main81340-0P010i201505-201607
main81340-30110i201308-201504
81340BBULB (FOR VANITY LAMP)
main90981-11062i201308-201607
12V 8W
81363LENS, ROOM LAMP, OUTER
main81363-52010i201308-201607
8202
8603
9046709240
main90467-09240

14 parts on this diagram · 2 diagrams in section
