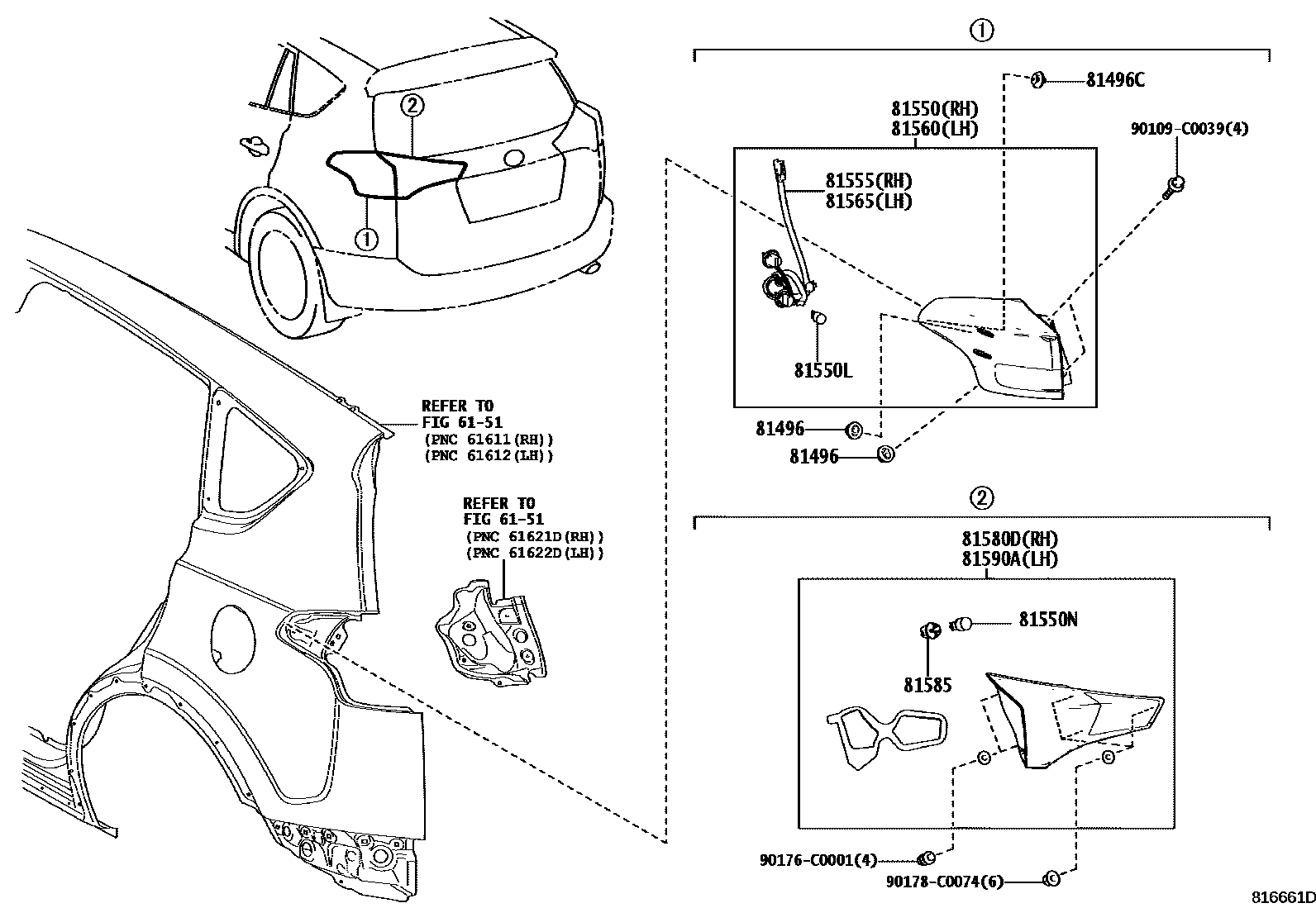

REAR COMBINATION LAMP

0001 1 0002 1

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iASA44,ZSA4#201308-201607

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iASA44,ZSA4#201308-201706

main90467-C0019iASA4#,ZSA4#201706

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0R050iASA44,ZSA4#201308-201607

main81550-0R080iASA4#,ZSA4#201607

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iASA44,ZSA4#201308-201607

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-13043iASA44,ZSA4#201308-201607

12V 21W

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0R050iASA44,ZSA4#201308-201607

main81555-0R080iASA4#,ZSA4#201607

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0R050iASA44,ZSA4#201308-201607

main81560-0R080iASA4#,ZSA4#201607

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0R050iASA44,ZSA4#201308-201607

main81555-0R080iASA4#,ZSA4#201607

81580DLAMP ASSY, REAR, RH

main81580-0R020iASA44,ZSA4#201308-201607

main81580-0R050iASA44,ZSA4#201607-201806

sub81580-0R051

main81580-0R051iASA4#,ZSA4#201807

81585SOCKET & WIRE, REAR LAMP

main81555-0R020iASA44,ZSA4#201308-201607

main81585-0R050iASA4#,ZSA4#201607

81590ALAMP ASSY, REAR, LH

main81590-0R020iASA44,ZSA4#201308-201607

main81590-0R050iASA44,ZSA4#201607-201806

sub81590-0R051

main81590-0R051iASA4#,ZSA4#201807

90109C0039

main90109-C0039

90176C0001

main90176-C0001

90178C0074

main90178-C0074

15 parts on this diagram · 2 diagrams in section
