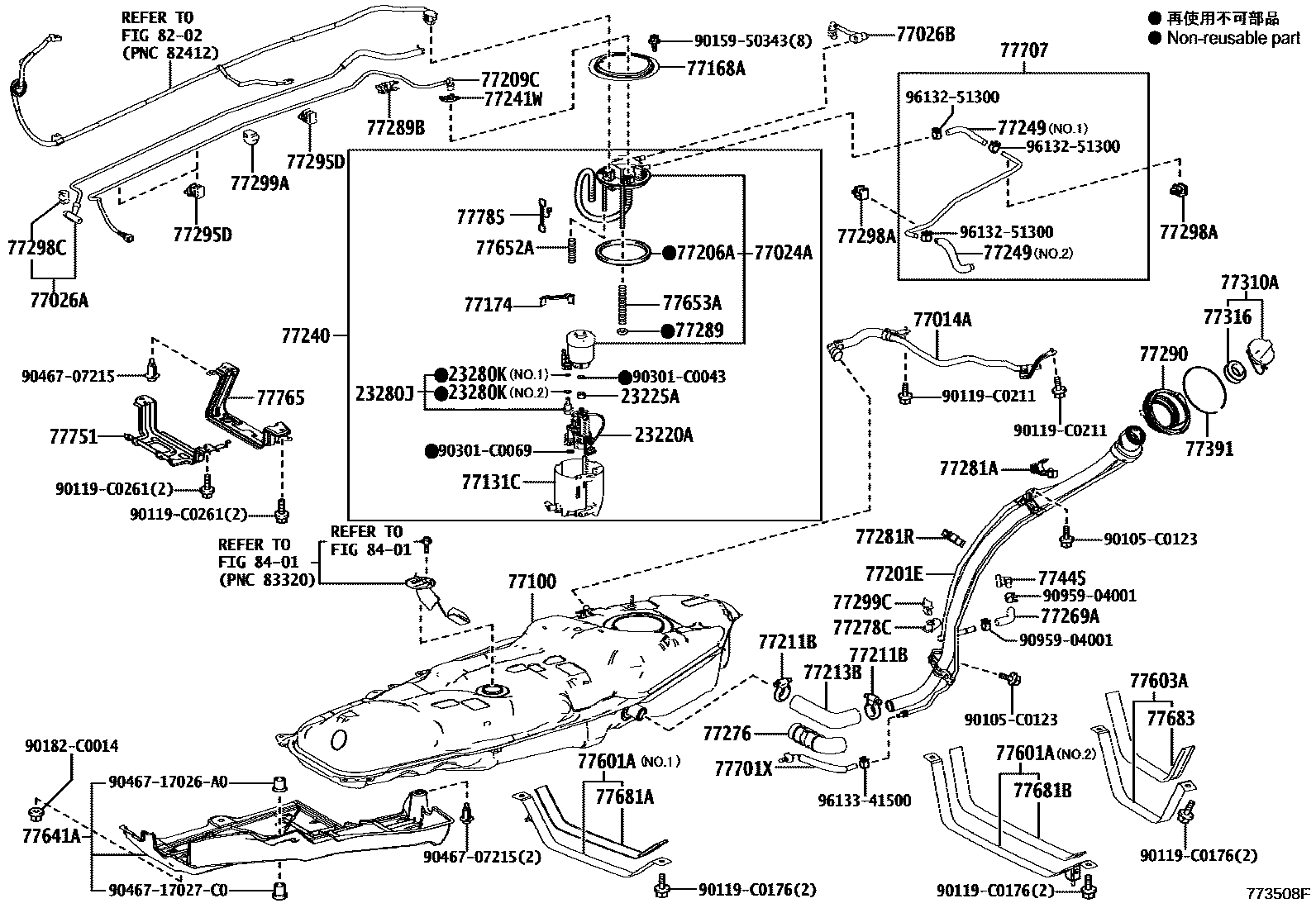

FUEL TANK & TUBE
23220APUMP ASSY, FUEL W/FILTER
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
23225ASPACER, FUEL PUMP
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77024APLATE SUB-ASSY, FUEL SUCTION
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026BTUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77100TANK ASSY, FUEL
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77131CSUB-TANK, FUEL, NO.1
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77168APLATE, FUEL TANK VENT TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77201EPIPE SUB-ASSY, FUEL TANK FILLER
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77206AGASKET (FOR FUEL TANK SUCTION TUBE)
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77209CTUBE SUB-ASSY, FUEL TANK MAIN
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77211BCLAMP (FOR FUEL FILLER PIPE)
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77213BHOSE, FUEL TANK TO FILLER PIPE
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77240TUBE ASSY, FUEL SUCTION
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77241WCLIP, TUBE JOINT
77249HOSE, FUEL EMISSION
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77269AHOSE, FUEL TANK BREATHER
77276PROTECTOR, FUEL HOSE
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77281ACLAMP, FUEL FILLER PIPE
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77281RCLAMP, FUEL FILLER PIPE, NO.2
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77289HOLDER, FUEL TANK PIPE SETTING
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77289BCLAMP, FUEL TUBE, NO.3
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77295DGROMMET, FUEL TUBE
77298ACLAMP, FUEL TUBE, NO.4
77298CCLAMP, FUEL TUBE, NO.4
(L)
(J)
77299ACLAMP, FUEL TUBE, NO.5
77299CCLAMP (FOR FUEL FILLER PIPE)
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77310ACAP ASSY, FUEL TANK
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77316GASKET, FUEL TANK CAP
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77391RING, FUEL INLET BOX
77601ABAND SUB-ASSY, FUEL TANK, NO.1
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77603ABAND SUB-ASSY, FUEL TANK, NO.2
77652ACUSHION, FUEL TANK, NO.2
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77653ACUSHION, FUEL TANK, NO.3
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
77681ASEAT, FUEL TANK BAND
77681BSEAT, FUEL TANK BAND
77683SEAT, FUEL TANK BAND, NO.3
77701XHOSE SUB-ASSY, CANISTER OUTLET, NO.1
77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET
77751BRACKET, CHARCOAL CANISTER BASE
77765PROTECTOR, CHARCOAL CANISTER
77785HARNESS, FUEL PUMP
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
8202
8401
90105C0123
main90105-C0123
90119C0176
main90119-C0176
90119C0211
main90119-C0211
90119C0261
main90119-C0261
9015950343
main90159-50343
90182C0014
main90182-C0014
90301C0043
main90301-C0043
90301C0069
main90301-C0069
9046707215
main90467-07215
9046717026A0
main90467-17026A0
9046717027C0
main90467-17027C0
9095904001
main90959-04001
9613251300
main96132-51300
9613341500
main96133-41500
66 parts on this diagram · 6 diagrams in section
