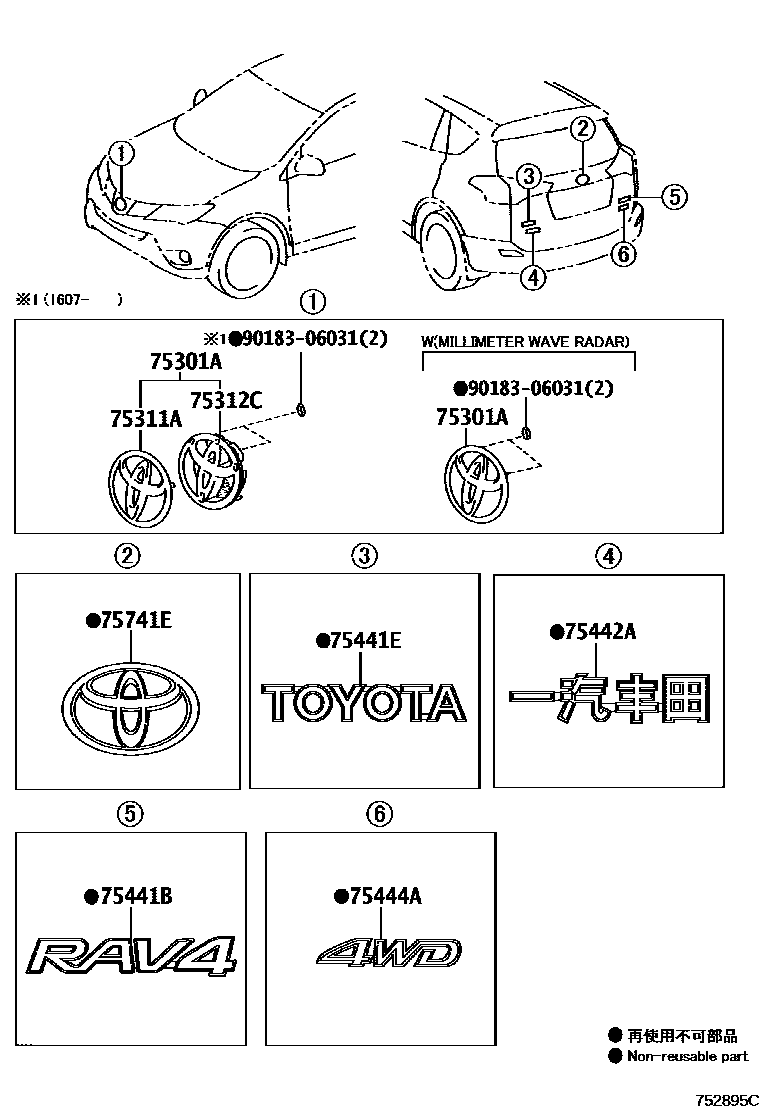

EMBLEM & NAME PLATE

75301AEMBLEM SUB-ASSY, FRONT BUMPER

main53141-0R020iASA4#..Q201607

sub53141-0R021

main75301-0R020iASA44,ZSA4#201308-201607

main75301-0R050iASA4#,ZSA4#..G,M,X201607

75311APLATE, FRONT NAME, NO.1

main90975-C2005iASA44,ZSA4#201308-201607

75312CBASE, FRONT BUMPER EMBLEM

main75312-0R050iASA44,ZSA4#201308-201607

main75312-0R070iASA4#,ZSA4#..G,M,X201607

75441BPLATE, BACK DOOR NAME

main75431-0R040iASA4#,ZSA4#201308-201607

RAV4

75441EPLATE, BACK DOOR NAME, NO.1

main75441-0R010iASA44,ZSA4#201308-201607

TOYOTA

75442APLATE, BACK DOOR NAME, NO.2

main75441-0R030iASA44,ZSA4#201308-201607

75444APLATE, BACK DOOR NAME, NO.4

main75444-0R070iASA44,ZSA44201308-201607

4WD

75741EEMBLEM, SYMBOL

main75431-02060iASA44,ZSA4#201308-201607

9018306031

main90183-06031

9 parts on this diagram · 1 diagram in section
