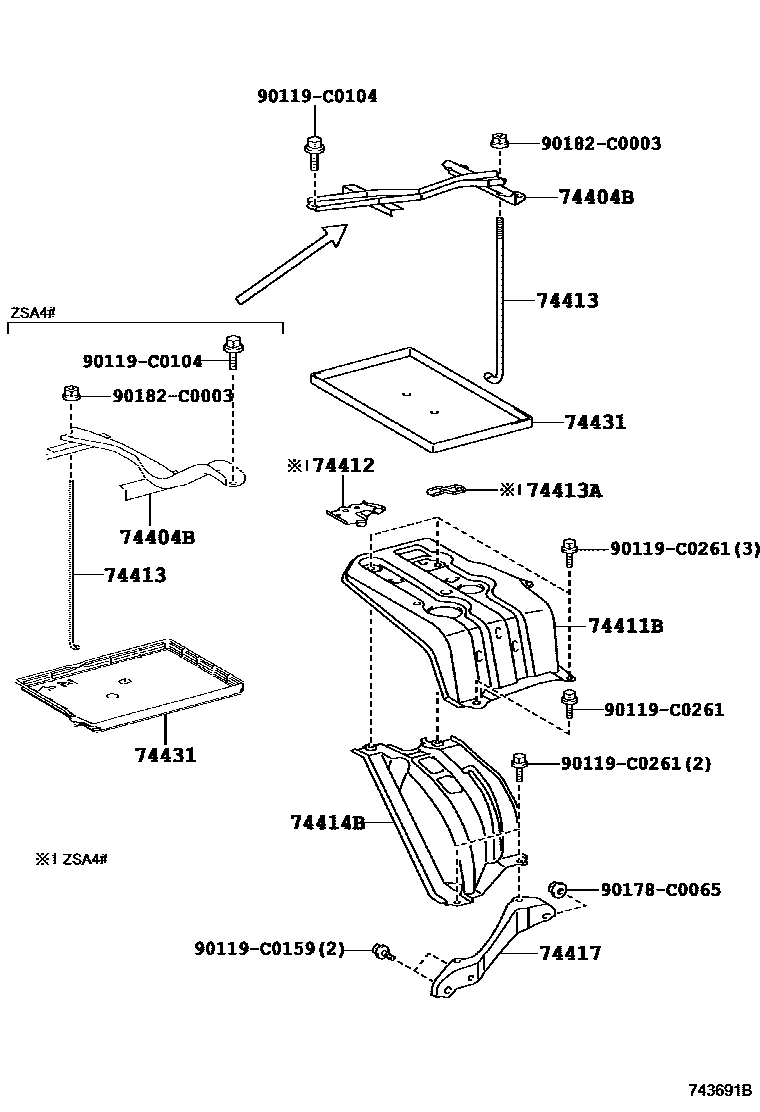

BATTERY CARRIER

74404BCLAMP SUB-ASSY, BATTERY

main74404-0R040iASA44201308-201607

main74404-0R050iZSA4#201308-201607

74411BBRACKET, BATTERY, FRONT

main74411-0R040iZSA4#201308-201611

sub74411-0R041

main74411-0R041iASA4#,ZSA4#201612

main74411-42022iASA44201607-201611

sub74411-0R041

74412BRACKET, BATTERY, REAR

main74412-0R010iZSA4#201308-201607

74413BOLT, BATTERY CLAMP

main74451-10061iASA44,ZSA4#201503-201607

sub74451-42030

main74451-58011iASA44,ZSA4#201308-201502

74413APANEL, BATTERY CARRIER, FRONT

main74413-0R010iZSA4#201308-201607

74414BREINFORCEMENT, BATTERY BRACKET

main74414-0R020iASA44,ZSA4#201308-201607

74417BRACKET, BATTERY CARRIER

main74417-0R020iASA44,ZSA4#201308-201607

74431TRAY, BATTERY

main74431-0R050iASA44201308-201607

main74431-0R060iZSA4#201308-201607

90119C0104

main90119-C0104

90119C0159

main90119-C0159

90119C0261

main90119-C0261

90178C0065

main90178-C0065

90182C0003

main90182-C0003

13 parts on this diagram · 1 diagram in section
