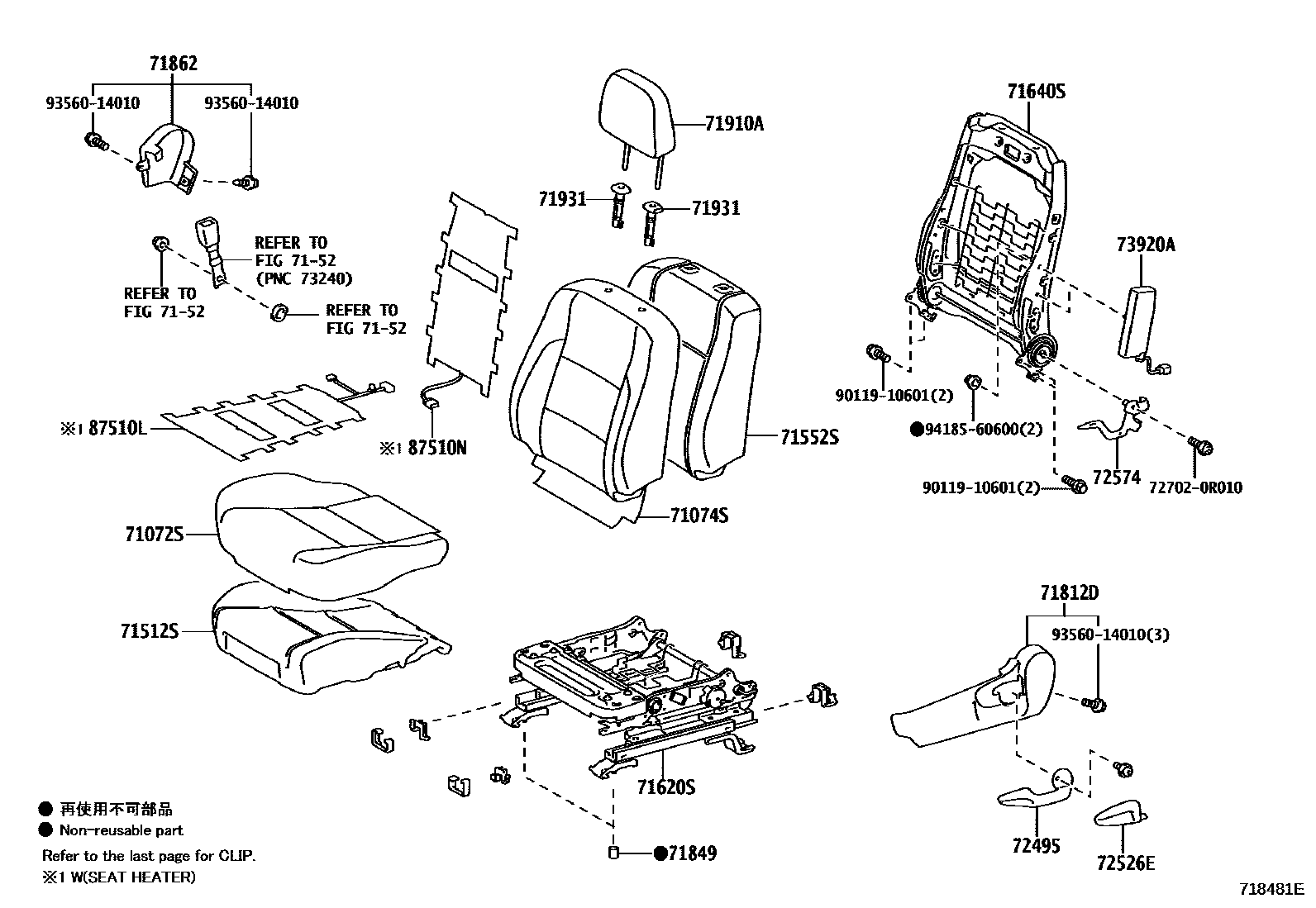

SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1DRIVER SEAT,W(POWER SEAT) 0003 1PASSENGER SEAT 0004 1REAR SEAT (LH) 0005 1REAR SEAT (RH) 0006 1SEAT TRACK COVER 0007 1CLIP

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0R110-A0iZSA4#..M,X201308-201506

BEIGE,TRIM4#

main71072-0R110-A4iZSA4#..M,X201506-201607

BEIGE,TRIM4#

main71072-0R110-A5iZSA4#..M,X201607

GALLANT BEIGE,TRIM4#

main71072-0R110-C1iZSA4#..M,X201308-201506

BLACK,TRIM2#

main71072-0R110-C4iZSA4#..M,X201506-201607

BLACK,TRIM2#

main71072-0R110-C6iZSA4#..M,X201607

BLACK,TRIM2#

main71072-0R120-20iASA44;ZSA44..G201506-201607

BLACK/TERRA COTTA/ECRU,TRIM3#

main71072-0R120-21iASA44;ZSA4#..G201607-201702

GALLANT BEIGE,TRIM2#

main71072-0R120-A0iASA44;ZSA44..G201308-201506

LT.BEIGE,TRIM4#

main71072-0R120-A3iASA44;ZSA44..G201506-201607

LT.BEIGE,TRIM4#

main71072-0R120-A8iASA44;ZSA4#..G201607-201702

GALLANT BEIGE,TRIM4#

main71072-0R120-C4iASA44;ZSA44..G201308-201506

BLACK,TRIM2#

main71072-0R120-C5iASA44;ZSA44..G201308-201506

BLACK,TRIM3#

main71072-0R120-C8iASA44;ZSA44..G201506-201607

BLACK/BLACK/LT.BROWN,TRIM2#

main71072-0R120-E2iASA44;ZSA4#..G201607-201702

KOGANE,TRIM3#

main71072-0R122-21iASA4#;ZSA4#..G201702

BLACK,TRIM2#

main71072-0R122-A8iASA4#;ZSA4#..G201702

GALLANT BEIGE,TRIM4#

main71072-0R122-E2iASA4#;ZSA4#..G201702

KOGANE,TRIM3#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0R150-A0iZSA4#..M,X201308-201607

BEIGE,TRIM4#

main71074-0R150-A2iZSA4#..M,X201607

GALLANT BEIGE,TRIM4#

main71074-0R150-C1iZSA4#..M,X201308-201607

BLACK,TRIM2#

main71074-0R160-A1iASA44;ZSA44..G201308-201607

LT.BEIGE,TRIM4#

main71074-0R160-A3iASA44;ZSA4#..G201607-201702

GALLANT BEIGE,TRIM4#

main71074-0R160-C4iASA44;ZSA44..G201308-201607

BLACK/BLACK,TRIM2#

main71074-0R160-C5iASA44;ZSA44..G201308-201607

BLACK/TERRA COTTA,TRIM3#

main71074-0R160-C9iASA44;ZSA4#..G201607-201702

BLACK,TRIM2#

main71074-0R160-E0iASA44;ZSA4#..G201607-201702

KOGANE,TRIM3#

main71074-0R162-20iASA4#;ZSA4#..G201705

BLACK,TRIM2#

main71074-0R162-A3iASA44;ZSA4#..G201702-201705

GALLANT BEIGE,TRIM4#

main71074-0R162-A4iASA4#;ZSA4#..G201705

GALLANT BEIGE,TRIM4#

main71074-0R162-C9iASA44;ZSA4#..G201702-201705

BLACK,TRIM2#

main71074-0R162-E0iASA44;ZSA4#..G201702-201705

KOGANE,TRIM3#

main71074-0R162-E1iASA4#;ZSA4#..G201705

KOGANE,TRIM3#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0R100iZSA4#..M,X201308-201607

main71512-0R110iASA4#;ZSA4#..G201308-201607

7152

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-0R140iZSA4#..M,X201308-201607

main71552-0R150iASA44;ZSA44..G201308-201607

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-0R050iZSA4#..M,X201308-201607

main71620-0R060iASA44;ZSA44..G201308-201607

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-0R051iZSA4#..M,X201308-201607

main71640-0R101iZSA44..G201308-201607

main71640-0R111iASA44..Q201308-201607

SEAT LUMBAR SUPPORT-DRIVER SIDE ONLY

main71640-0R111iASA44..G,M201412-201607

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0R100-C0iZSA42..X201607

BLACK,TRIM1#,2#,4#

main71812-0R100-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,4#

main71812-0R100-C0iZSA42..X201607

BLACK,TRIM1#,2#,3#,4#

main71812-0R110-C0iZSA44..G201308-201607

BLACK,TRIM2#,3#,4#

main71812-0R130-C0iASA45;ASA44..M201308-201607

BLACK,TRIM2#,3#,4#

main71812-0R130-C0iASA44,ZSA4#..G,Q201607

BLACK,TRIM1#,2#,3#,4#

main71812-0R130-C0iASA44..Q201308-201607

SEAT LUMBAR SUPPORT-DRIVER SIDE ONLY,BLACK,TRIM2#,3#,4#

71849CAP, SEAT ADJUSTER COVER, LH

main71848-0R030iASA44,ZSA4#201308-201607

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-0R080-C0iZSA4#..M201607

BLACK,TRIM1#,2#,4#

main71862-0R080-C0iZSA42..X201607

BLACK,TRIM1#,2#,3#,4#

main71862-0R080-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,4#

main71862-0R090-C0iASA44;ZSA44..G201308-201607

BLACK,TRIM2#,3#,4#

main71862-0R090-C0iASA44,ZSA4#..G,Q201607

BLACK,TRIM1#,2#,3#,4#

71910AHEADREST ASSY, FRONT SEAT

main71910-0R100-A1iZSA4#..M,X201308-201606

BEIGE,TRIM4#

sub71910-0R101

main71910-0R100-C1iZSA4#..M,X201308-201606

BLACK,TRIM2#

sub71910-0R101

main71910-0R101-A3iZSA4#..M,X201607

GALLANT BEIGE,TRIM4#

main71910-0R101-C2iZSA4#..M,X201607

BLACK,TRIM2#

main71910-0R110-A1iASA44;ZSA44..G201308-201508

LT.BEIGE,TRIM4#

sub71910-0R111

main71910-0R110-C4iASA44;ZSA44..G201308-201508

BLACK,TRIM2#

sub71910-0R111

main71910-0R110-C5iASA44;ZSA44..G201308-201508

BLACK,TRIM3#

sub71910-0R111

main71910-0R111-20iASA44;ZSA44..G201509-201607

BLACK/REDDISH BROWN,TRIM3#

main71910-0R111-A3iASA4#;ZSA4#..G201607

GALLANT BEIGE,TRIM4#

main71910-0R111-A4iASA44;ZSA44..G201509-201607

LT.BEIGE,TRIM4#

main71910-0R111-C8iASA4#;ZSA4#..G201607

BLACK,TRIM2#

main71910-0R111-C9iASA44;ZSA44..G201509-201607

BLACK/LT.BROWN,TRIM2#

main71910-0R111-E0iASA4#;ZSA4#..G201607

KOGANE,TRIM3#

71931SUPPORT, FRONT SEAT HEADREST

main71930-0R020-A0iASA44,ZSA4#201308-201607

W(LOCK),SHELL,TRIM4#

main71930-0R020-C0iASA44;ZSA44..G201308-201607

W(LOCK),BLACK,TRIM2#

main71930-0R020-C0iASA44;ZSA44..G201308-201607

W(LOCK),BLACK,TRIM2#,3#

main71930-0R020-C0iASA44,ZSA4#..G,Q201607

W(LOCK),BLACK,TRIM1#,2#,3#,4#

main71930-0R020-C0iASA44,ZSA4#..G,Q201607

W(LOCK),BLACK,TRIM1#,2#,4#

main71930-0R020-C0iASA45;ASA44..M201607

W(LOCK),BLACK,TRIM2#,3#,4#

main71931-0R020-A0iASA44,ZSA4#201308-201607

W/O(LOCK),SHELL,TRIM4#

main71931-0R020-C0iASA45;ASA44..M201607

W/O(LOCK),BLACK,TRIM1#,2#,3#,4#

main71931-0R020-C0iZSA4#..M,X201308-201607

W/O(LOCK),BLACK,TRIM2#

main71931-0R020-C0iZSA4#..M,X201308-201607

W/O(LOCK),BLACK,TRIM2#,3#

main71931-0R020-C0iASA44,ZSA4#..G,Q201607

W/O(LOCK),BLACK,TRIM1#,2#,4#

main71931-0R020-C0iASA44,ZSA4#..G,Q201607

W/O(LOCK),BLACK,TRIM2#,3#,4#

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-0R020-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,4#

main72495-0R020-C0iZSA42..X201607

BLACK,TRIM1#,2#,4#

main72495-0R020-C0iZSA42..X201607

BLACK,TRIM1#,2#,3#,4#

72526EHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-0R020-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,4#

main72526-0R020-C0iZSA42..X201607

BLACK,TRIM1#,2#,4#

main72526-0R020-C0iZSA42..X201607

BLACK,TRIM1#,2#,3#,4#

72574LEVER, RECLINING CONTROL, LH

main72574-0R010iZSA4#..M,X201308-201607

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-0R050iASA4#,ZSA4#201308-201607

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-0R091iASA44..Q201308-201607

SEAT LUMBAR SUPPORT-DRIVER SIDE ONLY

main87510-0R091iASA44..G,M201412-201607

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-0R011iASA44..Q201308-201607

SEAT LUMBAR SUPPORT-DRIVER SIDE ONLY

main87530-0R011iASA44..G,M201412-201607

727020R010BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-0R010

9011910601

main90119-10601

9356014010

main93560-14010

9418560600

main94185-60600

22 parts on this diagram · 7 diagrams in section
