DECK BOARD & DECK TRIM COVER

58386PLATE, REAR FLOOR FINISH

main58387-0R050-C0×2iZSA4#..M,X201308-201509

BLACK,TRIM2#,3#,4#

main58387-0R060-C0×2iZSA4#..M,X201509-201607

BLACK,TRIM2#,3#,4#

58410BBOARD ASSY, DECK

main58410-0R040-C0iASA44..M201308-201412

BLACK,TRIM2#,3#,4#

main58410-0R050-C0iASA45;ASA44..M201607

BLACK,TRIM2#,3#,4#

58415EBOARD, REAR FLOOR, NO.1

main58415-0R040-C1iZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#

58416DCLIP, REAR FLOOR BOARD

main90467-10161×5iASA44,ZSA4#201308-201501

main90467-C0036×5iASA44,ZSA4#201502-201607

58416KBOARD, REAR FLOOR, NO.2

main58416-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#

main58416-0R050-C0iZSA42..X201607

BLACK,TRIM1#,2#,4#

58417HBOARD, REAR FLOOR, NO.3

main58417-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#

58577EPLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1

main58577-0R050-C0iZSA4#..M,X201308-201509

BLACK,TRIM2#,3#,4#

main58577-0R070-C0iZSA42..X201607

BLACK,TRIM1#,2#,4#

58792GSUPPORT, JACK CARRIER

main58792-0R020iASA4#,ZSA4#201707

main58792-48020iASA44,ZSA4#201607-201707

63434BNET, ROOM RACK

main64309-0R020-B1iZSA4#..M,X201308-201607

WITH(NET TRAY & TONNEAU COVER),BLACK,TRIM2#,3#,4#

main64309-0R021-B1iASA45..Q201901

DARK GRAY,TRIM2#,3#,4#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10161×4iASA44,ZSA4#201308-201501

main90467-C0036×4iASA44,ZSA4#201502-201607

64716PCOVER, DECK TRIM, REAR

main64716-0R020-C0iZSA42..X201607

BLACK,TRIM1#,2#,4#

64910NCOVER ASSY, TONNEAU

main64910-0R040-C0iZSA4#..M,X201308-201511

WITH(NET TRAY & TONNEAU COVER),BLACK,TRIM2#,3#,4#

main64910-0R041-C0iZSA4#..M,X201512-201607

WITH(NET TRAY & TONNEAU COVER),BLACK,TRIM2#,3#,4#

64997BOX, DECK FLOOR, LH

main64997-0R020iASA44,ZSA4#201308-201509

main64997-0R030iASA44,ZSA4#201509-201607

main64997-0R050iASA4#,ZSA4#201607

64997CCLIP(FOR DECK FLOOR BOX)

main90467-C0016-B2×3iASA44,ZSA4#201308-201607

DK.GRAY

7455

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010

9015950002

main90159-50002

9046710201

main90467-10201

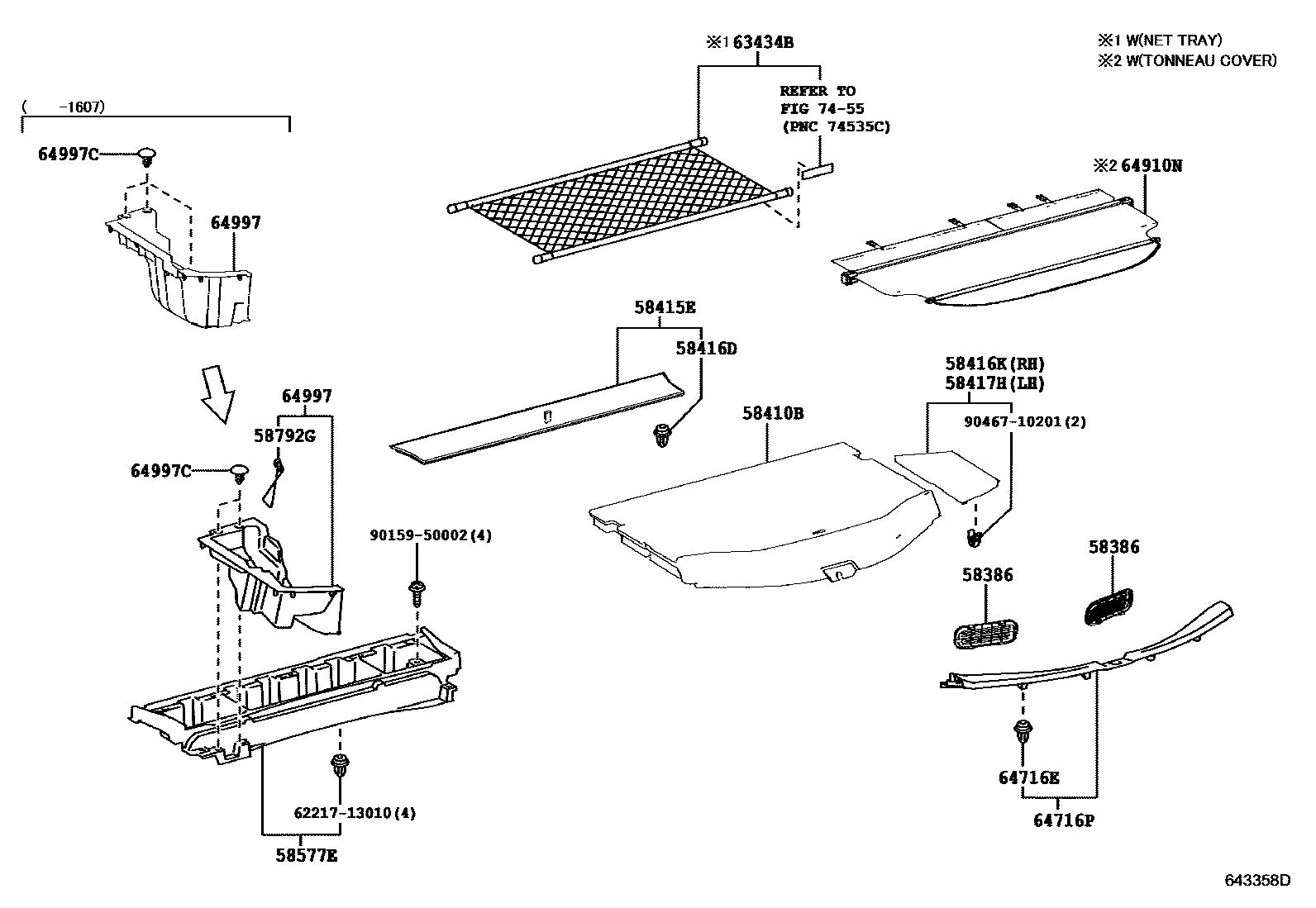

18 parts on this diagram · 1 diagram in section
