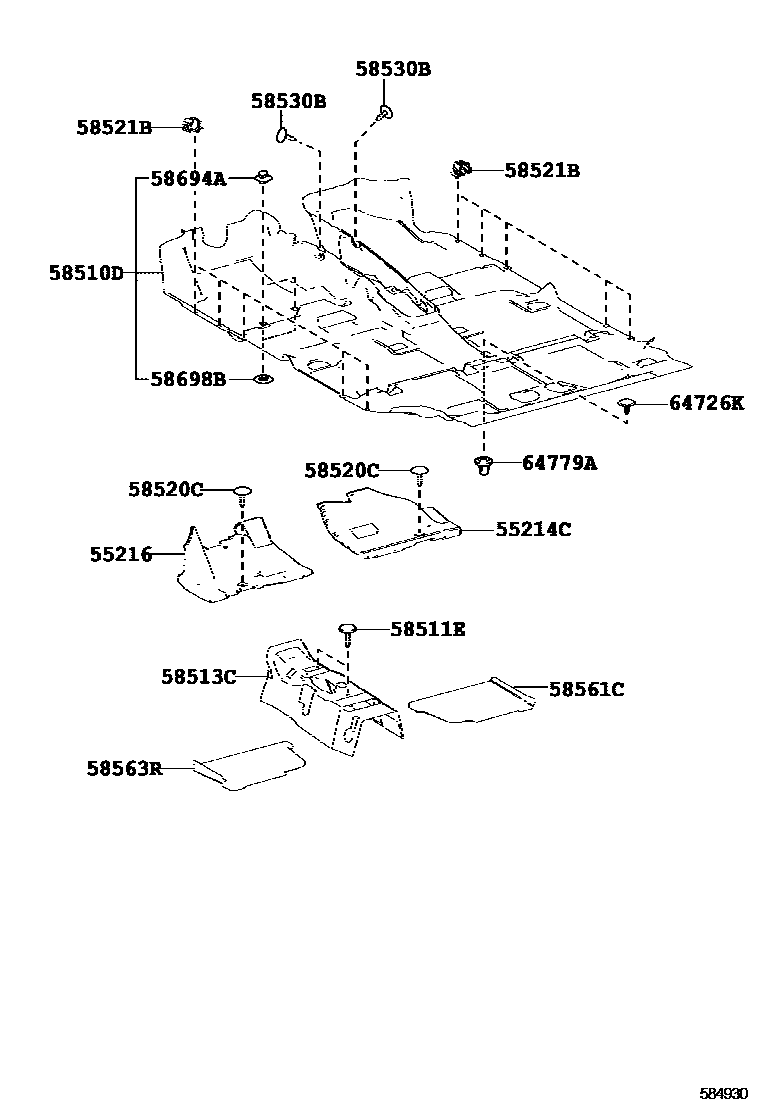

FLOOR MAT & SILENCER PAD

0001 1FLOOR CARPET 0002 1ACCESSORY MAT

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-0R040iASA4#,ZSA4#201308-201607

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-0R040iASA4#,ZSA4#201308-201607

58510DCARPET ASSY, FLOOR, FRONT

main58510-0R050-C0iZSA44..M201308-201607

VSC-WITH,BLACK,TRIM2#,4#

main58510-0R050-C0iASA44;ZSA44..G201308-201607

BLACK,TRIM2#,3#,4#

main58510-0R050-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,3#,4#

main58510-0R050-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,4#

main58510-0R060-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,4#

main58510-0R060-C0iASA44..M;ZSA44..G201308-201607

VSC-WITHOUT,BLACK,TRIM2#,3#,4#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-C0016-B2iASA44,ZSA4#201308-201607

DK.GRAY

58513CMAT, FLOOR, FRONT CENTER

main58513-0R050iASA44,ZSA4#201308-201607

58520CCLIP(FOR FRONT FLOOR CARPET)

main63399-26050-B4iASA44,ZSA4#201308-201607

DK.GRAY

58521BHOOK, FLOOR CARPET

main58521-12150iASA4#,ZSA4#201308-201607

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-C0029iASA44,ZSA4#201308-201607

58561CSILENCER, FRONT FLOOR, NO.1

main58561-0R040iASA4#,ZSA4#201308-201607

58563RSILENCER, FRONT FLOOR, NO.3

main58563-0R040iASA4#,ZSA4#201308-201607

58694APLATE, MAT SET, UPPER

main58694-76010iASA44,ZSA4#201308-201607

58698BPLATE, MAT SET, LOWER

main58698-76010iASA44,ZSA4#201308-201607

64726KCLIP, LUGGAGE TRIM, REAR

main64726-0D010iASA4#,ZSA4#201308-201607

64779ASTOPPER, SPARE WHEEL COVER

main64779-0D040iASA4#,ZSA4#201308-201607

14 parts on this diagram · 2 diagrams in section
