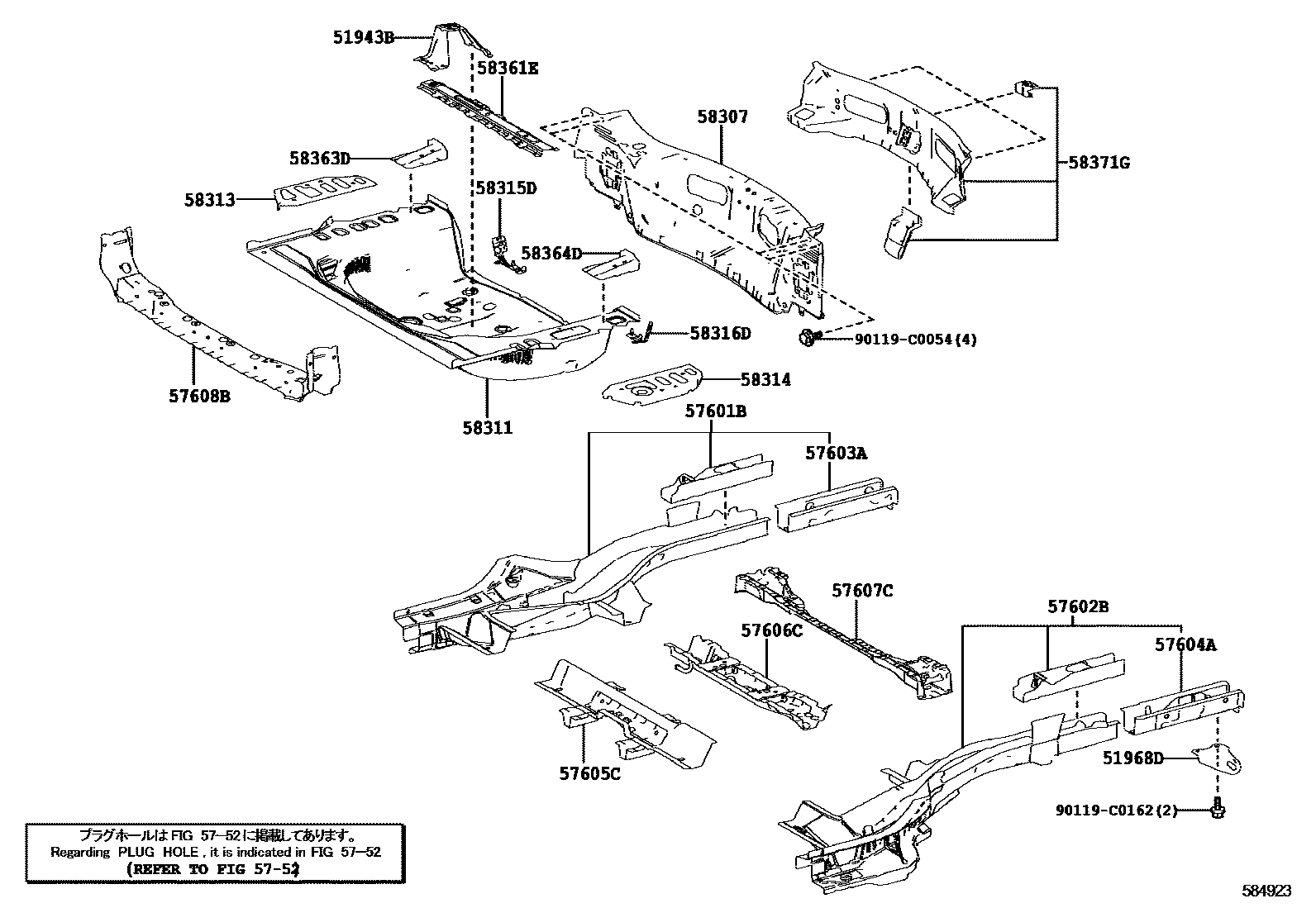

REAR FLOOR PANEL & REAR FLOOR MEMBER

51943BBRACKET, SPARE WHEEL CARRIER, NO.1

main51912-0R020iASA44,ZSA4#201308-201607

51968DHOOK, TRANSPORT, REAR LH

main51968-0R020iASA44,ZSA4#201308-201607

5752

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-0R905iASA44,ZSA4#201308-201607

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-0R904iASA44,ZSA4#201308-201607

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-0R021iASA44,ZSA4#201308-201607

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-0R020iASA44,ZSA4#201308-201607

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-0R020iASA44,ZSA4#201308-201607

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0R050iASA44,ZSA4#201308-201607

57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-0R040iASA44,ZSA4#201308-201607

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-0R050iASA44,ZSA4#201308-201607

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0R040iASA44,ZSA4#201308-201607

main58307-0R060iASA4#,ZSA4#201607

58311PAN, REAR FLOOR

main58311-0R040iASA44,ZSA4#201308-201503

sub58311-0R041

main58311-0R041iASA44,ZSA4#201504-201607

58313PANEL, REAR FLOOR SIDE, RH

main58313-0R020iASA44,ZSA4#201308-201607

58314PANEL, REAR FLOOR SIDE, LH

main58314-0R020iASA44,ZSA4#201308-201607

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-0R040iASA44,ZSA4#201308-201607

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-0R030iASA44,ZSA4#201308-201607

58361EREINFORCEMENT, REAR FLOOR PANEL, NO.1

main58361-0R030iASA44,ZSA4#201308-201607

58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH

main58363-0R020iASA44,ZSA4#201308-201607

58364DREINFORCEMENT, REAR FLOOR PANEL, NO.2 LH

main58364-0R020iASA44,ZSA4#201308-201607

58371GPANEL, BODY LOWER BACK

main58302-0R050iASA44,ZSA4#201308-201607

90119C0054

main90119-C0054

90119C0162

main90119-C0162

23 parts on this diagram · 1 diagram in section
