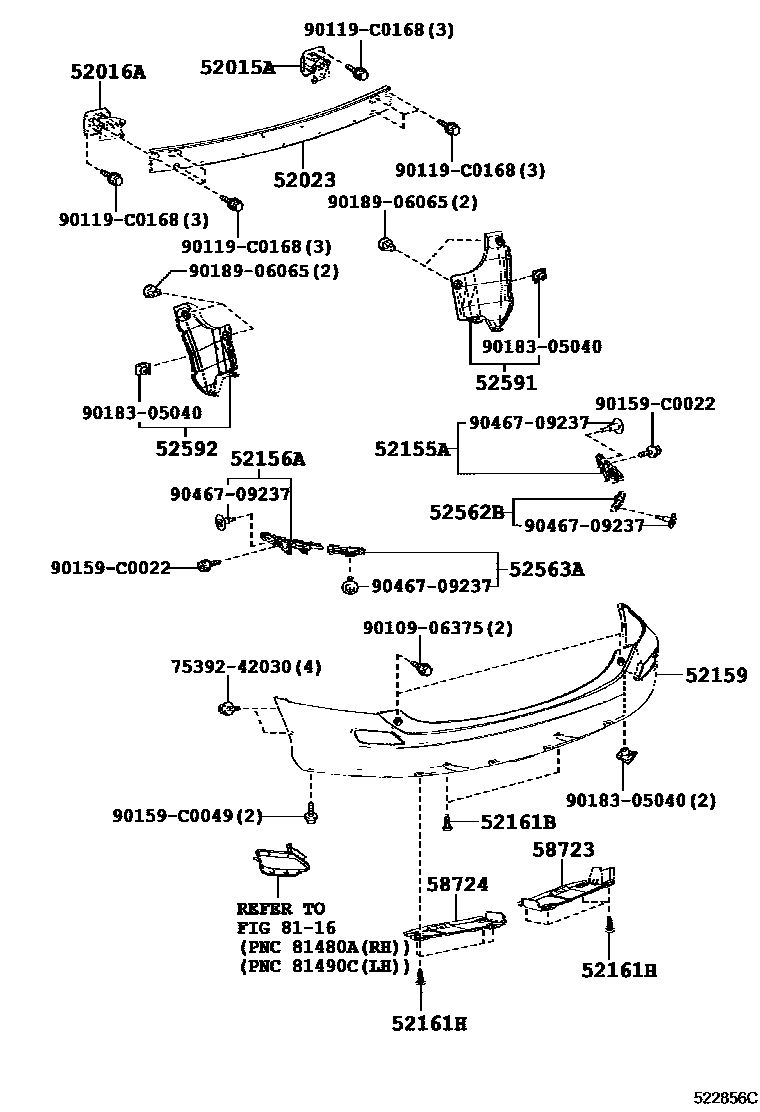

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-0R010iASA4#,ZSA4#201308-201607

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-0R010iASA4#,ZSA4#201308-201607

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0R010iASA44,ZSA4#..G,M,Q201308-201607

main52171-0R010iZSA42..X201308-201607

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-0R040iASA44,ZSA4#201308-201607

main52155-0R060iASA4#,ZSA4#201607

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-0R040iASA44,ZSA4#201308-201607

main52156-0R060iASA4#,ZSA4#201607

52159COVER, REAR BUMPER

main52159-0R090iZSA42..X201308-201607

NO PAINT REQ.

main52159-0R100iASA44,ZSA4#..G,M,Q201308-201607

NO PAINT REQ.

main52159-0R916iASA4#,ZSA4#201607

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02040iASA44,ZSA4#201308-201607

52161HPIECE, REAR BUMPER

main52161-02040iASA44,ZSA4#201308-201607

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-0R040iASA44,ZSA4#201308-201607

main52562-0R060iASA4#,ZSA4#201607

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-0R040iASA44,ZSA4#201308-201607

main52563-0R060iASA4#,ZSA4#201607

52591SEAL, REAR BUMPER SIDE, RH

main52591-0R040iASA44,ZSA4#201308-201607

main52591-0R060iASA4#,ZSA4#201607

52592SEAL, REAR BUMPER SIDE, LH

main52592-0R040iASA44,ZSA4#201308-201607

main52592-0R060iASA4#,ZSA4#201607

58723PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.1

main58723-0R020iASA44,ZSA4#201308-201509

main58723-0R030iASA44,ZSA4#201509-201607

main58723-0R050iASA4#,ZSA4#201607

58724PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.2

main58724-0R020iASA44,ZSA4#201308-201509

main58724-0R030iASA44,ZSA4#201509-201607

main58724-0R050iASA4#,ZSA4#201607

8116

7539242030RETAINER, OUTSIDE MOULDING

main75392-42030

9010906375

main90109-06375

90119C0168

main90119-C0168

90159C0022

main90159-C0022

90159C0049

main90159-C0049

9018305040

main90183-05040

9018906065

main90189-06065

9046709237

main90467-09237

23 parts on this diagram · 2 diagrams in section
