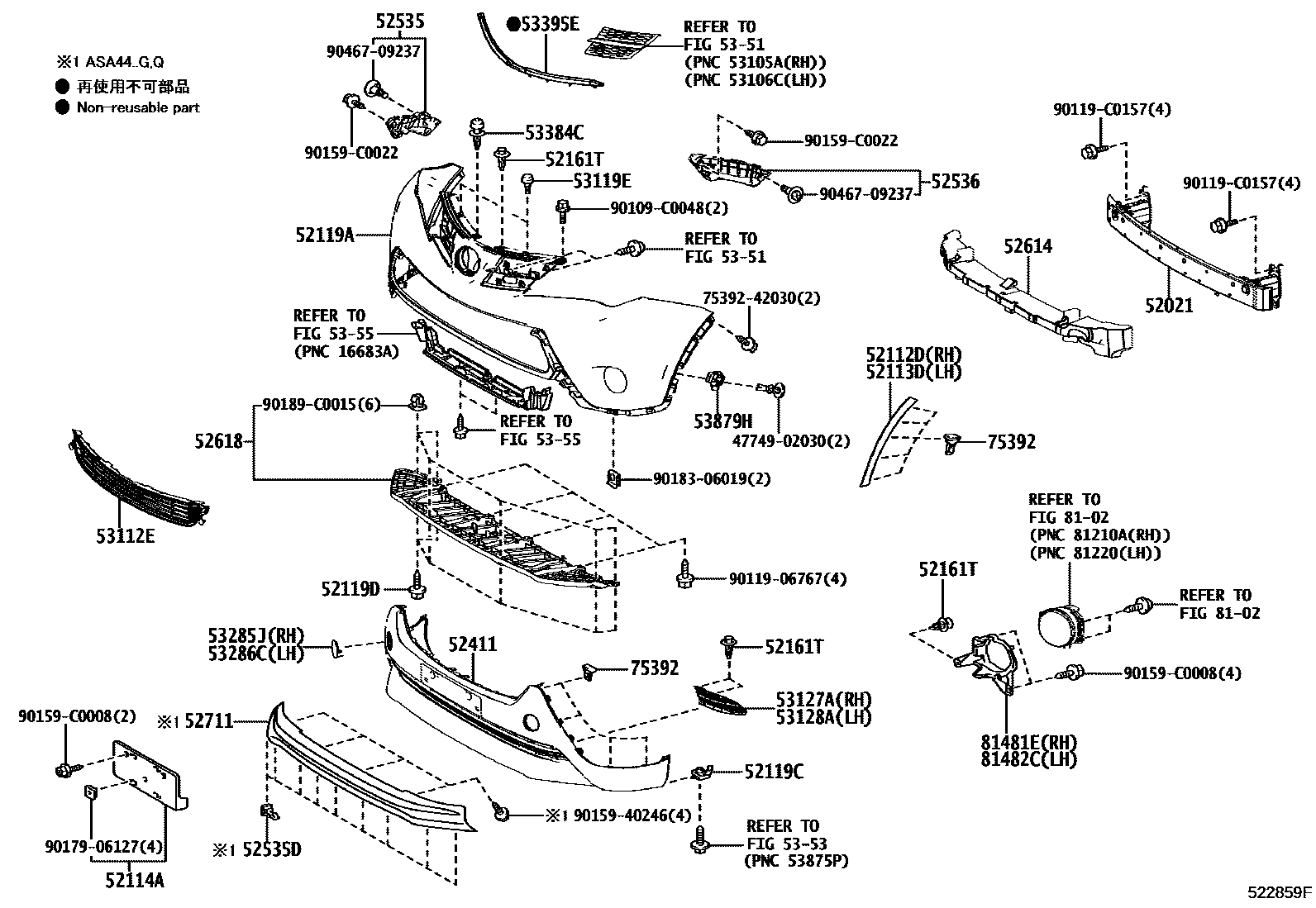

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52112DEXTENSION, FRONT BUMPER, RH
NO PAINT REQ.
NO PAINT REQ.
52113DEXTENSION, FRONT BUMPER, LH
NO PAINT REQ.
NO PAINT REQ.
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
52119CCLIP, FRONT BUMPER COVER
52119DSCREW, NO.1
52161TPIECE, FRONT BUMPER
52411GUARD, FRONT BUMPER
52535RETAINER, FRONT BUMPER SIDE, RH
52535DRETAINER, FRONT BUMPER SIDE
52536RETAINER, FRONT BUMPER SIDE, LH
52614ABSORBER, FRONT BUMPER ENERGY, NO.2
52618ABSORBER, FRONT BUMPER, LOWER
52711MOULDING, FRONT BUMPER
SILVER ME.,070 ,209 ,3T0 ,4R8 ,4U3 ,4V8 ,8X7
SILVER ME.,040 ,070 ,209 ,3T0 ,4R8 ,4U3 ,4V8 ,8X7
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
53119EPROTECTOR, RADIATOR GRILLE
53127AGRILLE, RADIATOR, LOWER RH
53128AGRILLE, RADIATOR, LOWER LH
53285JCOVER, FRONT BUMPER ARM HOLE, RH
53286CCOVER, FRONT BUMPER ARM HOLE, LH
53384CCUSHION, HOOD, CENTER
53395ESEAL, HOOD TO FRONT END PANEL
5351
5353
5355
53879HRETAINER, FRONT FENDER LINER
75392RETAINER, OUTSIDE MOULDING
8102
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
4774902030CLIP, PIN HOLD
main47749-02030
7539242030RETAINER, OUTSIDE MOULDING
main75392-42030
90109C0048
main90109-C0048
9011906767
main90119-06767
90119C0157
main90119-C0157
9015940246
main90159-40246
90159C0008
main90159-C0008
90159C0022
main90159-C0022
9017906127
main90179-06127
9018306019
main90183-06019
90189C0015
main90189-C0015
9046709237
main90467-09237
43 parts on this diagram · 2 diagrams in section
