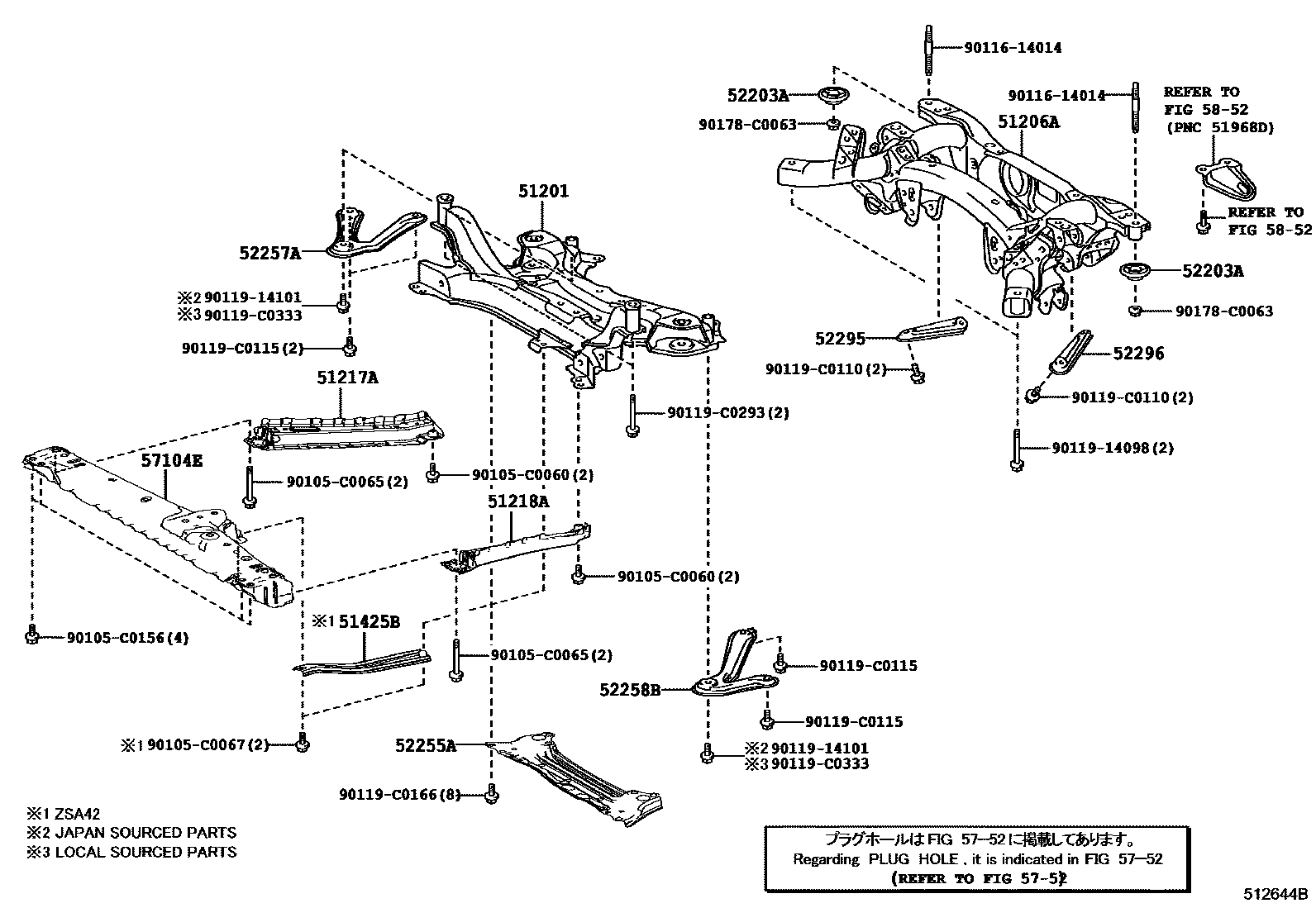

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION MEMBER 0002 1ENGINE UNDER COVER 0003 1ENGINE UNDER COVER 0004 1ENGINE UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02132iASA44,ZSA4#201308-201607

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0R043iASA44,ZSA4#201308-201607

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-0R050iASA44,ZSA4#201308-201607

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-0R040iASA44,ZSA4#201308-201607

51425BREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-0R010iZSA42201308-201607

52203ACUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER

main52203-0R040iASA44,ZSA4#201308-201607

52255ABRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-0R040iASA44,ZSA4#201308-201607

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-0R020iASA44,ZSA4#201308-201607

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-0R021iASA44,ZSA4#201308-201607

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-0R030iASA44,ZSA4#201308-201607

52296BRACE, REAR SUSPENSION MEMBER, LH

main52296-0R030iASA44,ZSA4#201308-201607

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-0R040iASA44,ZSA4#201308-201607

5752

5852

90105C0060

main90105-C0060

90105C0065

main90105-C0065

90105C0067

main90105-C0067

90105C0156

main90105-C0156

9011614014

main90116-14014

9011914098

main90119-14098

9011914101

main90119-14101

90119C0110

main90119-C0110

90119C0115

main90119-C0115

90119C0166

main90119-C0166

90119C0293

main90119-C0293

90119C0333

main90119-C0333

90178C0063

main90178-C0063

27 parts on this diagram · 4 diagrams in section
