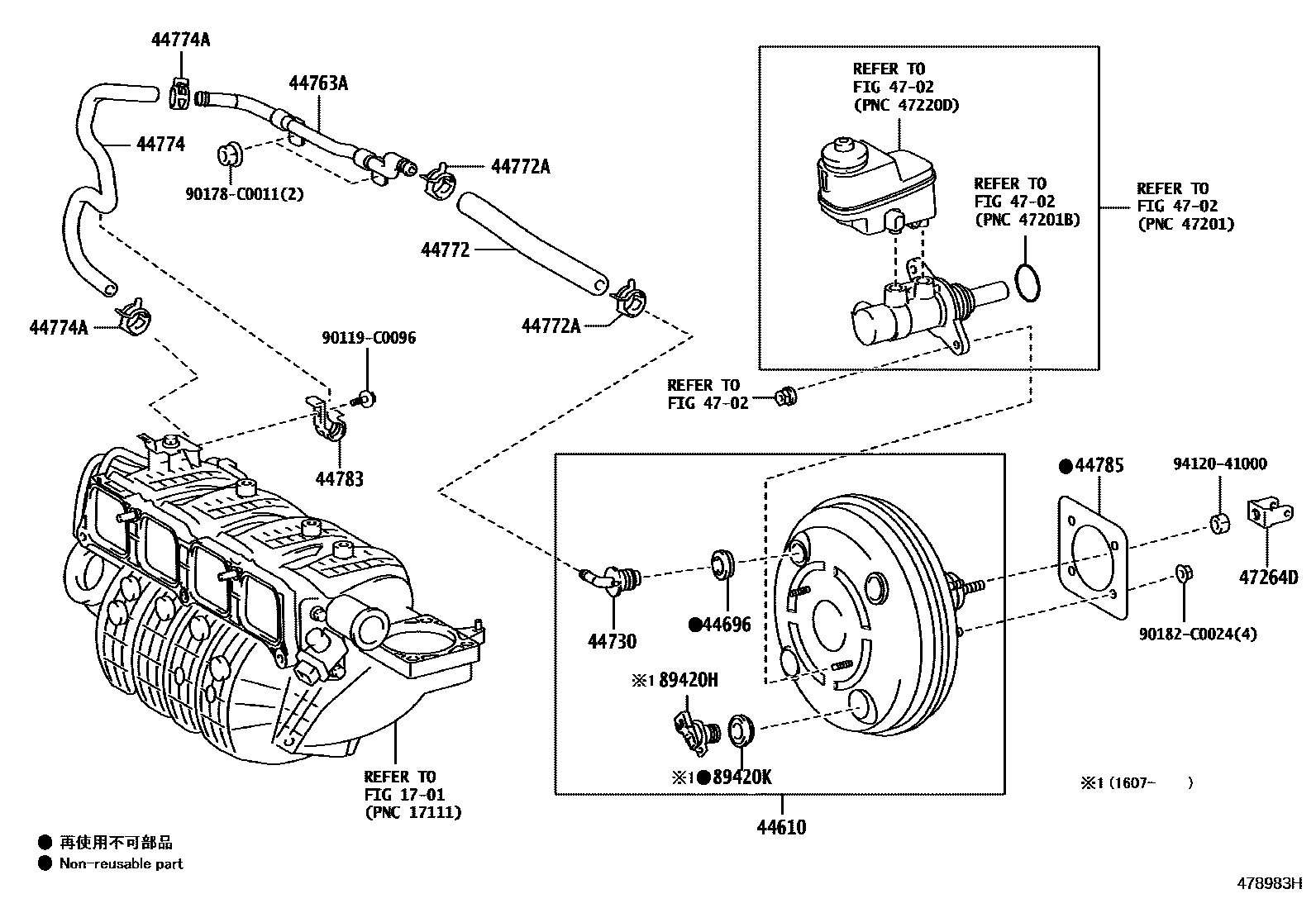

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1701

44610BOOSTER ASSY, BRAKE

main44610-0R080iZSA4#..M,X201308-201607

VSC-WITHOUT

main44610-0R090iASA44;ZSA44..G201308-201607

VSC-WITH

main44610-0R100iASA4#201607

main44610-0R110iZSA4#201607

44696GROMMET, CHECK VALVE

main90080-48071iASA44,ZSA4#201308-201607

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iASA44,ZSA4#201308-201607

44763ATUBE, HOSE TO HOSE, NO.1

main44763-0R010iASA44,ZSA4#201308-201607

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-0R010iASA44,ZSA4#201308-201607

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main96133-41500iASA44,ZSA4#201308-201607

44774HOSE, UNION TO CONNECTOR TUBE

main44774-0R050iZSA4#201308-201607

main44774-0R060iASA4#201308-201607

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500iASA44,ZSA4#201308-201607

44783CLAMP, VACUUM HOSE

main44783-42030iASA4#201308-201607

44785GASKET, BRAKE BOOSTER

main44785-02050iASA44,ZSA4#201308-201607

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iASA44,ZSA4#201308-201607

89420HSENSOR ASSY, VACUUM

main89421-52020iASA4#,ZSA4#201607

89420KGROMMET, VACUUM SENSOR

main90080-48071iASA4#,ZSA4#201607

90119C0096

main90119-C0096

90178C0011

main90178-C0011

90182C0024

main90182-C0024

9412041000

main94120-41000

19 parts on this diagram · 3 diagrams in section
