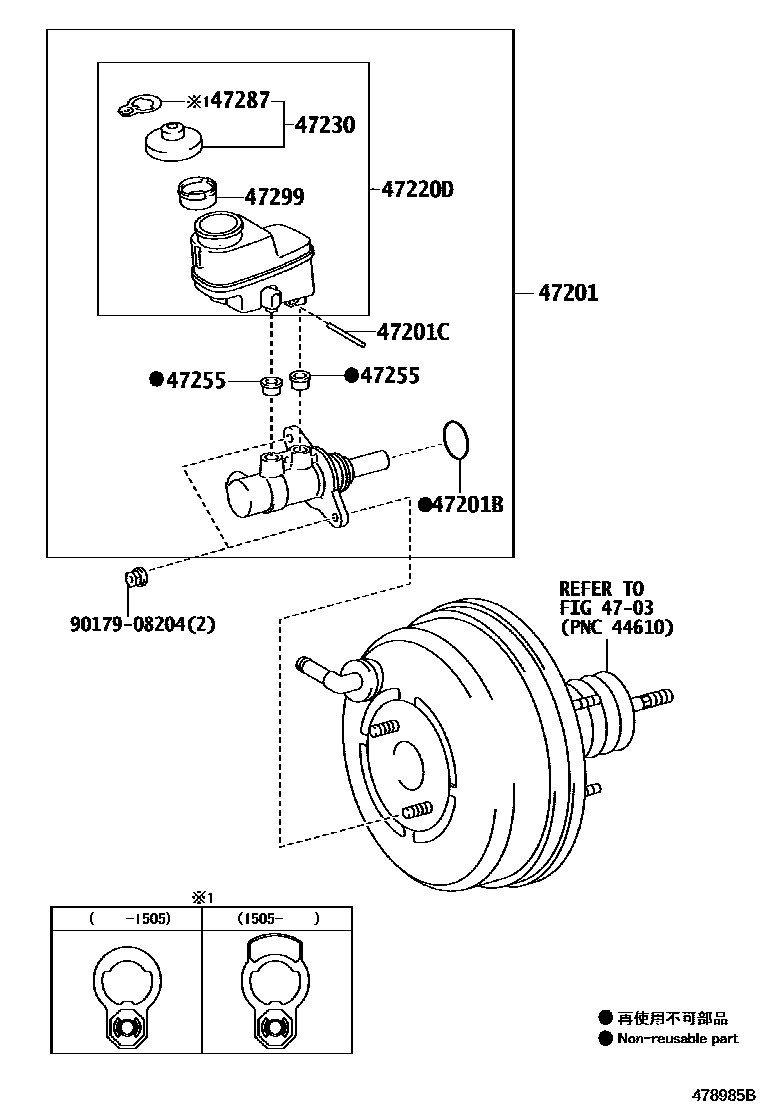

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0R052iASA44,ZSA4#..ATM,CVT201308-201504

main47201-0R062iZSA42..6F201308-201505

sub47201-0R100

main47201-0R090iASA44,ZSA4#..ATM,CVT201505-201511

sub47201-0R110

main47201-0R100iZSA42..6F201505-201511

sub47201-0R120

main47201-0R110iASA44,ZSA4#..ATM,CVT201512-201711

main47201-0R120iZSA42..6F201512-201607

main47201-0R140iASA4#,ZSA4#201711

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASA44,ZSA4#201308-201505

main90016-AH902iASA44,ZSA4#201505-201607

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iASA44,ZSA4#201308-201607

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0R030iASA44,ZSA4#..ATM,CVT201308-201511

sub47220-0R060

main47220-0R040iZSA42..6F201308-201511

sub47220-0R070

main47220-0R060iASA44,ZSA4#..ATM,CVT201512-201607

main47220-0R070iZSA42..6F201512-201607

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02260iASA44,ZSA4#201308-201505

sub47230-0R030

main47230-0R030iASA44,ZSA4#201505-201607

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT002iASA4#,ZSA4#201505-201607

main90029-48001iASA44,ZSA4#201308-201505

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iASA44,ZSA4#201505-201607

main47287-20010iASA44,ZSA4#201308-201505

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iASA4#,ZSA4#201512-201607

main47299-25010iASA44,ZSA4#201308-201512

9017908204

main90179-08204

10 parts on this diagram · 1 diagram in section
