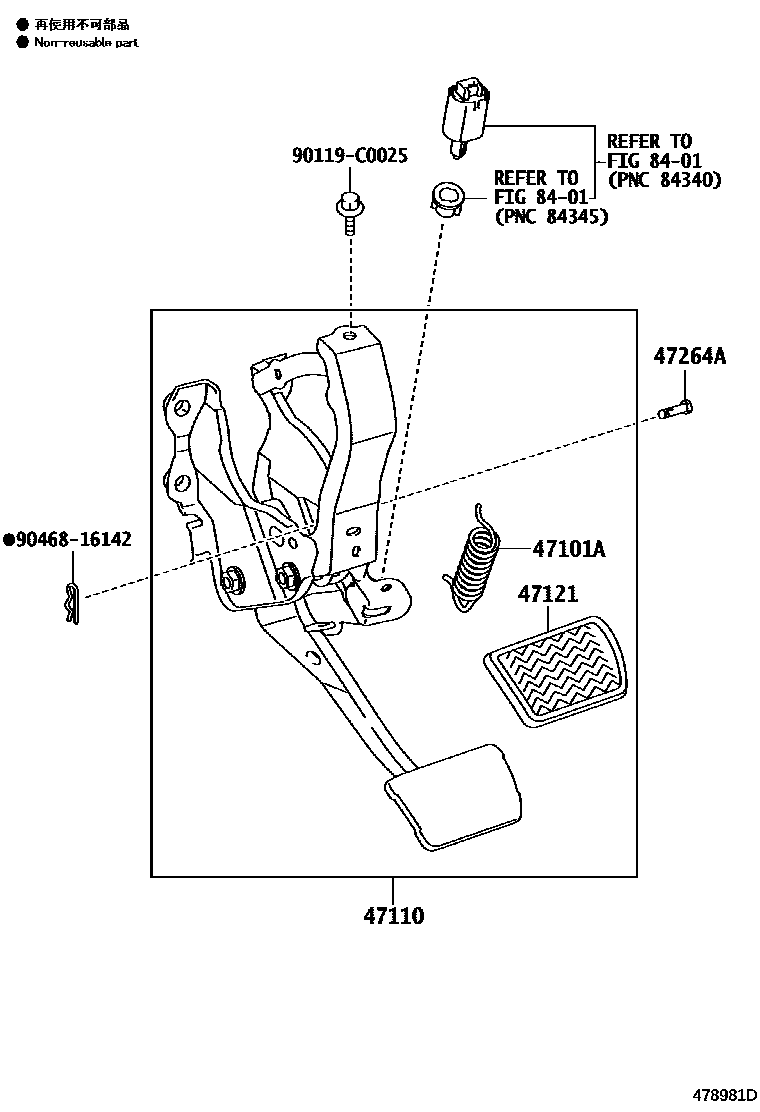

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main47146-0R020iASA44,ZSA4#201505-201607

main47146-42030iASA44,ZSA4#201308-201405

sub47146-78010

sub47146-78020

main47146-78020iASA44,ZSA4#201405-201504

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0R090iASA44,ZSA4#..ATM,CVT201308-201607

main47110-0R100iZSA42..6F201308-201607

47121PAD, BRAKE PEDAL

main31321-0R030iZSA42..6F201501-201607

main31321-42010iZSA42..6F201308-201412

main47121-0R030iASA44,ZSA4#..ATM,CVT201501-201607

main47121-42010iASA44,ZSA4#..ATM,CVT201308-201412

47264APIN(FOR PUSH ROD)

main90249-08256iASA44,ZSA4#201308-201607

8401

90119C0025

main90119-C0025

9046816142

main90468-16142

7 parts on this diagram · 1 diagram in section
