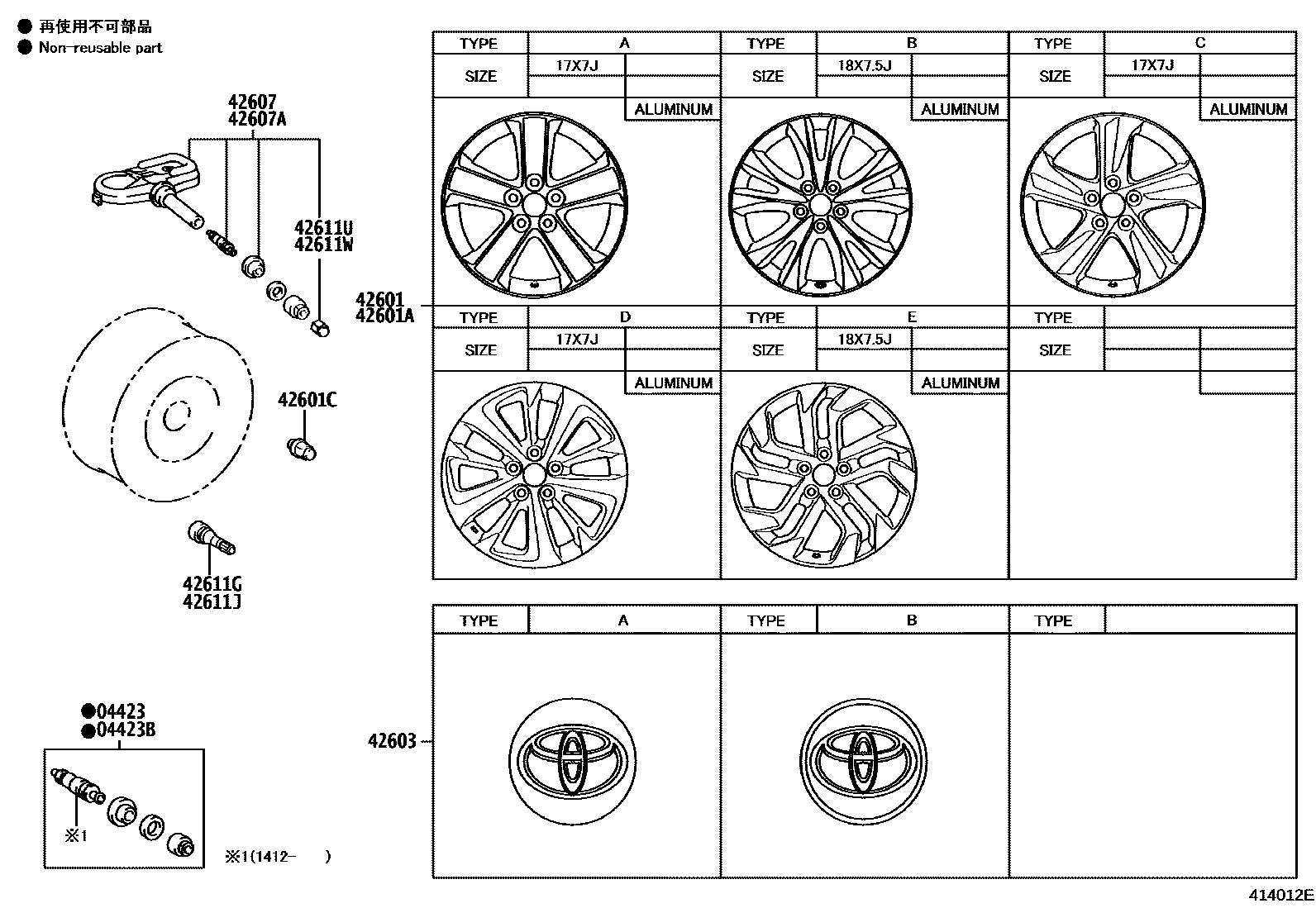

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
17X7J, #,TYPE A:REFER ILLUST.
18X7.5J, #,TYPE B:REFER ILLUST.
17X7J, #,TYPE C:REFER ILLUST.
17X7J, #,TYPE D:REFER ILLUST.
18X7.5J, #,TYPE E:REFER ILLUST.
17X7J,SUV PACKAGE(WITH(HEIGHT CONTROL)),TYPE D:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X7J, #,TYPE A:REFER ILLUST.
18X7.5J, #,TYPE B:REFER ILLUST.
17X7J, #,TYPE C:REFER ILLUST.
17X7J, #,TYPE D:REFER ILLUST.
18X7.5J, #,TYPE E:REFER ILLUST.
17X7J,SUV PACKAGE(WITH(HEIGHT CONTROL)),TYPE D:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE A:REFER ILLUST.
*ALU,(L),T/P B:REF.ILLUST
*ALU,TYPE B:REFER ILLUST.
*ALU,TYPE A:REFER ILLUST.
*ALU,(J),T/P B:REF.ILLUST
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
12 parts on this diagram · 2 diagrams in section
