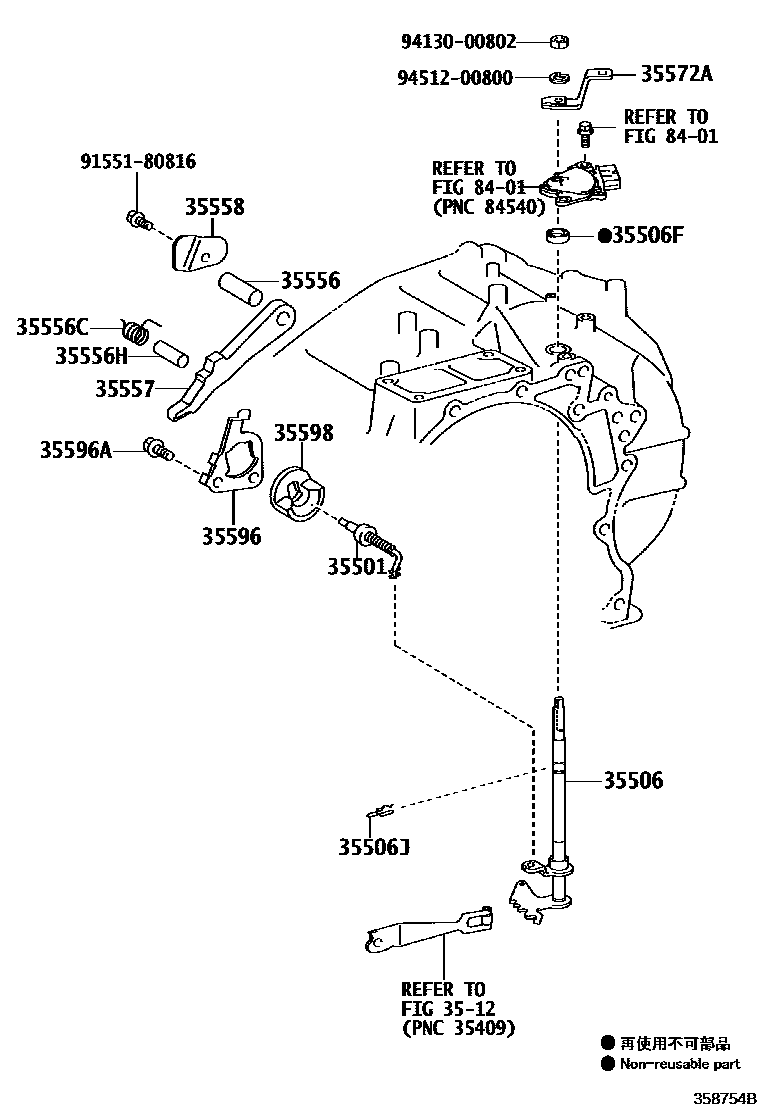

THROTTLE LINK & VALVE LEVER (ATM)

3512

35501ROD SUB-ASSY, PARKING LOCK

main35501-33020iASA44201308-201607

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-33011iASA4#201607

main35506-73011iASA44201308-201607

sub35506-33011

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iASA44201308-201607

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09002iASA44201308-201607

35556SHAFT, PARKING LOCK PAWL

main35556-33010iASA44201308-201607

main35556-33020iASA4#201607

35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)

main90508-21008iASA44201308-201607

35556HSHAFT, PARKING LOCK PAWL

main35556-33030iASA4#201607

main35556-63010iASA44201308-201607

35557PAWL, PARKING LOCK

main35557-73010iASA44201308-201607

35558CLAMP, PAWL SHAFT

main35558-33010iASA44201308-201607

main35558-33020iASA4#201607

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-33020iASA44201308-201607

35596PLATE, PAWL STOPPER

main35596-73010iASA44201308-201607

35596ABOLT (FOR PAWL STOPPER PLATE)

main91551-80816iASA44201308-201607

*8-1.25PX16-13.5

35598SLEEVE, PARKING LOCK

main35598-33010iASA44201308-201607

8401

9155180816

main91551-80816

9413000802

main94130-00802

9451200800

main94512-00800

18 parts on this diagram · 1 diagram in section
