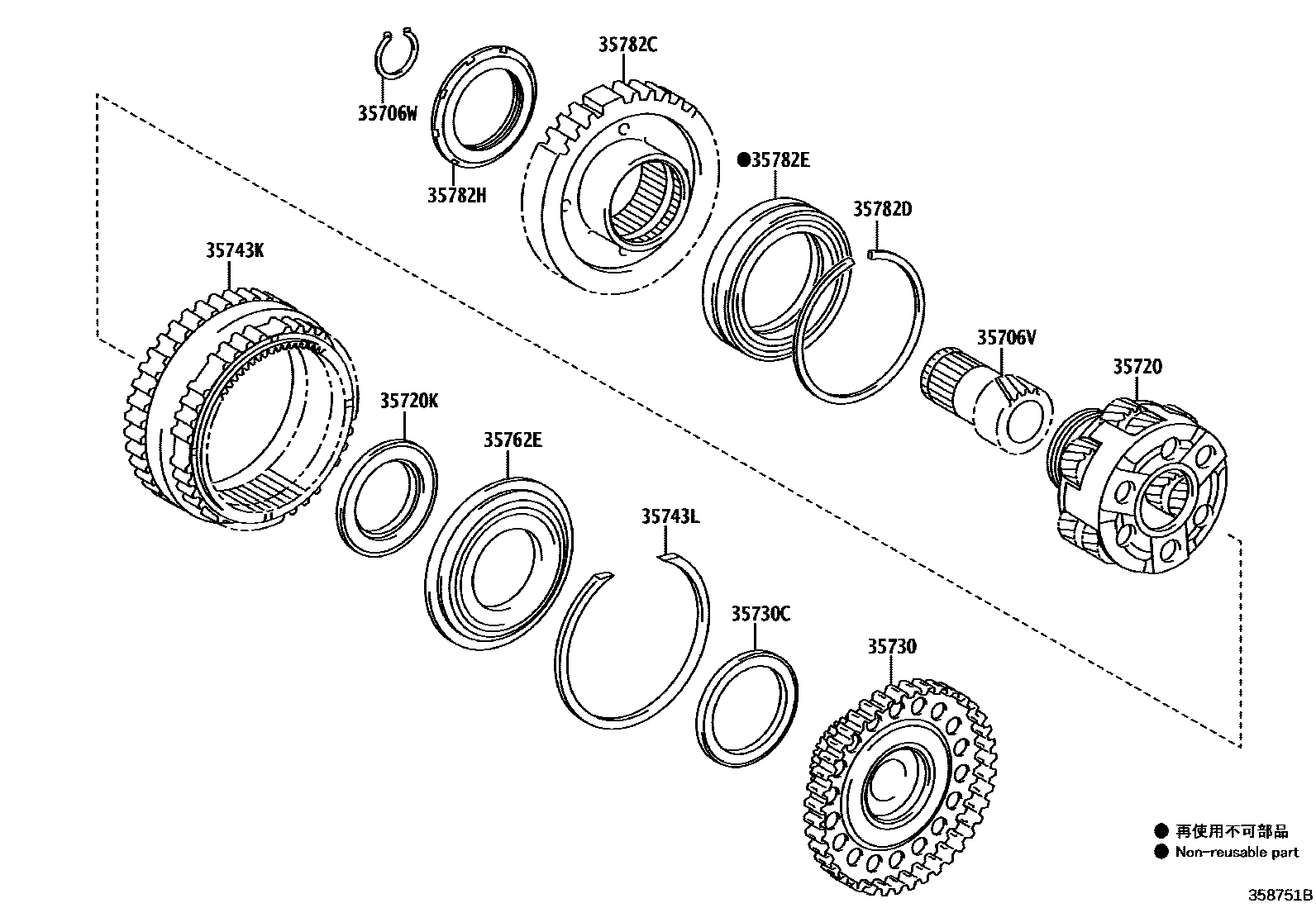

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-73010iASA4#201308-201607

35706WRING, SNAP (FOR PLANETARY SUN GEAR)

main90520-34032iASA4#201308-201607

35720GEAR ASSY, FRONT PLANETARY

main35720-33070iASA4#201607

main35720-73010iASA44201308-201312

sub35720-73020

main35720-73020iASA44201401-201607

sub35720-33070

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-62004iASA44201308-201407

sub90374-62011

main90374-62011iASA44201408-201607

35730GEAR ASSY, REAR PLANETARY SUN

main35730-33030iASA4#201607

main35730-73010iASA44201308-201607

sub35730-33030

35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)

main90374-61001iASA44201308-201607

35743KGEAR, PLANETARY RING

main35743-33040iASA4#201607

main35743-73010iASA44201308-201607

sub35743-33040

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99108iASA44201308-201607

35762EFLANGE, PLANETARY RING GEAR

main35762-73010iASA44201308-201607

35782CGEAR, COUNTER DRIVE

main35782-33040iASA4#201607

main35782-73010iASA44201308-201607

sub35782-33040

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-99110iASA44201308-201402

main90520-99154iASA44201402-201607

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90369-72001iASA44201308-201402

sub90369-72002

main90369-72002iASA44201402-201607

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-60001iASA44201308-201607

13 parts on this diagram · 1 diagram in section
