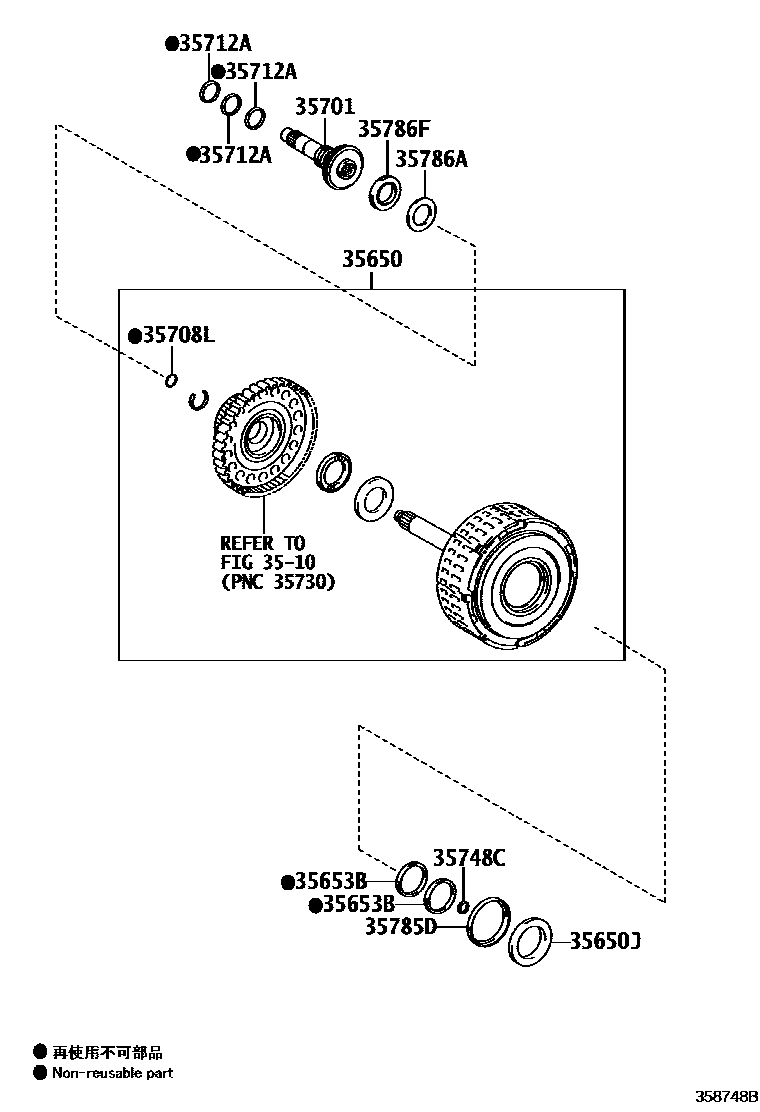

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

3510

35650CLUTCH ASSY, REAR MULTIPLE DISC

main35650-33110iASA4#201607

main35650-73020iASA44201308-201607

sub35650-33090

35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)

main90374-48006iASA44201308-201310

main90374-48009iASA44201310-201607

35653BRING, DIRECT CLUTCH DRUM OIL SEAL

main35653-33010×2iASA4#201607

35701SHAFT SUB-ASSY, INPUT

main35711-33080iASA4#201607

main35711-33090iASA44201308-201607

35708LRING, O (FOR INTERMEDIATE SHAFT)

main90301-11032iASA44201308-201607

35712ARING, INPUT SHAFT OIL SEAL

main35712-33010×3iASA44201308-201605

main35712-33020×3iASA44201606-201607

35748CRING, INTERMEDIATE SHAFT OIL SEAL

main35748-33010iASA44201308-201607

35785DRACE, THRUST BEARING, NO.4

main35785-33020iASA44201308-201310

main35785-48020iASA44201310-201607

35786ARACE, THRUST BEARING, NO.1

main35786-33010iASA44201308-201607

35786FBEARING, THRUST NEEDLE ROLLER

main90374-29005iASA44201308-201312

main90374-29007iASA44201401-201607

11 parts on this diagram · 1 diagram in section
