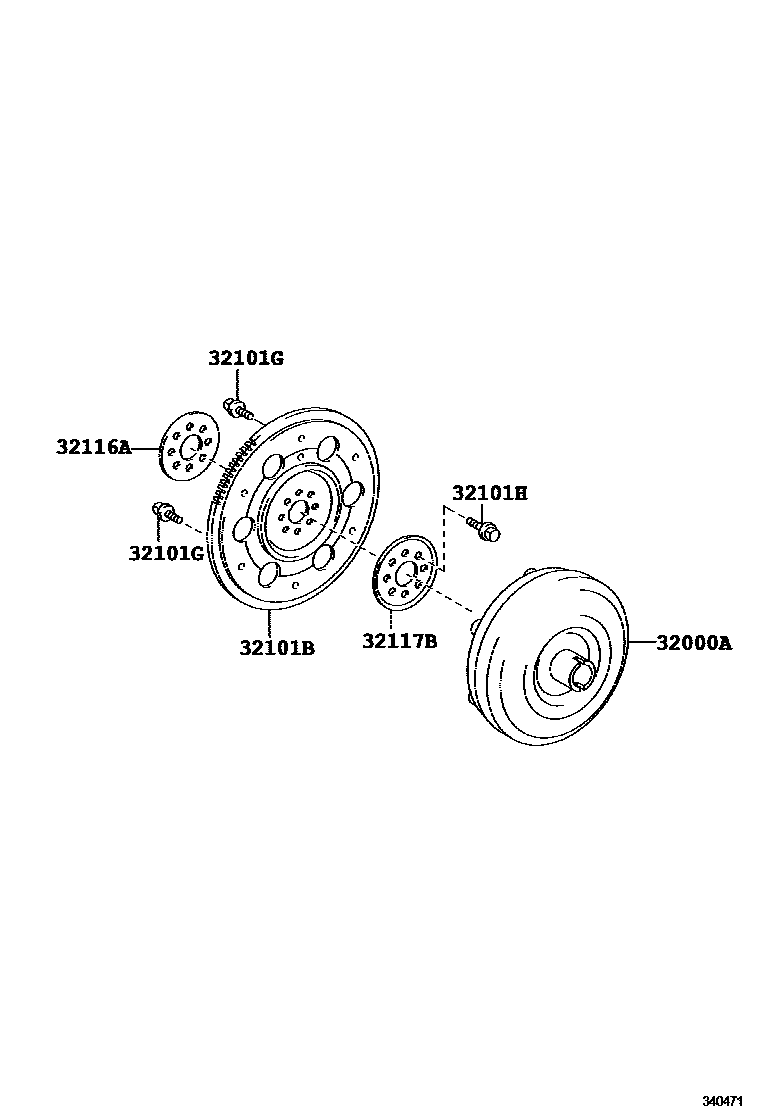

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K111,K111F 0002 1K114,K114F

32000ACONVERTER ASSY, TORQUE

main32000-28180iZSA4#..CVT201308-201607

main32000-28191iZSA4#201607

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0R010iZSA4#..CVT..HTWC201308-201501

sub32101-0R011

main32101-0R010iZSA4#201607

(L)

sub32101-0R011

main32101-0R011iZSA4#..CVT..HTWC201502-201607

main32101-28050iZSA4#201607

(J)

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iZSA4#..CVT..HTWC201308-201607

*9-1.25PX12.4-7.3,BLACK

main90119-09025iZSA4#..CVT..HTWC201308-201607

*9-1.25PX12.4-8.4,SILVER

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZSA4#..CVT..HTWC201308-201607

32116ASPACER, DRIVE PLATE, FRONT

main32116-02020iZSA4#..CVT..HTWC201308-201607

32117BSPACER, DRIVE PLATE, REAR

main32117-02020iZSA4#..CVT..HTWC201308-201607

6 parts on this diagram · 2 diagrams in section
