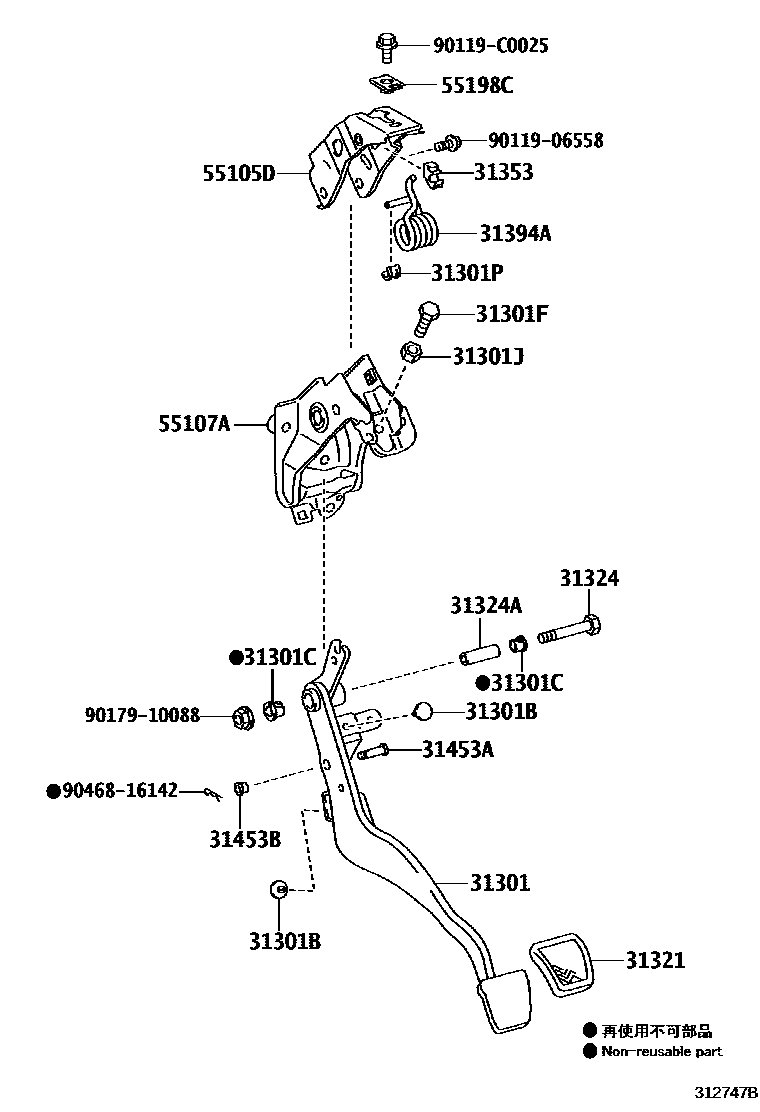

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-42090iZSA42..6F201308-201607

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iZSA42..6F201308-201607

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iZSA42..6F201308-201607

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10055iZSA42..6F201308-201607

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90178-10029iZSA42..6F201308-201607

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iZSA42..6F201308-201607

31321PAD, CLUTCH PEDAL

main31321-0R030iZSA42..6F201501-201607

main31321-42010iZSA42..6F201308-201412

31324SHAFT, CLUTCH PEDAL

main90101-10039iZSA42..6F201308-201607

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iZSA42..6F201308-201607

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iZSA42..6F201308-201607

31394ASPRING, PEDAL W/HOOK

main31394-12070iZSA42..6F201308-201607

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iZSA42..6F201308-201607

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iZSA42..6F201308-201607

55105DBRACKET SUB-ASSY, CLUTCH PEDAL

main55105-42010iZSA42..6F201308-201607

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-42091iZSA42..6F201308-201607

55198CHOLDER, BRAKE AWAY MOUNTING BOLT

main55198-13010iZSA42..6F201308-201607

9011906558

main90119-06558

90119C0025

main90119-C0025

9017910088

main90179-10088

9046816142

main90468-16142

20 parts on this diagram · 2 diagrams in section
