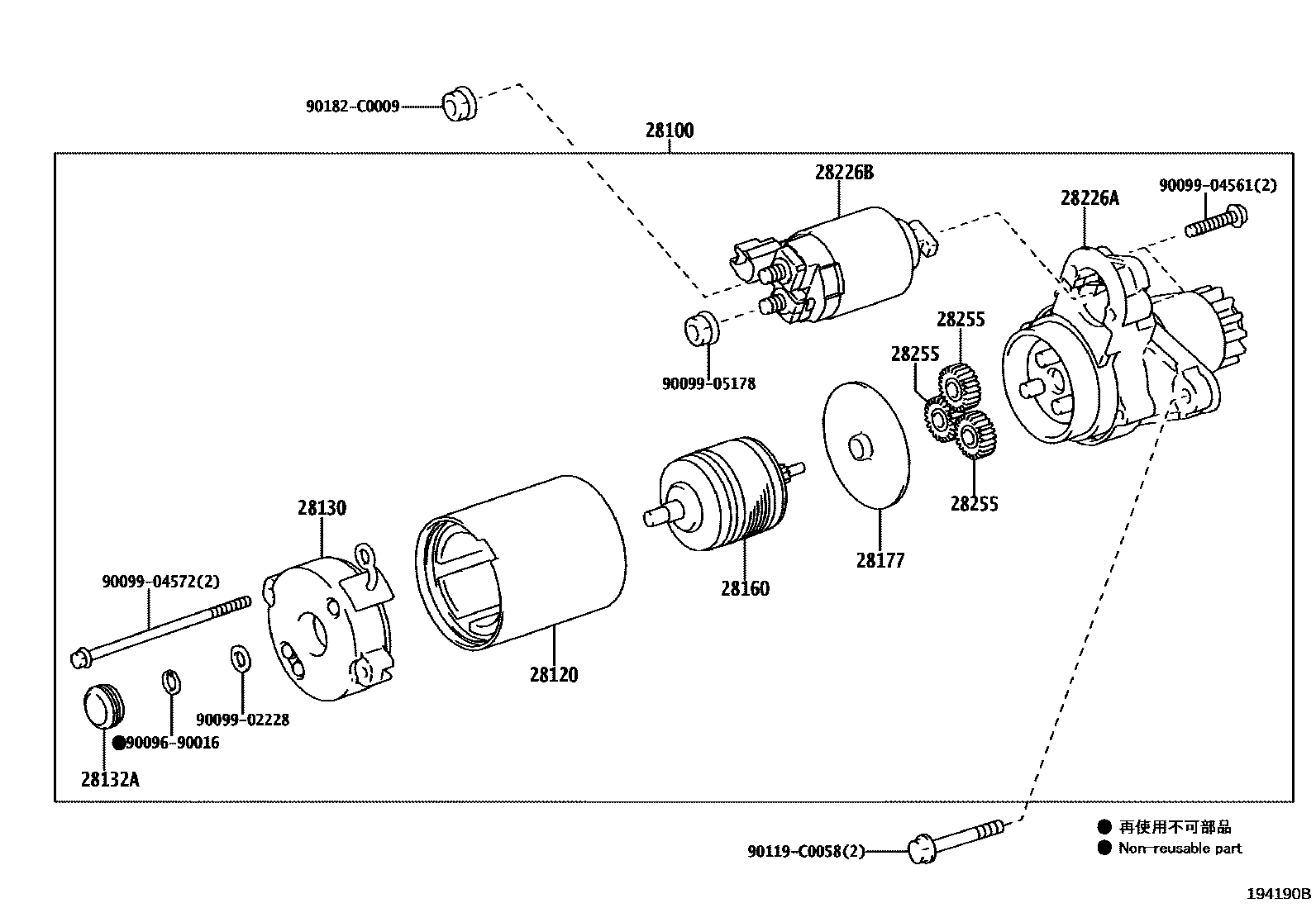

STARTER

0001 112V 1.7KW 0002 112V 1.6KW 0003 112V 1.7KW 0004 112V 1.7KW

28100STARTER ASSY

main28100-0H080i5ARFE..ASA44201308-201607

12V 1.7KW

sub28100-20022

main28100-0T170i6ZRFE..ZSA4#201308-201607

12V 1.6KW

main28100-0T360i6ZRFAE..ZSA4#201607-201903

12V 1.7KW

sub28100-0T361

main28100-0T361i6ZRFAE..ZSA4#201904

12V 1.7KW

main28100-0V060i5ARFE..ASA44201607-201610

12V 1.7KW

main28100-0V130i2ARFE,5ARFE..ASA4#201612

12V 1.7KW

main28100-36110i5ARFE..ASA44201610-201611

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-0H120i5ARFE..ASA44201308-201607

main28120-0T360i6ZRFAE..ZSA4#201607

main28120-0V020i2ARFE..ASA45201607-201610

main28120-28060i6ZRFE..ZSA4#201308-201607

main28120-36110i5ARFE..ASA44201610-201612

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0H120i5ARFE..ASA44201308-201607

main28130-37040i6ZRFE..ZSA4#201308-201607

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i5ARFE,6ZRFE..ASA44,ZSA4#201308-201607

28160ARMATURE ASSY, STARTER

main28160-0S050i2ARFE,6ZRFAE..ASA45,ZSA4#201607-201610

main28160-21060i6ZRFE..ZSA4#201308-201607

main28160-28040i5ARFE..ASA44201308-201607

main28160-36110i5ARFE..ASA44201610-201612

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i5ARFE,6ZRFE..ASA44,ZSA4#201308-201607

28226ASTARTER KIT, MOTOR TERMINAL

main28226-28041i5ARFE..ASA44201308-201607

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i6ZRFE..ZSA4#201308-201607

main28226-28051i5ARFE..ASA44201308-201607

main28226-31100i5ARFE..ASA44201607-201610

main28226-36110i2ARFE,5ARFE..ASA4#201610

main28226-37100i6ZRFAE..ZSA4#201607

28255GEAR, PLANET

main28255-20020i5ARFE..ASA44201308-201607

main28255-28040i6ZRFE..ZSA4#201308-201607

9009690016

main90096-90016

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

90119C0058

main90119-C0058

90182C0009

main90182-C0009

16 parts on this diagram · 4 diagrams in section
