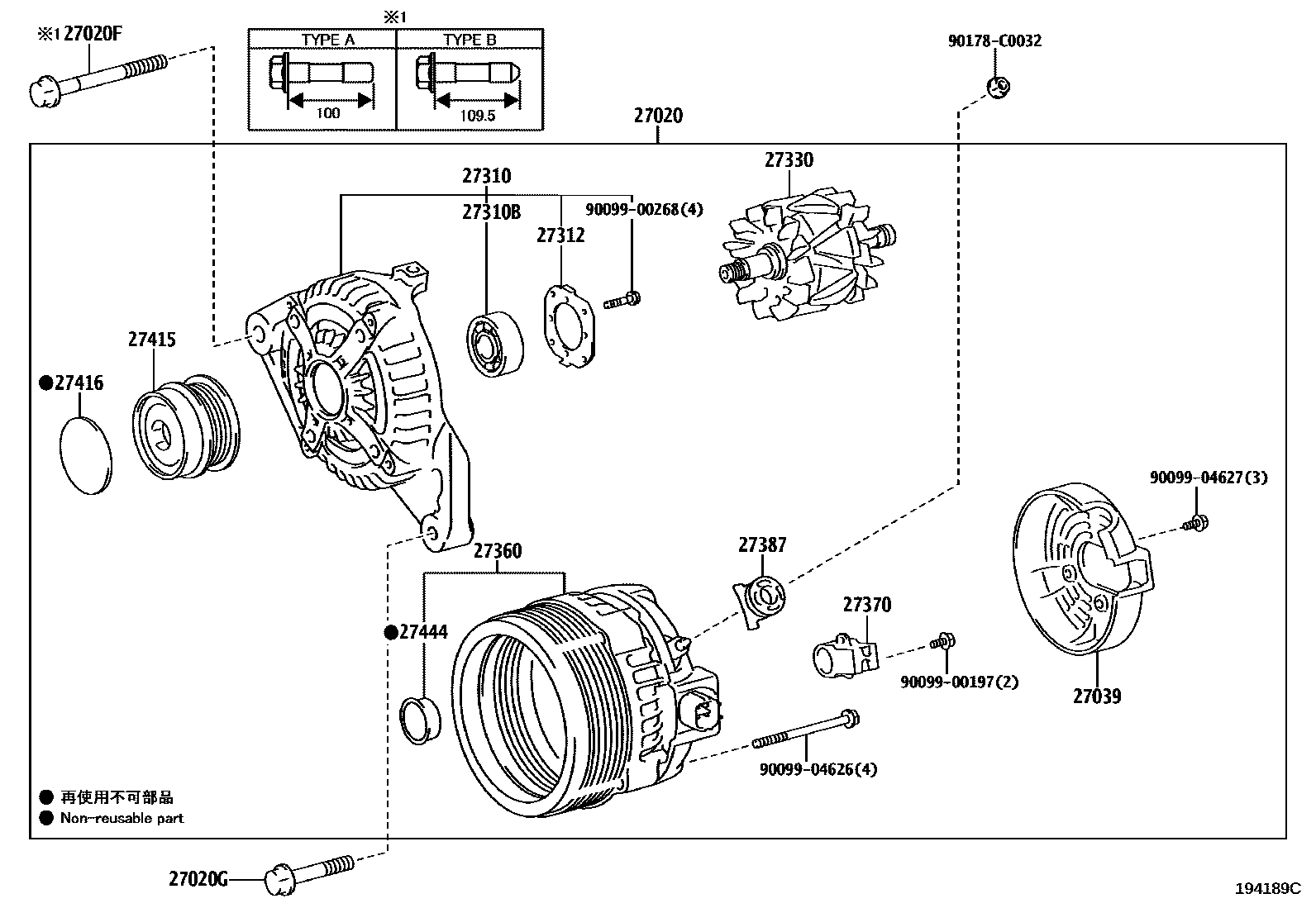

ALTERNATOR

0001 112V 100A 0002 112V 100A

27020ALTERNATOR ASSY

main27060-0T280i6ZRFE..ZSA4#201308-201607

12V 100A

main27060-0T380i6ZRFAE..ZSA4#201607

12V 100A

main27060-0V150i5ARFE..ASA44201308-201607

12V 100A

main27060-0V290i2ARFE,5ARFE..ASA4#201607

12V 100A

27020FBOLT, NO.1(FOR ALTERNATOR)

main90105-C0160i5ARFE..ASA44201308-201607

TYPE A

main90105-C0183i2ARFE,5ARFE..ASA4#201607

TYPE B

27020GBOLT, NO.2(FOR ALTERNATOR)

main90105-C0202i5ARFE..ASA44201308-201607

27039COVER, ALTERNATOR REAR END

main27039-0C180i2ARFE,5ARFE,6ZRFAE..ASA4#,ZSA4#201607

main27039-0T260i5ARFE,6ZRFE..ASA44,ZSA4#201308-201607

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0T260i6ZRFAE..ZSA4#201308-201607

main27310-0V140i5ARFE..ASA44201308-201607

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10042i5ARFE,6ZRFE..ASA44,ZSA4#201308-201607

27312PLATE, RETAINER

main27312-0M070i5ARFE,6ZRFE..ASA44,ZSA4#201308-201607

27330ROTOR ASSY, ALTERNATOR

main27330-0T260i2ARFE,5ARFE,6ZRFAE..ASA4#,ZSA4#201308-201607

27360COIL ASSY, ALTERNATOR

main27360-0T260i6ZRFE..ZSA4#201308-201607

main27360-0T430i6ZRFAE..ZSA4#201607

main27360-0V140i5ARFE..ASA44201308-201607

main27360-0V360i2ARFE,5ARFE..ASA4#201607

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0T030i5ARFE,6ZRFE..ASA44,ZSA4#201308-201607

27387INSULATOR, TERMINAL

main27387-0H110i2ARFE,5ARFE,6ZRFAE..ASA4#,ZSA4#201308-201607

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0T060i6ZRFE..ZSA4#201308-201607

main27415-0V040i2ARFE,5ARFE..ASA4#201607

main27415-0W021i5ARFE..ASA44201308-201607

27416CAP, ALTERNATOR PULLEY

main27416-0W050i5ARFE,6ZRFE..ASA44,ZSA4#201308-201607

27444PACKING, ALTERNATOR BEARING COVER

main27444-0Y180i5ARFE,6ZRFE..ASA44,ZSA4#201308-201607

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

90178C0032

main90178-C0032

19 parts on this diagram · 2 diagrams in section
