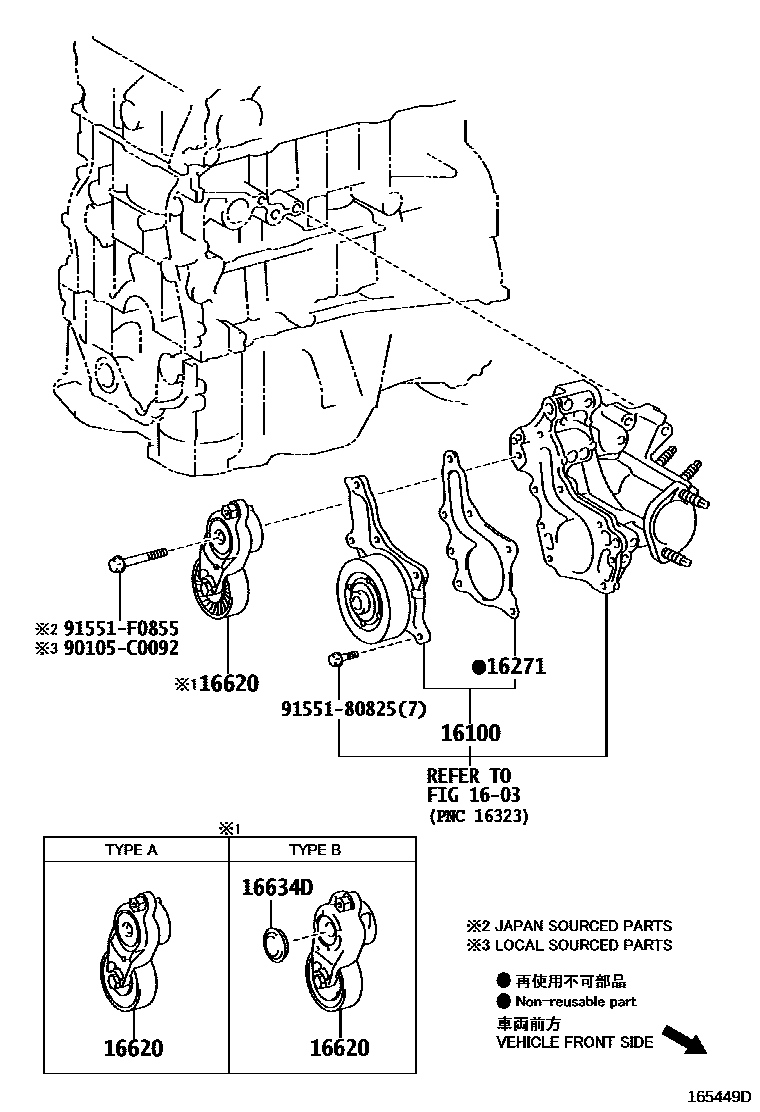

WATER PUMP

0001 1 0002 1 0003 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-09550i6ZRFE..ZSA4#201308-201607

main16100-09600i5ARFE..ASA44201308-201607

sub16100-09601

main16100-09650i6ZRFAE..ZSA4#201607

main16100-39515i2ARFE..ASA45201901

sub16100-39516

16271GASKET, WATER PUMP

main16271-36010i5ARFE..ASA44201308-201607

main16271-37010i6ZRFE..ZSA4#201308-201607

main16271-37030i6ZRFAE..ZSA4#201607

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0T030i6ZRFAE..ZSA4#201607

main16620-0V041i5ARFE..ASA44201308-201401

TYPE A:REFER ILLUST.

sub16620-0V042

main16620-0V042i5ARFE..ASA44201401-201607

TYPE A:REFER ILLUST.

main16620-0V050i5ARFE..ASA44201410-201508

TYPE B:REFER ILLUST.

sub16620-0V051

main16620-0V051i5ARFE..ASA44201509-201607

TYPE B:REFER ILLUST.

main16620-36013i2ARFE,5ARFE..ASA4#201801

16634DCOVER, DUST

main16628-0V010i5ARFE..ASA44201410-201607

90105C0092

main90105-C0092

9155180825

main91551-80825

91551F0855

main91551-F0855

8 parts on this diagram · 3 diagrams in section
